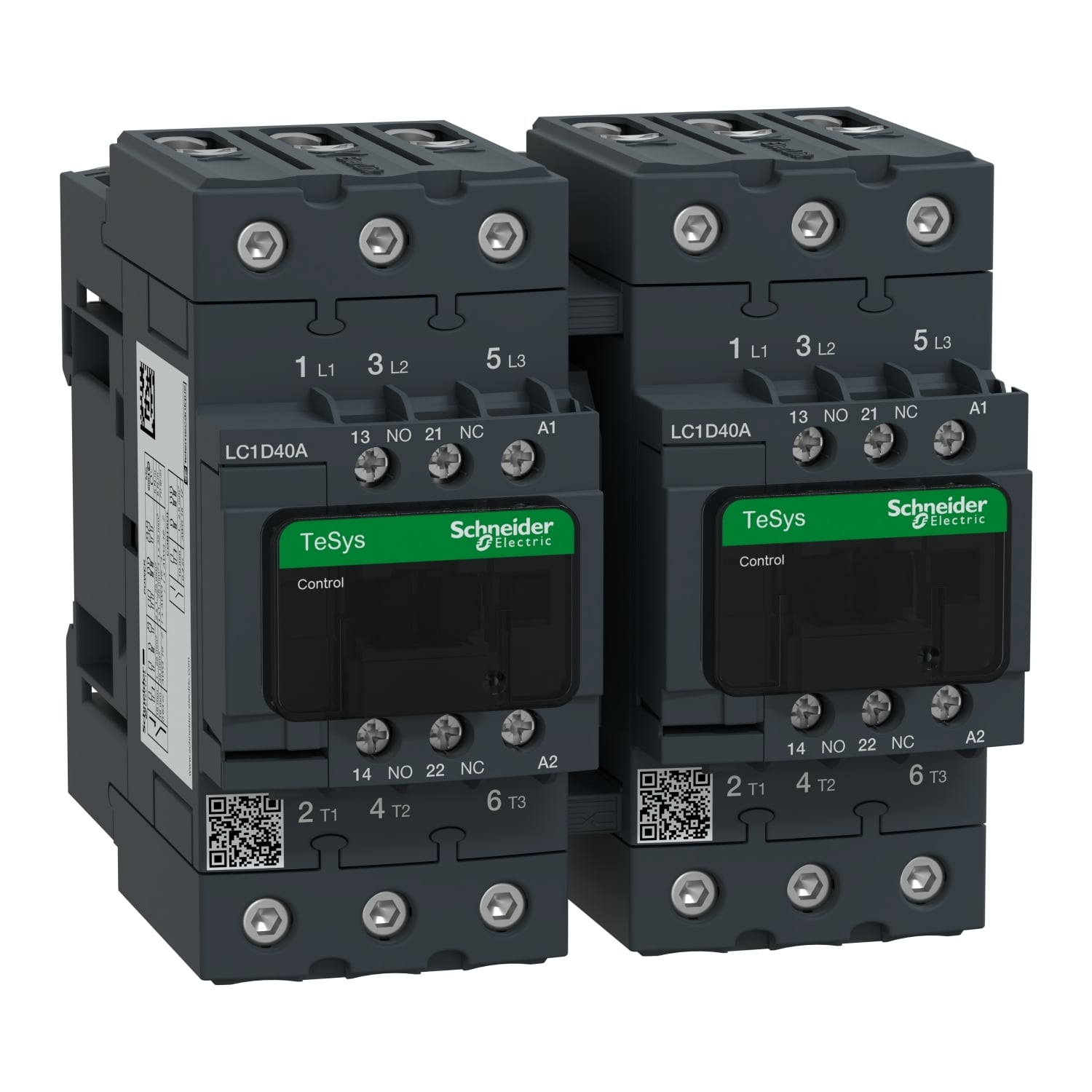

LC2D40AF7 TeSys D LC1D D-Line IEC Contactor With Protective Cover, 110 VAC V Coil, 60 A, 3NO Contact, 3 Poles
- MFR:
- Schneider Electric
- MFR #:
- LC2D40AF7
- Item #:
- 492979
LC2D40AF7 TeSys D LC1D D-Line IEC Contactor With Protective Cover, 110 VAC V Coil, 60 A, 3NO Contact, 3 Poles
- MFR #:
- LC2D40AF7
- Item #:
- 492979
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
TeSys Deca reversing contactor, 3 poles (3NO), for motor control applications up to 40A/590V AC-3 (18.5kW@400V). Rated 40A AC-3 18.5kW@400V, it includes a 110V 50/60Hz AC coil, 2NO+2NC aux contacts, a mechanical interlock. It provides 110V 50/60Hz AC coils, 2NO+2NC built-in auxiliary contacts (NC mirror contacts), power connection by EverLink BTR screw connectors, control by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60C, it procures high reliability and durability. Compact (119mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). Assembled with mechanical interlock and pre-wired reversing circuit. Clear separation between power and control circuits, easy front access to coil and auxiliary contacts connections. Equipped with a 110V AC coil that can be supplied at 50Hz or 60Hz. Provides 4 built-in auxiliary contacts 2NO + 2NC, NC contacts are mirror certified suitable to be included in the control of safety systems. High electrical durability, guaranteed for 1.6 million cycles at 40A AC-3 440V, for demanding motor switching applications. Robust design with high making and breaking capacities up to 20 In. Power connections by EverLink BTR screw terminals providing constant tightening pressure.
Manuals and Documentation
| Catalog Number | LC2D40AF7 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| Application | Resistive load;motor control |
| Coil Voltage | 110 V AC 50/60 Hz |
| Contact Configuration | 1 NO + 1 NC |
| Standard | UL;CSA;RINA;GOST;CCC;DNV;LROS (Lloyds register of shipping);GL;BV;UKCA |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=8695385&lang=en-us |
| GTIN | 03389119409490 |
| Item Type | Reversing contactor;LC2D |
| Cross Reference Products | Klockner DIUL1AM11 110V/50HZ|Klockner DIUL1AM11 110V/60HZ|Rockwell 104C37KD02|Rockwell 104C37KD22|Schneider LC2D4011F5|Schneider LC2D4011F6|Schneider LC2D4011F7|Schneider LC2D40F5|Schneider LC2D40F6|Schneider LC2D40F7 |
