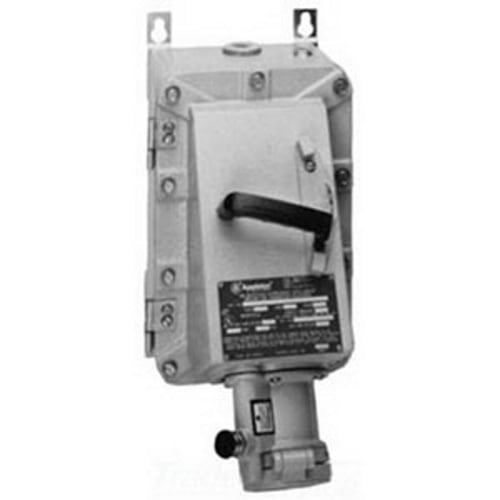

EBR6034EH60 Receptacle With EHD 60 A 3-Pole Circuit Breaker and Mounting Box, 480 V AC, 60 A, 4 Poles, 3 Wires
- MFR:
- Appleton Electric
- MFR #:
- EBR6034EH60
- UPC:
- 781381860130
- Item #:
- 489903
EBR6034EH60 Receptacle With EHD 60 A 3-Pole Circuit Breaker and Mounting Box, 480 V AC, 60 A, 4 Poles, 3 Wires
- MFR #:
- EBR6034EH60
- UPC:
- 781381860130
- Item #:
- 489903
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$10,266.05
each
EBR Series Receptacle With Mounting Box, Number Of Poles: 4, Number Of Wires: 3, Amperage Rating: 60 AMP, Voltage Rating: 480 VAC, Phase: 3 PH, Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum, Nema Rating: NEMA 3, 3R, 4, 4X, 7CD
Manuals and Documentation
| Catalog Number | EBR6034EH60 |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 60 |
| Application | For ACP And CPH Plugs |
| Connection | Pressure Wire Terminal |
| Material | Copperfree (4/10 Of 1 PCT Maximum) Aluminum |
| Mounting | Surface |
| NEMA Rating | 3, 3R, 4, 4X |
| Number of Poles | 4 |
| Number of Wires | 3 |
| Phase | 3 |
| Special Features | Includes 3-pole 60 AMP EHD circuit breaker; Interlocked circuit breaker provides interlocked connect and disconnect operation as well as short circuit and thermal time delay overload protection; Explosionproof, dust-Ignitionproof; Weatherproof spring cover; Energized receptacle contacts deeply recessed to reduce danger of accidental touching; Spring door keeps dust out of receptacle when plug is not in use, screw cap also supplied; Brass contacts exert constant pressure along entire contact surface and provide superior electrical contact; Contacts have beryllium copper wire springs; Insulators provide superior dielectric and mechanical strength and lowest arc tracking; 1-1/2 NPT tapped conduit openings; one top to bottom; Fiber glass reinforced polyester insulating blocks; For lighting systems, conveyors, heaters, motor-generator sets, air conditioners, compressors, pumps; Flip cover suitable for NEMA 3, 3R only; NEMA 4 rating maintained with Appleton NEMA 4 plug installed |
| Standard | Class I, Division 1 And 2, Groups B, C, D; Class II, Division 1 And 2, Groups F, G; Class III; UL 1010 (UL 1203), UL 894, UL 1682, UL 1686; UL Listed: E79132, E10784, E313360 |
| UPC | 781381860130 |
| GTIN | 00781381860130 |
| Item Type | EBR Series Receptacle With Mounting Box |
| Voltage Rating | 480 |
