Discontinued

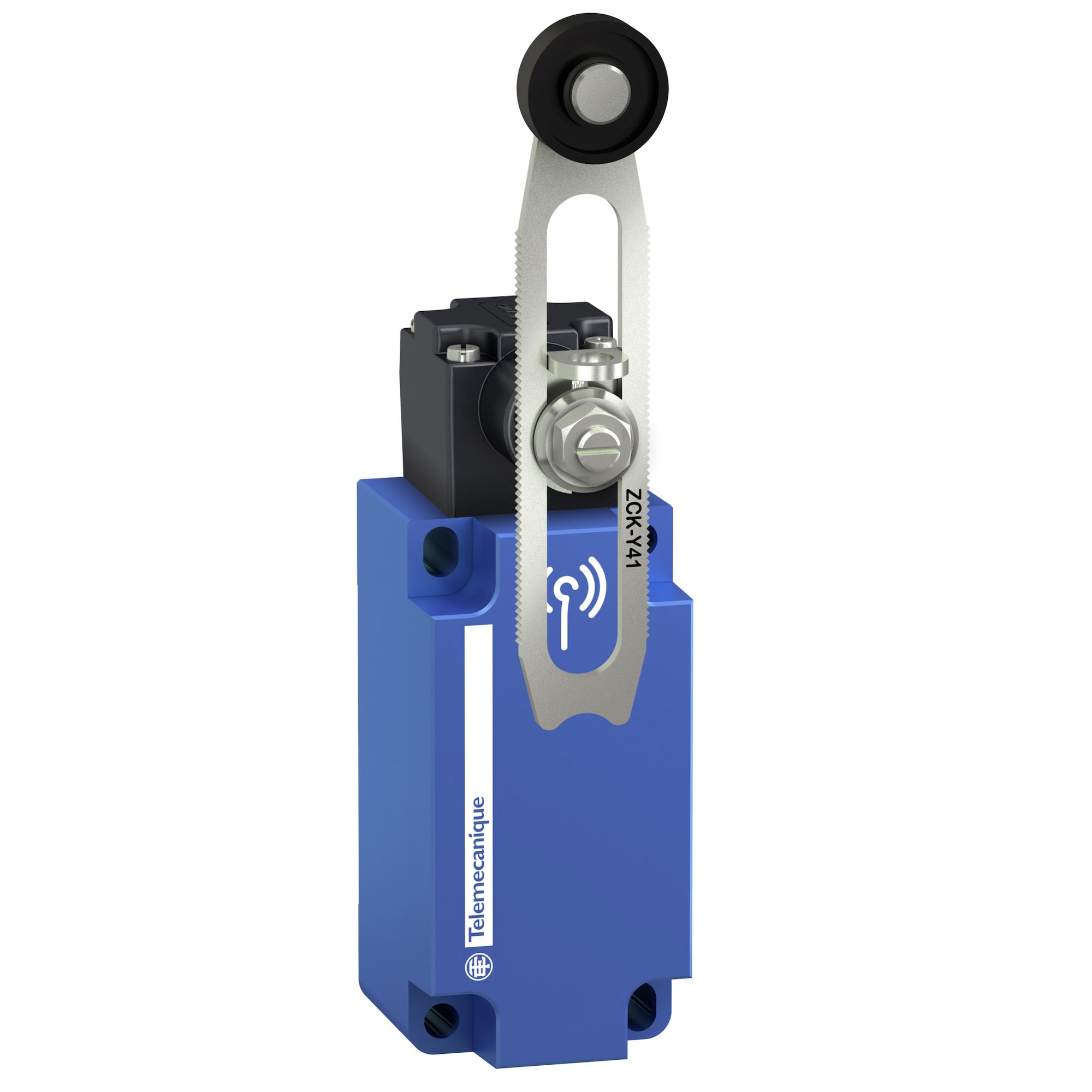

XCKW141 Fixed Wireless Limit Switch, Plastic Roller
- MFR:
- Schneider Electric
- MFR #:
- XCKW141
- Item #:
- 489474
Discontinued
XCKW141 Fixed Wireless Limit Switch, Plastic Roller
- MFR #:
- XCKW141
- Item #:
- 489474
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Wireless limit switch XCKW - adjustable plastic roller lever
Manuals and Documentation
| Catalog Number | XCKW141 |
| Manufacturer | Schneider Electric |
| Brand | Schneider Electric |
| Country of Origin | France |
| Made in USA | No |
| Enclosure | PLASTIC |
| Mounting | Screw |
| Special Features | ZIGBEE GREEN POWER 2.4 GHZ IEEE 802.15.4 |
| Standard | +/- 10 MM 2-11 HZ)IEC 60068-2-6-25 GN 10-500 HZ)IEC 60068-2-6,1999/5/EC - R&TTE DIRECTIVE-2004/108/EC - ELECTROMAGNETIC COMPATIBILITY,50 GN 11 MS IEC 60068-2-27,EN/IEC 60947-5-1-EN/IEC 60947-1,IC RSS-FCC RCM,IK05 EN 50102,IP67 IEC 60529-IP66 IEC 60529,ZIGBEE GREEN POWER 2.4 GHZ IEEE 802.15.4,RADIATED EMISSION-IMMUNITY FOR INDUSTRIAL ENVIRONMENTS-SUSCEPTIBILITY TO ELECTROMAGNETIC FIELDS 3 V/M 80...2700 MHZ, DISTANCE = 20 M)-SUSCEPTIBILITY TO ELECTROMAGNETIC FIELDS 10 V/M 80...2000 MHZ)-ELECTROSTATIC DISCHARGE IMMUNITY TEST 6 KV ON CONTACT (ON METAL PARTS))-ELECTROSTATIC DISCHARGE IMMUNITY TEST 8 KV IN FREE AIR (IN INSULATING PARTS)) |
| GTIN | 03389119628563 |
| Item Type | LATERAL APPROACH, 1 OR 2 PROGRAMMABLE DIRECTION,ROTARY HEAD,SPRING RETURN ROLLER LEVER THERMOPLASTIC VARIABLE LENGTH,WIRELESS LIMIT SWITCH |
| Operating Temperature | -25-55 A Degrees C |
