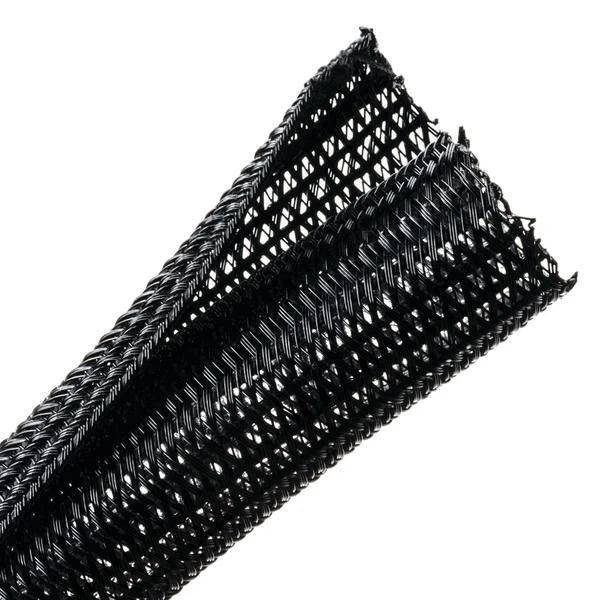

170-03038 Type BSPSW340 Split Wrap Braided Sleeving, 3/4 in Dia x 50 ft L Sleeve, Polyester, -94 to 257 deg F, Black
- MFR:
- HellermannTyton
- MFR #:
- 170-03038
- UPC:
- 089306331209
- Item #:
- 4876
170-03038 Type BSPSW340 Split Wrap Braided Sleeving, 3/4 in Dia x 50 ft L Sleeve, Polyester, -94 to 257 deg F, Black
- MFR #:
- 170-03038
- UPC:
- 089306331209
- Item #:
- 4876
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$149.19
each
Center-slit overlapping design allows quick and easy access to the wires and cables for future maintenance or inspection without disassembly.
Manuals and Documentation
Features
- Center-slit overlapping design allows quick and easy access to the wires and cables for future maintenance or inspection without disassembly
- Flexible material allows it to easily wrap around a variety of component shapes and sizes, making it easier to use than slit-loom tubing or spiral-wrap materials
- A unique weave pattern provides increased coverage and greater resistance to abrasion, dust and debris
- Overlapping design enhances flexibility, allowing it to shift and bend without exposing wire and cables
| Manufacturer Part Number | 170-03038 |
| Brand | HellermannTyton |
| Manufacturer | HellermannTyton |
| UPC | 089306331209 |
| Country Of Origin | US |
| Color | Black |
| Material | Polyester |
| Temperature Rating | -94 to 257 deg F |
| Type | Type BSPSW340 Split Wrap |
| Alternative Part Number | 11196247 |
| Manufacturer Item Status | Active |
| Country | USA/Canada |
| Standards Approvals | ARRA Compliant | Buy American Act Compliant | RoHS Compliant | REACH Compliant | cULus Recognized |
| Application | Split wrap braided sleeving is a semi-rigid material that self wraps around the bundled wire assembly without requiring any additional fasteners. The lateral split allows tube to open and then closes with a 25% overlap to protect the wire assemblies. The Split Wrap braided sleeving is ideal for applications where installation, flexibility and future accessibility are primary concern. Split wrap braided sleeving retains shape and rigidity but provides greater flexibility than spiralwrap or convoluted tubing. Split wrap braided sleeving is not expandable. |
| Flammability Rating | UL 94V-0 |
| Sleeve Diameter | 3/4 in |
| Sleeve Length | 50 ft |
