SQUARE D

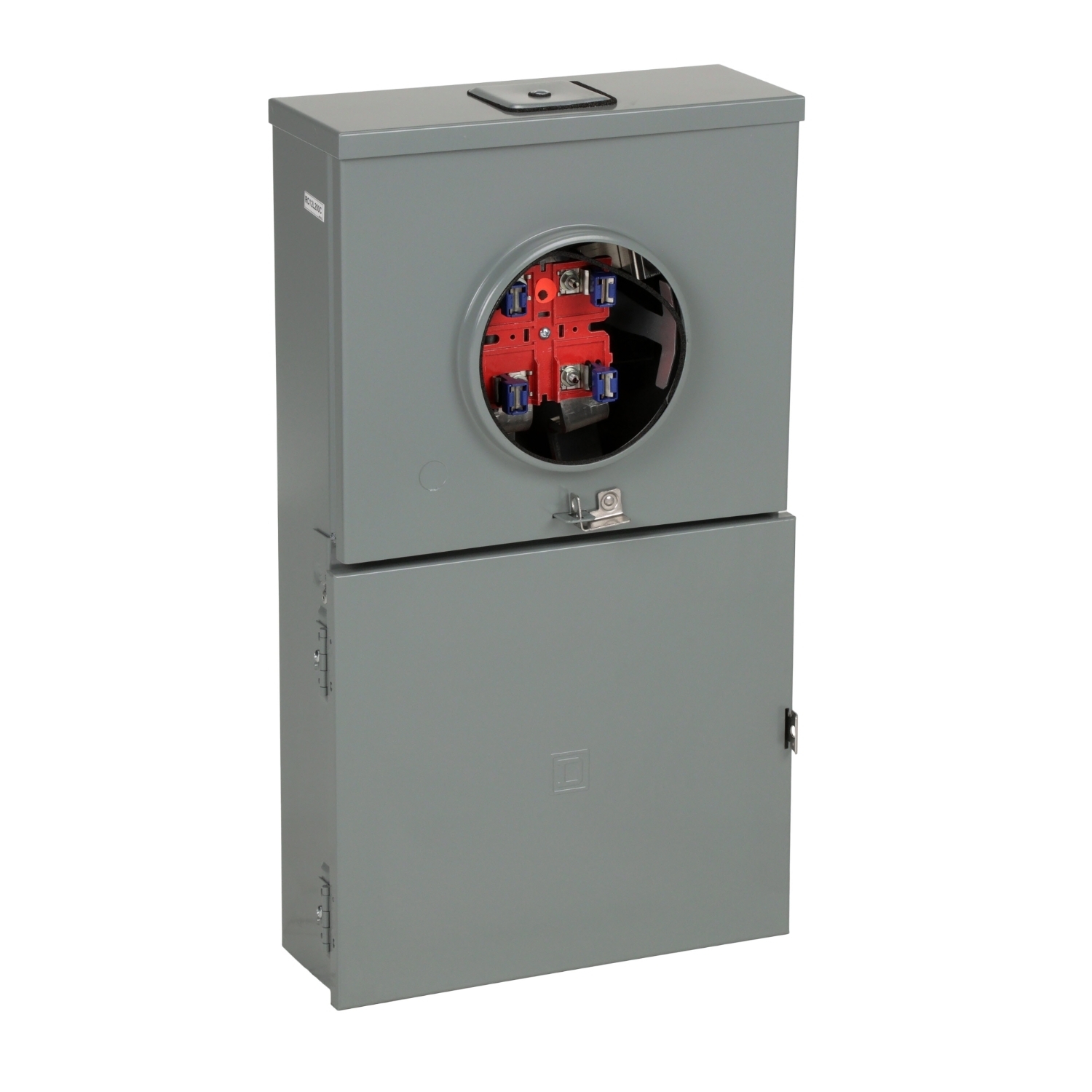

RC12L200C Homeline Meter Main, CSED, 200 Amp, 1 Phase, Ringless, No Bypass, OH, UG, Surface, max 12 Spaces

MFR:
Schneider Electric
MFR #:
RC12L200C
UPC:
785901863984
Item #:
487028

Availability

Location Available Qty
Available Available to Order
$1,650.45 each

The Square D Load Centers and Combination Service Entrance Devices, RC12L200C. Enclosure mounting style performed as surface mount or convertible to semi-flush (use appropriate flange kit). This HOM Ringless Meter Mains meets Federal Specification W-P-115c as Type 1, Class 2, are UL Listed, suitable only for use as service equipment. In interior main lug (service disconnects field installed). Meter Socket has no By-pass. Designed for 3 wire 120/240 VAC single phase systems. Surgebreaker has a NEMA 2 indoor rating. This surge protection device is rated at 50 kA per phase. This surge protection device has a height of 3.98 inches, a width of 1.97 inches and depth of 2.60 inches. This surge protection device is CSA certified

Manuals and Documentation
Catalog Number RC12L200C
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin United States
Made in USA Yes
Bypass Type No Bypass
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=361697&lang=en-us
UPC 785901863984
GTIN 00785901863984
Width 14.89
Width UOM Inch
Height 26.16
Height UOM Inch
Depth 6.1 IN
