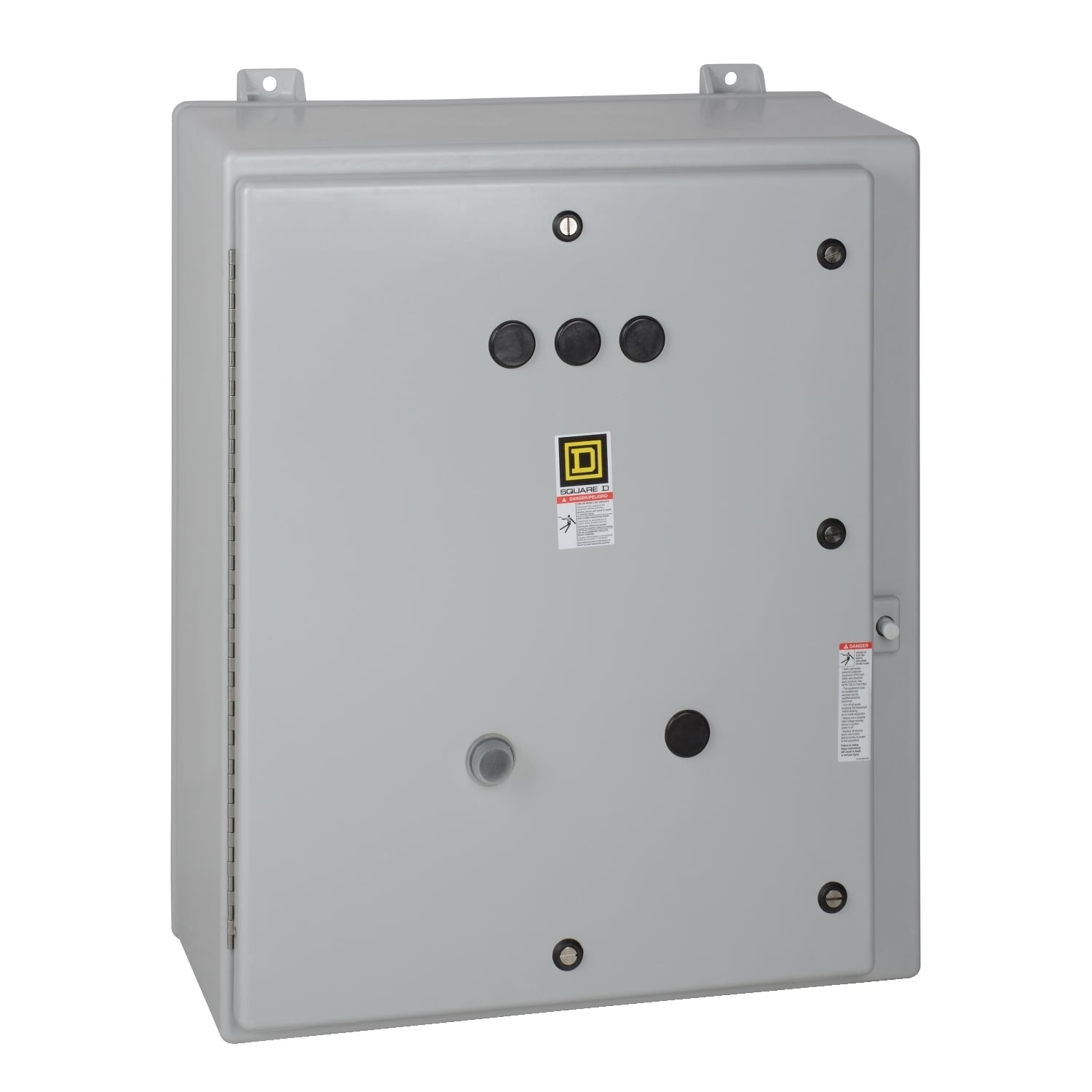

8539SDA53V02S Type S Combination Magnetic Starter With Mag-Gard Electronic Motor Circuit Protector, 110 VAC at 50 Hz/120 VAC at 60 Hz V Coil, 3 Poles, NEMA 12 Enclosure
- MFR:
- Schneider Electric
- MFR #:
- 8539SDA53V02S
- UPC:
- 785901519782
- Item #:
- 486942
8539SDA53V02S Type S Combination Magnetic Starter With Mag-Gard Electronic Motor Circuit Protector, 110 VAC at 50 Hz/120 VAC at 60 Hz V Coil, 3 Poles, NEMA 12 Enclosure
- MFR #:
- 8539SDA53V02S
- UPC:
- 785901519782
- Item #:
- 486942
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Type S nonreversing thermal magnetic circuit breaker combination starters are for motor control applications. Combination starters combine the requirements for motor overload and short circuit protection into one package. NEMA Size 2 starters have ratings of 7.5 to 10 HP at 208 VAC, 10 HP at 240 VAC and 20-25 HP at 480 VAC and 25 HP at 600 VAC three phase. Combination starter has a HHL36050M72 circuit breaker. This 3 pole starter is for three phase applications. Combination starters are available with a wide variety of replaceable coil voltages. Starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. This nonreversing NEMA combination starter has a melting alloy type overload relay which uses Type B thermal units to sense over current conditions. A painted sheet steel NEMA 3R/12 Dusttight and driptight industrial enclosure is used to protect this starter. Enclosure is 27.75 inches tall, 10.50 inches wide and 9.59 inches deep. A wide variety of accessories are available for Type S starters. Type S combination starters are UL listed and CSA certified.
Manuals and Documentation
| Catalog Number | 8539SDA53V02S |
| Manufacturer | Schneider Electric |
| Brand | SQUARE D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| UPC | 785901519782 |
| GTIN | 00785901519782 |
