Mersen

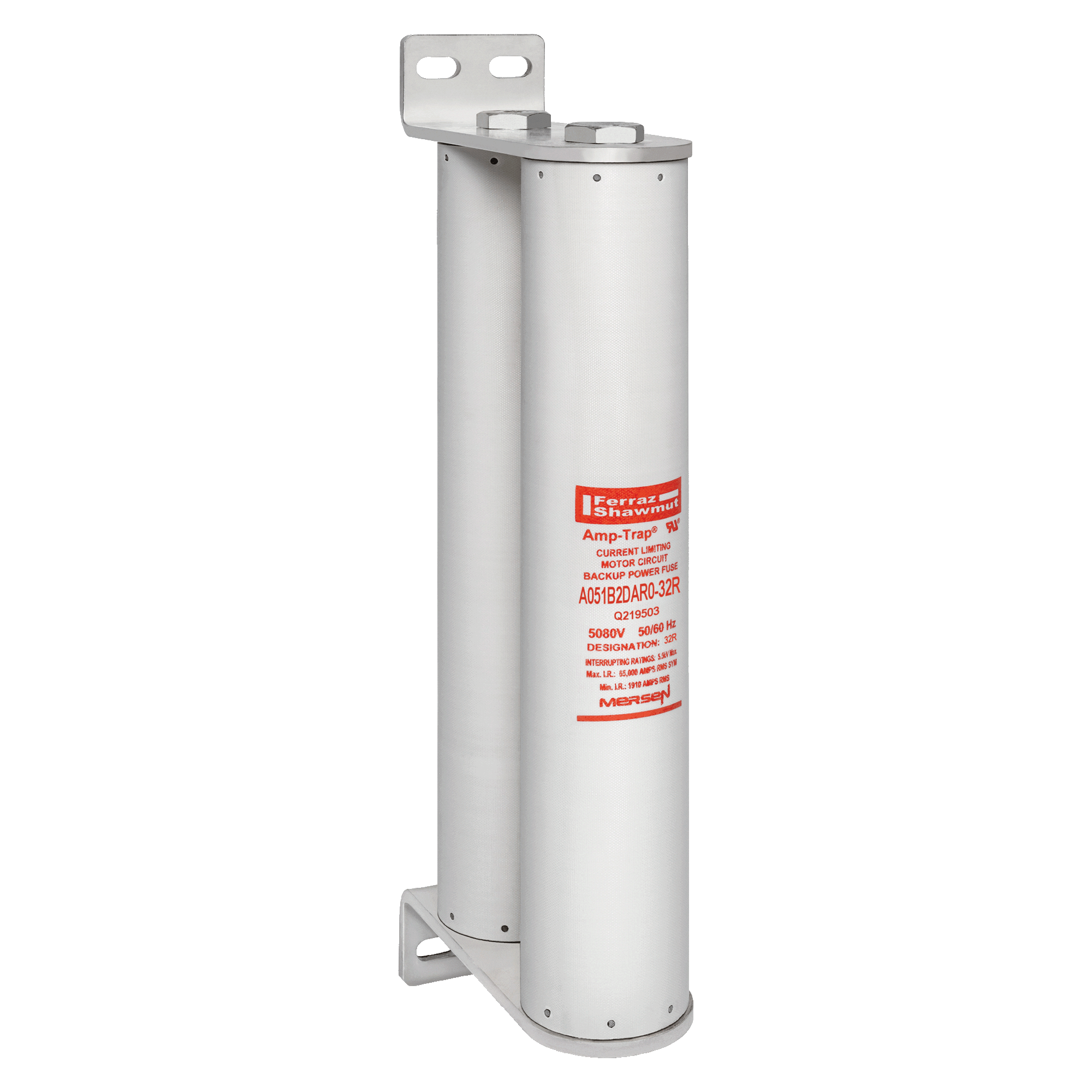

A051B2DAR0-32R Amp-Trap 2-Barrel Back Up Current-Limiting Medium Voltage Motor Protection Fuse, 32 A, 5.08 kV AC, 65 kA Interrupt, Class: R

MFR:
Mersen
MFR #:
A051B2DAR0-32R
UPC:
782001200015
Item #:
484860

Availability

Location Available Qty
Available Available to Order
$10,398.74 each

Back-Up R-Rated Medium Voltage Fuse 5080VAC 32R Mounting: Bolted Style: DAR0 Visual Indicator Amp-Trap

Manuals and Documentation
Catalog Number A051B2DAR0-32R
Manufacturer Mersen
Brand Mersen
Country of Origin Mexico
Made in USA No
Amperage Rating 32
Application Short circuit protection of medium voltage motors and motor controllers
Connection Bolted
Interrupt Rating 65 KA
Material bolt-on
Mounting Bolt
Response Time R-Rated
Special Features The Amp-Trap Bolt-in series are UL Recognized Bolt-in mounting for direct connection to bus or terminals Current-limiting for superior equipment protection Metal embossed catalog number and manufacturing date for lasting identification Blown-fuse indicator to give positive identification of open fuse Amp-Trap: 3" Barrel 2 lb tripped force - 0.50 Inch
Standard UL Recognized File E93367
UPC 782001200015
GTIN 00782001200015
Item Type Back-Up R-Rated Bolt-On Fuses for Motor Protection
Size 19.25 x 3 x 7.63
Type of Indicators Visual Indicator
Voltage Rating 5080
