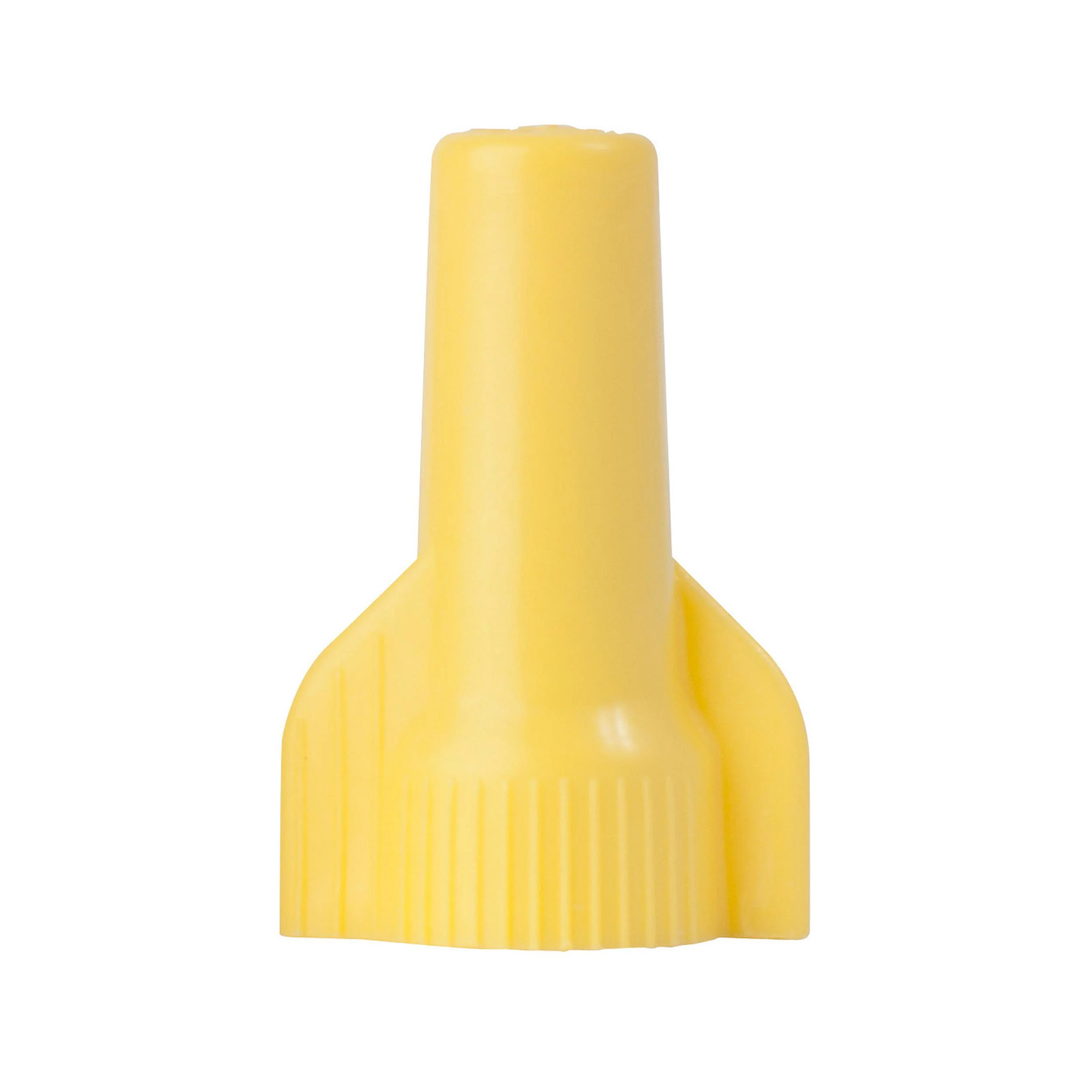

13-084 84 Series High Leverage Twist-On Wire Connector, Winged Shell, Square Spring, 22 to 10 AWG Wire Aluminum/Copper Wire, Thermoplastic Shell
- MFR:
- ECM Industries
- MFR #:
- 13-084
- UPC:
- 032076130848
- Item #:
- 484194
13-084 84 Series High Leverage Twist-On Wire Connector, Winged Shell, Square Spring, 22 to 10 AWG Wire Aluminum/Copper Wire, Thermoplastic Shell
- MFR #:
- 13-084
- UPC:
- 032076130848
- Item #:
- 484194
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
GB's WingGard twist-on wire connectors offer unsurpassed quality and durability in a high-leverage, easy-on, wing-type design. These hardworking connectors offer a wide range of connection options essentially ensuring that onesize can do the job of multiple standard connectors. The swept wings provide added turning torque and reduce the strain of multiple applications. The thermoplastic shell provides strength and resistance to chemicals while a long skirt prevents exposure of bare wire. The zinc-plated square wire-spring inside instantly adjusts to the shape and size of the splice upon insertion ensuring a long-lasting connection that resists corrosion and exceeds UL standards for dielectric strength and wire pullout force.
Manuals and Documentation
Features
- Wire connectors offer unsurpassed quality and durability in a high-leverage, easy-on, wing-type design
- 500/Bag
- Wiring Connectors
- Wings are knurled for a sure grip and offset from centerline for greater twisting leverage
- Flame-retardant properties resist heat distortion up to 105 deg C/221 deg F
- High dielectric shell features deep skirt design to prevent exposure of bare wire
- Rated at 600 V max in building wire and at 1000 V max in lighting, fixtures/luminaries and signs
- Copper to copper connections only
- Thermoplastic shell provides strength and resistance to chemicals and high temperature with zinc plated spring
- Square-wire plated spring instantly adjusts to the shape and size of the splice, secure connections for positive continuity
- (2) 18 AWG - (3) 12 AWG wire combinations
| Manufacturer Part Number | 13-084 |
| Brand | Gardner Bender |
| Manufacturer | ECM Industries |
| UPC | 032076130848 |
| Country Of Origin | TW |
| Color | Yellow |
| Dimensions | 0.25 in ID x 0.72 in OD x 1.03 in L |
| Finish | Zinc Plated |
| Material | Thermoplastic Shell |
| Series | 84 Series |
| Specifications | 7/32 in Top Dia |
| Temperature Rating | 105 deg C |
| Type | High Leverage |
| Voltage Rating | 300/600 V AC |
| Manufacturer Item Status | Active |
| Country | USA/Canada |
| Warranty | 1 Year |
| Standards Approvals | cULus Certified | RoHS Compliant | cULus Listed |
| Application | For Building Wire, Fixtures or Luminaires and Signs |
| Includes | Driver Nut |
