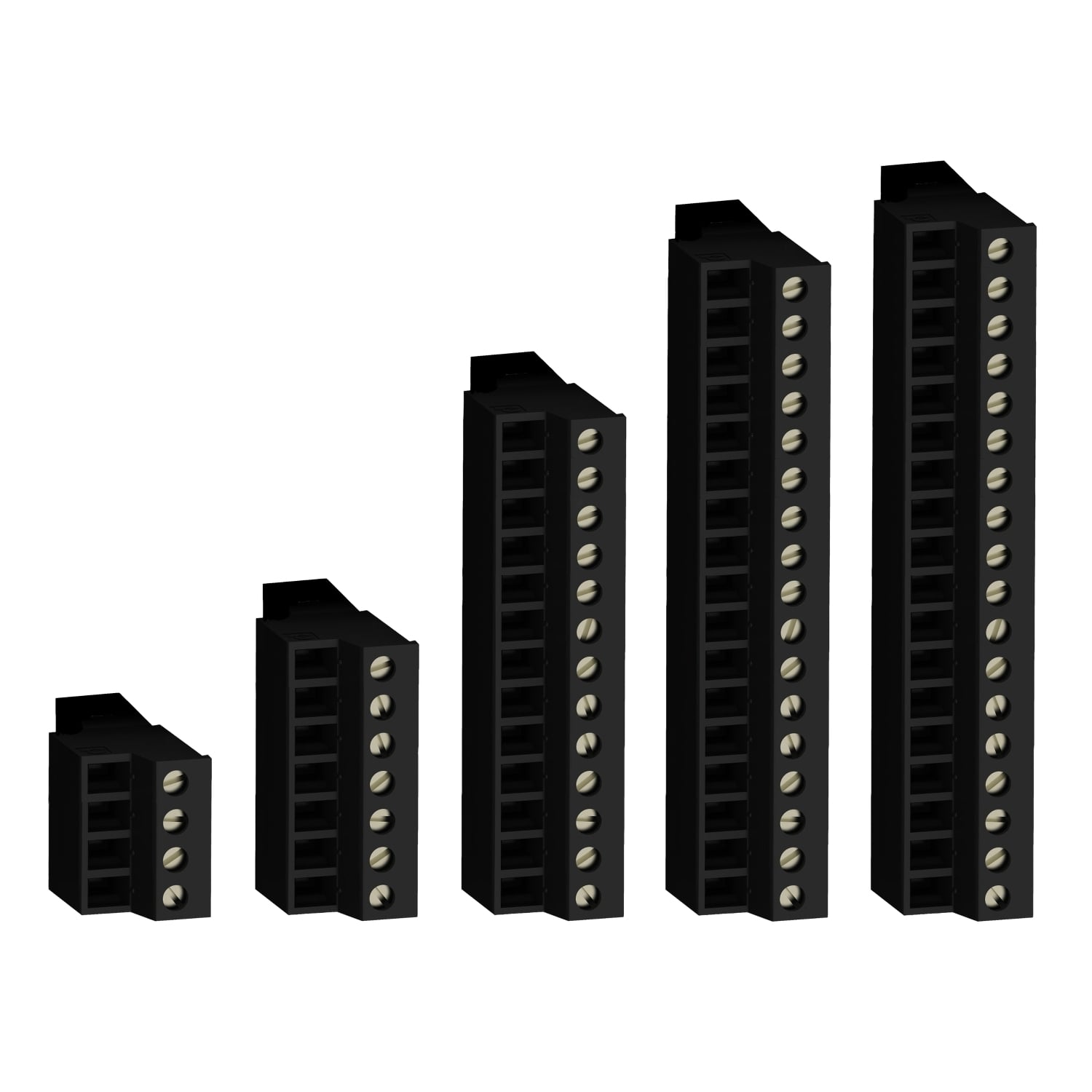

TMAT4CSET Connector Set, For Use With Modicon M241 Logic Controller

MFR:
Schneider Electric
MFR #:
TMAT4CSET
Item #:
483893

Availability

Location Available Qty
Available Available to Order
$96.72 each

connector set for M241 - IO This product is part of the Modicon M241 range, an offer of logic controllers for performance demanding applications. This connector set is dedicated to Modicon M241 logic controllers. It is composed of 8 removable connectors with screw terminals to connect to the serial line, to the I/O and to the CANopen bus. It weighs 0.127kg. The Modicon M241 logic controllers are designed for high-performance compact machines incorporating speed and position control functions. This product is certified by CE, IACS E10, RCM, CSA, CULus. It meets ANSI/ISA 12-12-01, CSA C22.2 No 142, CSA C22.2 No 213, EN/IEC 61131-22007, marine specification (LR, ABS, DNV, GL), UL 1604 and UL 508 standards. The pack of this set contains 1 terminal block connector and 7 Molex connectors.

Manuals and Documentation
Catalog Number TMAT4CSET
Manufacturer Schneider Electric
Brand SCHNEIDER ELECTRIC
Country of Origin Indonesia
Made in USA No
Application Modicon M241;Logic controller;Modicon M241
Special Features removable screw terminal block for connection to the CANopen bus;Molex removable screw terminals for serial communication;Molex removable screw terminals for inputs/outputs
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=381012819&lang=en-us
GTIN 03606480611223
Item Type Terminal block;Screw terminal block
