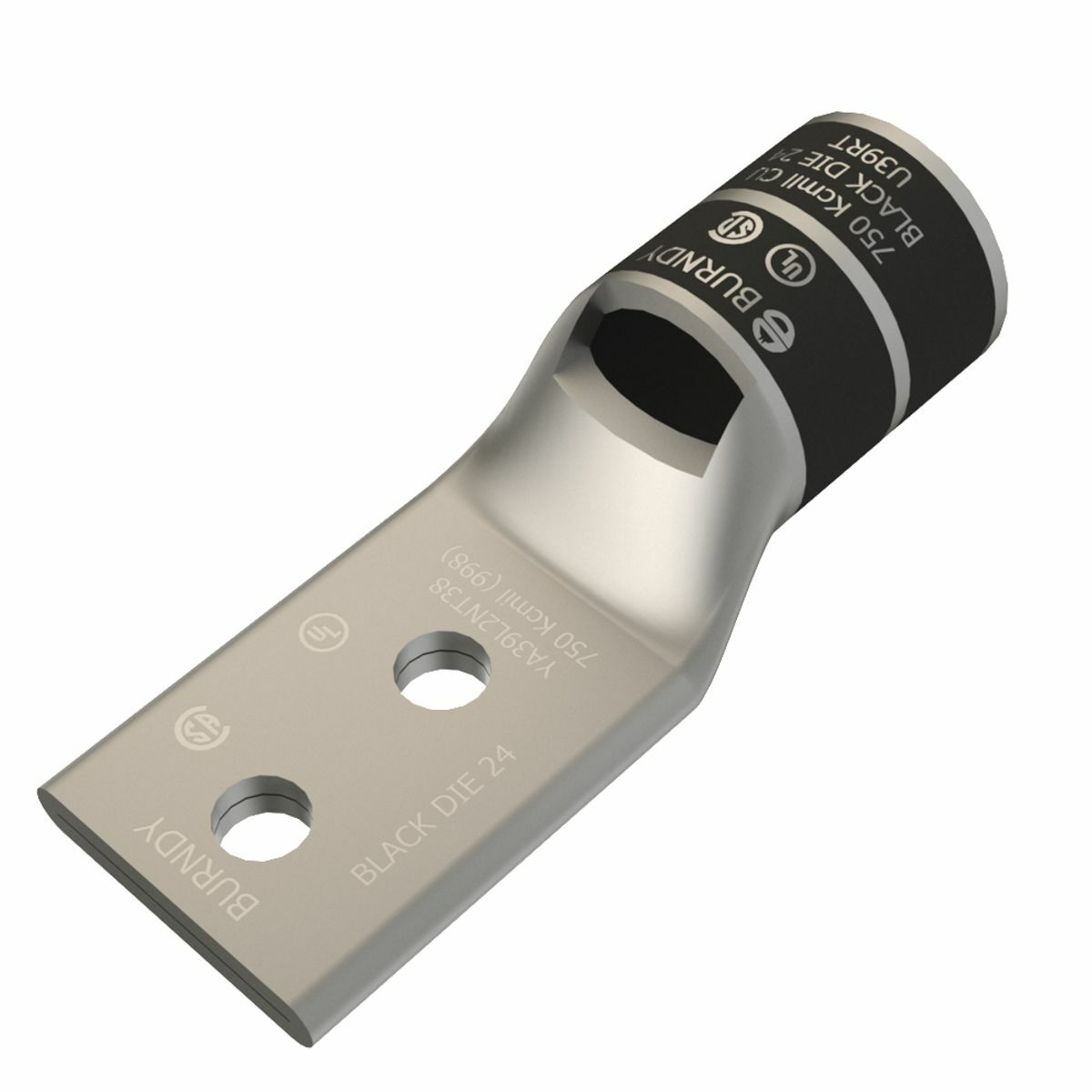

YA39L2NT38 YA-L-2NT 2-Hole Compression Lug, 750 kcmil Stranded Copper Conductor, Die Code: 24, 3/8 in Stud, Copper
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- YA39L2NT38
- UPC:
- 781810503638
- Item #:
- 482893
YA39L2NT38 YA-L-2NT 2-Hole Compression Lug, 750 kcmil Stranded Copper Conductor, Die Code: 24, 3/8 in Stud, Copper
- MFR #:
- YA39L2NT38
- UPC:
- 781810503638
- Item #:
- 482893
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$195.32
each
Manuals and Documentation
| Catalog Number | YA39L2NT38 |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Wire Termination |
| Material | COPPER |
| Special Features | Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Die Index: 24, Finish: Electro-Tin Plated, Wire Strip Length: 1-15/16 IN, Tongue Angle: Straight, Temperature Rating: 90 DEG C, Color Code: Black, Tools, Die Set Catalog Number, And (number Of Crimps): Hydraulic: Y35, Y39, Y750, PAT750 Tool, U39RT Die, (2), Y46 Tool, U39RT Die With PUADP-1 Adapter, (2), Conductor Type: Commercial Stranded Copper, Dieless Tools (number Of Crimps): Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (1) |
| Standard | UL 486A-486B |
| UPC | 781810503638 |
| GTIN | 00781810503638 |
| Item Type | YA-L-2NT, Code Conductor Standard Barrel Narrow Tongue |
| Voltage Rating | 35 |
