XU9M18MA230K OsiSense XU Simply Easy 2-Wire Axial Photoelectric Sensor, M18 Cylindrical Shape, 3 m, Infrared Sensing Beam, 20 ms Response, Solid State 1NO Output
- MFR:
- Telemecanique Sensors
- MFR #:
- XU9M18MA230K
- UPC:
- 785901301264
- Item #:
- 482538
XU9M18MA230K OsiSense XU Simply Easy 2-Wire Axial Photoelectric Sensor, M18 Cylindrical Shape, 3 m, Infrared Sensing Beam, 20 ms Response, Solid State 1NO Output
- MFR #:
- XU9M18MA230K
- UPC:
- 785901301264
- Item #:
- 482538
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |

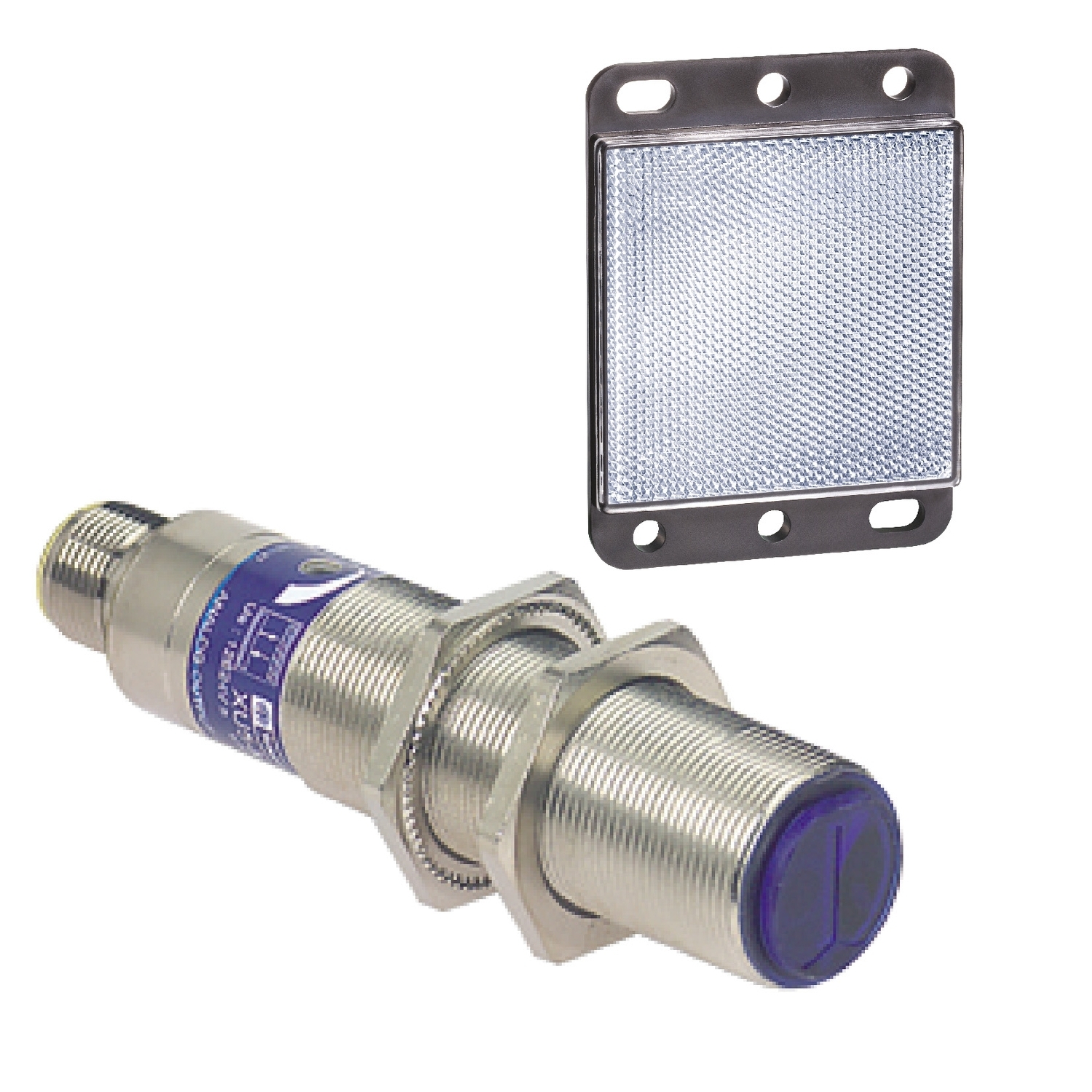

This product is part of the XU range, an offer of photoelectric sensors. This photoelectric sensor in a cylindrical M18 design with polarized reflex detection system. It supports 2m nominal sensing distance and 1 NO discrete output. The photoelectric sensor with a rated supply voltage of 24V to 240V AC/DC. It is furnished with 3-pin 1/2inch-20 UNF male connector for electrical connection. It is an IP67 rated product. The enclosure is made of nickel plated brass. Its dimensions are 18mm (diameter) x 82mm (length). It weighs 0.095kg. It is ideal for material handling, packaging, labelling, assembly, lift, escalators or food and beverage industries. This product is certified by CE, CSA and UL. The kit includes sensor and XUZC50 reflector. The XU is for non contact sensing up to a hundred meters of objects of any shape and any type. The XU range offers a full line of photoelectric proximity sensors dedicated to material handling, packaging, labelling, lift, food and beverage industries.
Manuals and Documentation
| Catalog Number | XU9M18MA230K |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Indonesia |
| Made in USA | No |
| Application | - |
| Connection | 1 male connector 1/2"20 UNF, 3 pins |
| Enclosure | IP67 DOUBLE INSULATION CONFORMING TO IEC 60529,NICKEL PLATED BRASS |
| Operating Cycles | <= 25 Hz |
| Output | 1 NO;Discrete;Solid state |
| Sensing Range | 2-2 M POLARISED REFLEX NEED REFLECTOR XUZC50,> 3.28...16.4 FT (> 1...5 M) |
| Special Features | 1 LED yellow)output state;1 LED red)instability |
| Standard | IP67 DOUBLE INSULATION IEC 60529,UL-CE-CSA |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=872392&lang=en-us |
| UPC | 785901301264 |
| GTIN | 03389110736571 |
| Item Type | General purpose single mode;Polarised reflex;Cylindrical M18;Photo-electric sensor |
| Size | 0.71 |
| Operating Temperature | -25-55 A Degrees C |
| Voltage Rating | 24...240 V AC/DC |
