Appleton

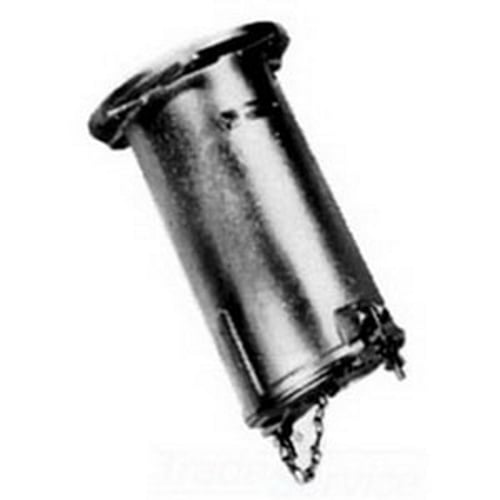

AR40034RS Powertite 3-Phase S Grounding Style 1 Pin and Sleeve Receptacle With Reverse Service, 600 V AC/250 V DC, 400 A, 4 Poles, 3 Wires

MFR:
Appleton Electric
MFR #:
AR40034RS
UPC:
781381325219
Item #:
480134

Availability

Location Available Qty
Available Available to Order
$6,291.05 each

Powertite Grounding Style 2 Receptacle, Number Of Poles: 4, Number Of Wires: 3, Wire Size: 400 - 1000 MCM, Amperage Rating: 400 AMP, Voltage Rating: 600 VAC At 50 - 400 HZ, 250 VDC, Phase: 3 PH, Material: Copperfree (4/10 Of 1 PCT Maxim

Manuals and Documentation
Catalog Number AR40034RS
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Amperage Rating 400
Application For AP40034E Plug
Connection Solder Wire Terminal
Material Copperfree (4/10 Of 1 PCT Maximum) Aluminum
Mounting Box
Number of Poles 4
Number of Wires 3
Phase 3
Special Features For reverse service (generator applications); Grounding style: Shell only and extra pole; Designed to supply power to portable or fixed electrical equipment such as motor generator units, welders, pumps, compressors, cellular relay stations and similar apparatus; Ideal for use on shipping docks, ports and other ship to shore applications; Suitable for use in locations where a weatherproof enclosure is required; Rough usage construction; Natural finish glass filled polyester insulating blocks; Wire recess diameter: 0.84 IN
Standard UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11
UPC 781381325219
GTIN 00781381325219
Item Type Grounding Style 2 Receptacle
Temperature Rating -40 To 107 DEG C
Voltage Rating 600 VAC At 50 - 400 HZ, 250 VDC
Wire Size 400 - 1000 MCM
