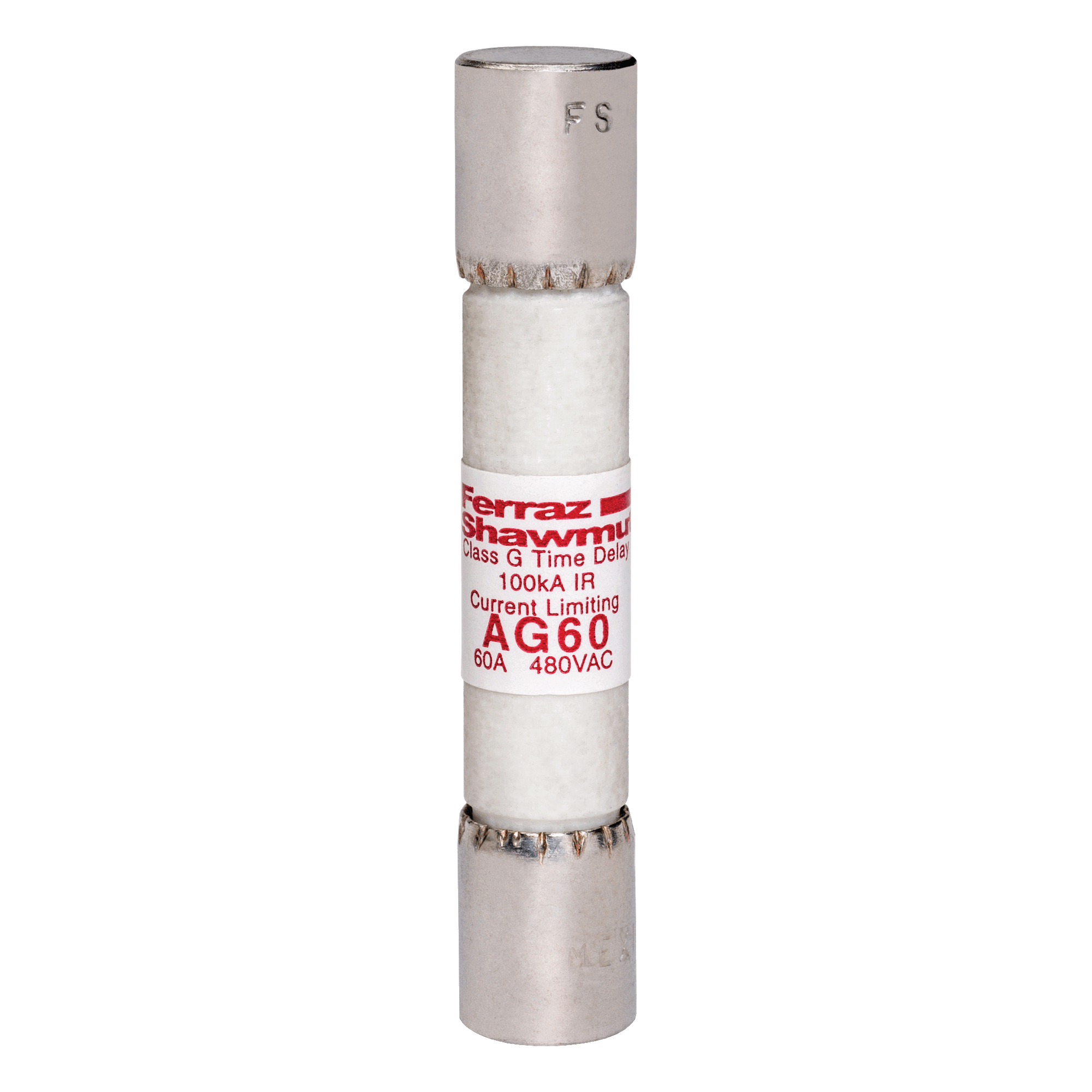

AG60 Amp-Trap Current Limiting Low Voltage Time-Delay Fast Acting Fuse, 60 A, 480 V AC, 100 kA, Class G, Cylindrical Body
- MFR:
- Mersen
- MFR #:
- AG60
- UPC:
- 782001905224
- Item #:
- 479634
AG60 Amp-Trap Current Limiting Low Voltage Time-Delay Fast Acting Fuse, 60 A, 480 V AC, 100 kA, Class G, Cylindrical Body
- MFR #:
- AG60
- UPC:
- 782001905224
- Item #:
- 479634
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$57.33
each
Fuse AG - Class G 480VAC 60A Time Delay Ferrule Amp-Trap
Manuals and Documentation
| Catalog Number | AG60 |
| Manufacturer | Mersen |
| Brand | Mersen |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 60 |
| Application | Lighting Heating (except in Canada where fuses must be “P” or “D” type) Appliances |
| Connection | Ferrule |
| Interrupt Rating | 100 KA |
| Mounting | Clip |
| Special Features | Four unique sizes from ½-60 amperes do not allow inter-changeability with other fuse classes Fiberglass bodies provide dimensional stability in harsh industrial settings |
| Standard | UL listed to standard 248-5 File E2137 CSA certified to standard C22.2 No. 248.5 |
| UPC | 782001905224 |
| GTIN | 00782001905224 |
| Item Type | Class G |
| Size | 2.25 x 0.41 |
| Voltage Rating | 480 |
