AG60 Amp-Trap Current Limiting Low Voltage Time-Delay Fast Acting Fuse, 60 A, 480 V AC, 100 kA, Class G, Cylindrical Body
- MFR:
- MERSEN
- MFR #:
- AG60
- UPC:
- 782001905224
- Item #:
- 479634
AG60 Amp-Trap Current Limiting Low Voltage Time-Delay Fast Acting Fuse, 60 A, 480 V AC, 100 kA, Class G, Cylindrical Body
- MFR #:
- AG60
- UPC:
- 782001905224
- Item #:
- 479634
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$57.33
each

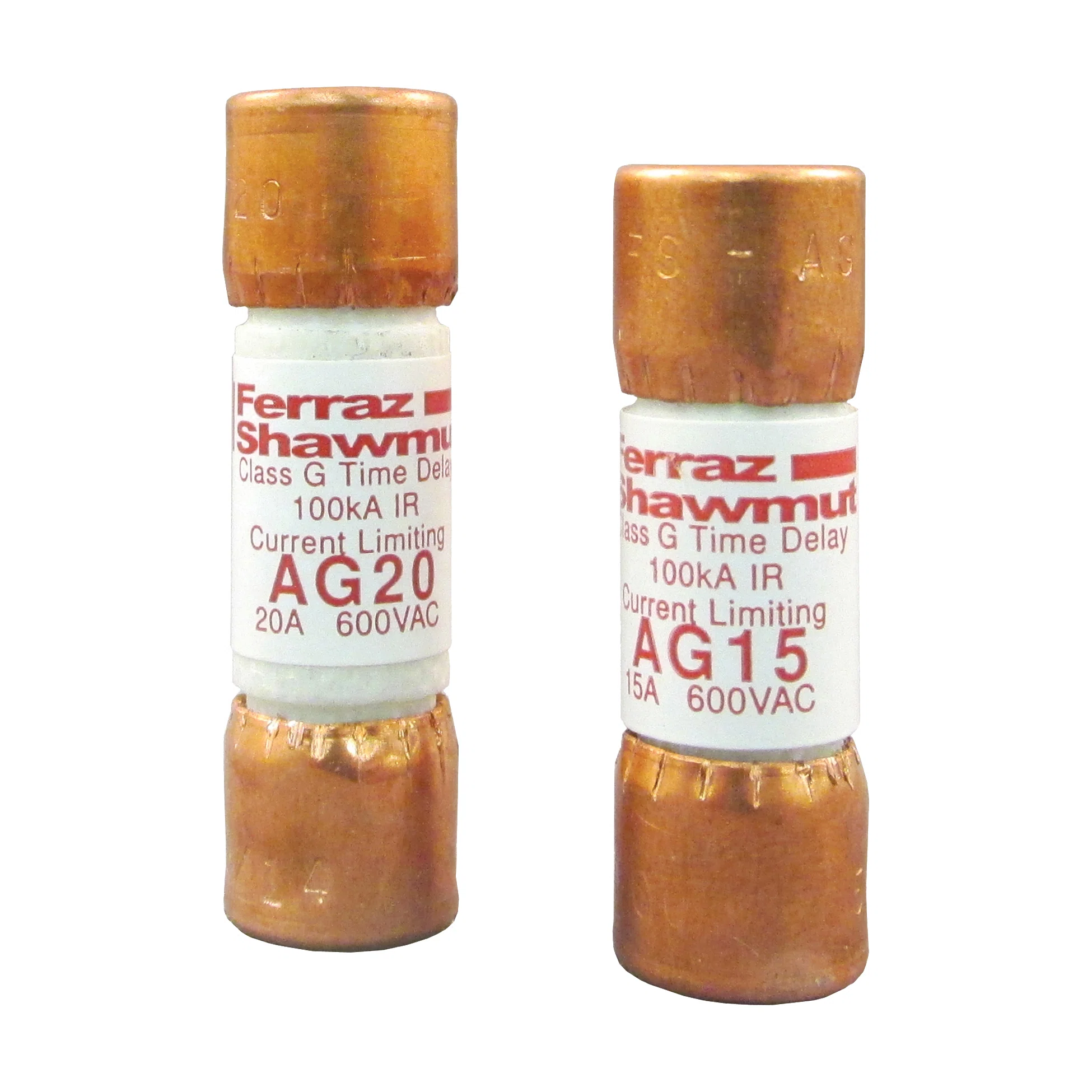

The Mersen Amp-Trap AG fuse series is a complete line of UL Listed Class G fuses with time-delay (above 5A rating). Class G fuses are made in four physical sizes and provide branch-circuit protection for lighting, heating, and appliance circuits.
Manuals and Documentation
Features
- Four unique sizes from 1/2 - 60 A do not allow inter-changeability with other fuse classes
- Fiberglass bodies provide dimensional stability in harsh industrial settings
- Tin-plated copper contact
- North American power fuses
| Manufacturer Part Number | AG60 |
| Brand | Mersen |
| Manufacturer | MERSEN |
| UPC | 782001905224 |
| Country Of Origin | MX |
| Amperage Rating | 60 A |
| Material | Fiber |
| Mounting Type | Clip |
| Series | AG Series |
| Type | Current Limiting Low Voltage Time-Delay |
| Voltage Rating | 480 V AC |
| Alternative Part Number | 7710934 |
| Manufacturer Item Status | Active |
| Country | USA |
| Standards Approvals | RoHS Compliant | UL 248-5, E2137 | CSA C22.2 No.248.5 |
| Application | Lighting, Heating and Appliances Applications |
| Body Size | 0.406 in Dia x 2.25 in L |
| Body Type | Cylindrical |
| Class | G |
| Element | Dual |
| Indicating Non Indicating | Non-Indicating |
| Interrupt Rating | 100 kA |
| Rejection Non Rejection | Rejection |
| Terminal Type | Ferrule |
