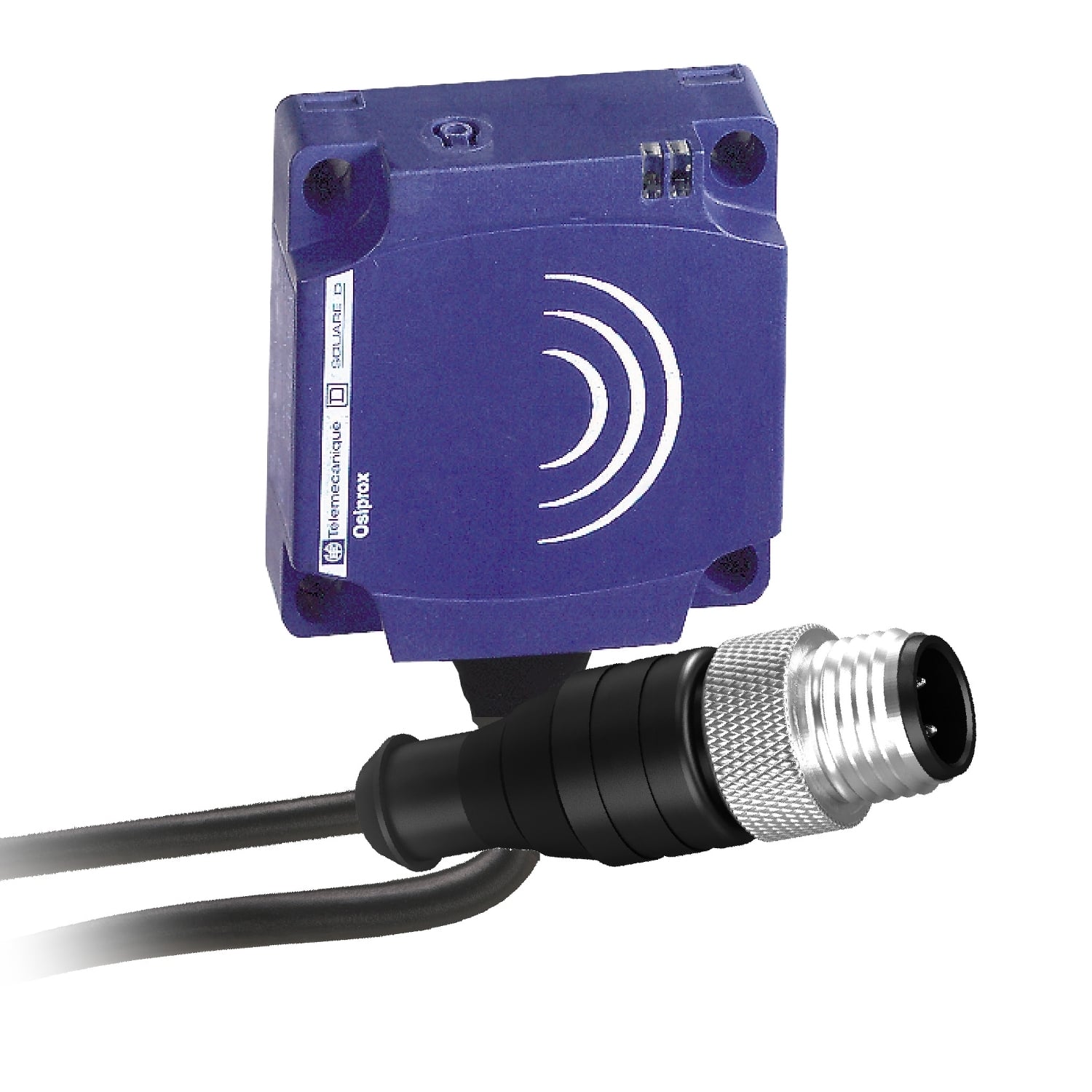

XS8C1A1PAL01M12 OsiSense XS8 Series Fixed Flat Form Proximity Sensor, Inductive, PNP/Discrete Output, 1NO Contact, 12 to 24 V DC
- MFR:
- Telemecanique Sensors
- MFR #:
- XS8C1A1PAL01M12
- UPC:
- 785901509721
- Item #:
- 478919
XS8C1A1PAL01M12 OsiSense XS8 Series Fixed Flat Form Proximity Sensor, Inductive, PNP/Discrete Output, 1NO Contact, 12 to 24 V DC
- MFR #:
- XS8C1A1PAL01M12
- UPC:
- 785901509721
- Item #:
- 478919
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$341.97
each
The XS range is an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. The advantages of inductive detection are numerous, no physical contact with the object to be detected. Thus avoiding wear and enabling detection of fragile or freshly painted objects. High operating rates. Fast response. Excellent resistance to industrial environments (robust products, fully encapsulated in resin). This product is a flat format, 40mm x 40mm x 15mm sensor. It features a plastic case and a remote M12 connector. It has a sensing distance of 25mm. Three-wire DC, 12V to 24V, with overload and short-circuit protection, NO function, PNP discrete output. This sensor is ECOLAB certified.
Manuals and Documentation
| Catalog Number | XS8C1A1PAL01M12 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| Application | - |
| Connector | Remote male connector M12, 4 pins |
| Control Output | DC 3-WIRE (PNP) - 1 N.O. |
| Enclosure | PBT |
| Indicator | OUTPUT: YELLOW - POWER/TEACH: GREEN |
| Material | Plastic |
| Mounting | Flush |
| Sensing Range | 15 MM FLUSH MOUNTABLE-25 MM NON FLUSH MOUNTABLE,> 0.59...1.57 IN (> 15...40 MM) |
| Sensor | 40 MM,INDUCTIVE PROXIMITY SENSOR |
| Special Features | PLASTIC |
| Standard | IP67 double insulation conforming to IEC 60529;CE |
| Supply Voltage | 12...24 V DC reverse polarity protection |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=870618&lang=en-us |
| UPC | 785901509721 |
| GTIN | 03389110142730 |
| Item Type | Inductive proximity sensor;Flat form 40 x 40 x 15 |
| Environmental Conditions | WATER TIGHT, DUST TIGHT AND CORROSION RESISTANT |
| Operating Temperature | -25-70 A Degrees C |
