nVent CADDY

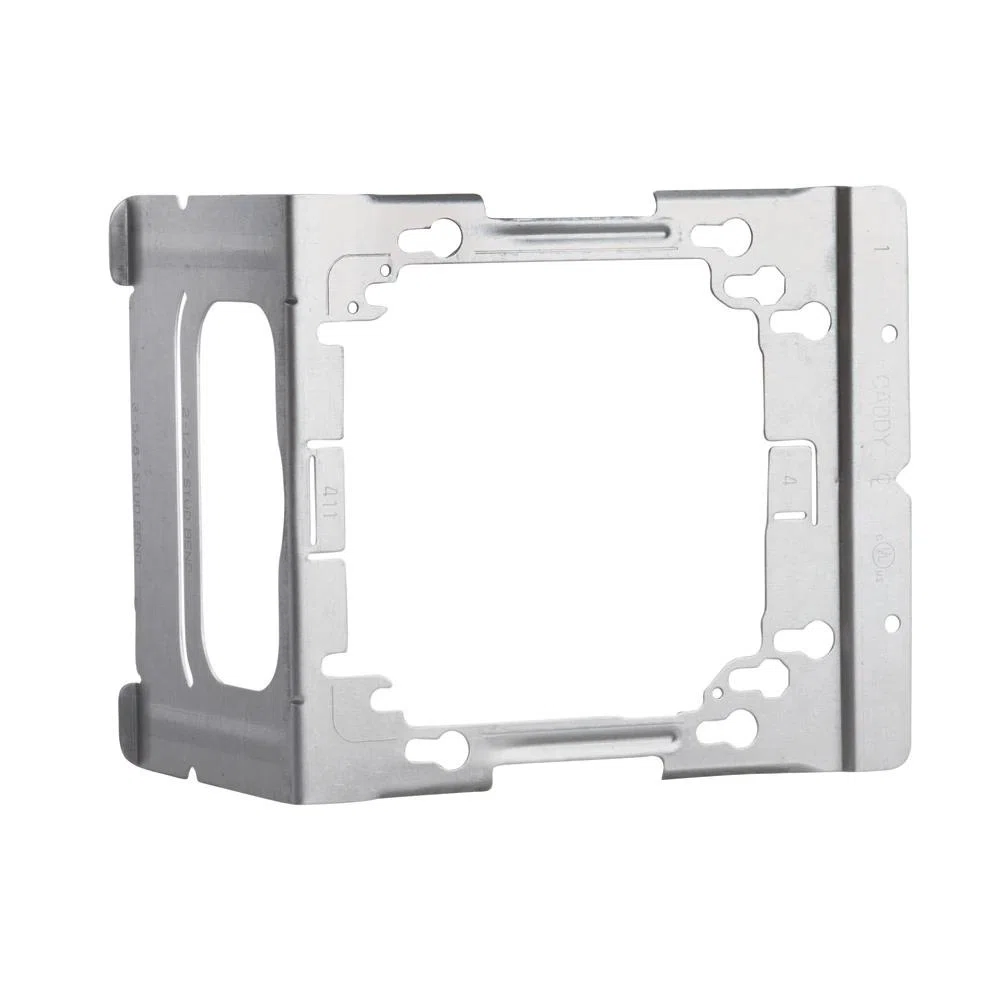

Electrical box bracket to stud, 2 1/2", 3 5/8" wall depth, 3.51"

MFR:
nVent
MFR #:
C23
UPC:
782856864257
Item #:
474987

Availability

Location Available Qty
Available 444 ea
$8.2106 each

nVent CADDY Electrical Box Bracket, Series: C Series, 4 in, 4-11/16 in Box, Stud Mount, For Use With: Electrical Box, 2-1/2 in and 3-5/8 in D Stud Wall, Steel, Pre-Galvanized, 5.75 in W x 3.51 in D x 5 in H

Manuals and Documentation

Features

  • Improved keyhole pattern to make mounting of 4 11/16 in boxes easier
  • Box lock tab secures box to bracket during assembly and allows mud ring to be removed following installation on the stud, providing easy frontal access to the inside of the box
  • Designed with thicker steel to significantly increase rigidity and help prevent box movement and trim out issues
  • Unique "step in" feature at the top and bottom of the bracket to easily access the set screws
  • Works with both standard and adjustable single and double gang mud rings
  • Additional bend points on C4 and C6 brackets for greater versatility
Manufacturer Part Number C23
Brand nVent CADDY
Manufacturer nVent
UPC 782856864257
Country Of Origin US
Dimensions 5.75 in W x 3.51 in D x 5 in H
Finish Pre-Galvanized
Material Steel
Mounting Type Stud
Series C Series
Specifications 2-1/2 in and 3-5/8 in D Stud Wall
Suitable For Use With Electrical Box
Alternative Part Number 14850521
Manufacturer Item Status Active
Country USA/Canada
Standards Approvals BABA Compliant | UL Recognized | cUL Recognized | cULus Listed | cUL QCRV7.E165702 | CAN/CSA C22.2 No. 18.1-04 | UL QCRV.E165702 | ANSI/UL 514A | RoHS Compliant
Application Electrical Fixing and Fastening Applications
Box Size 4 in, 4-11/16 in
