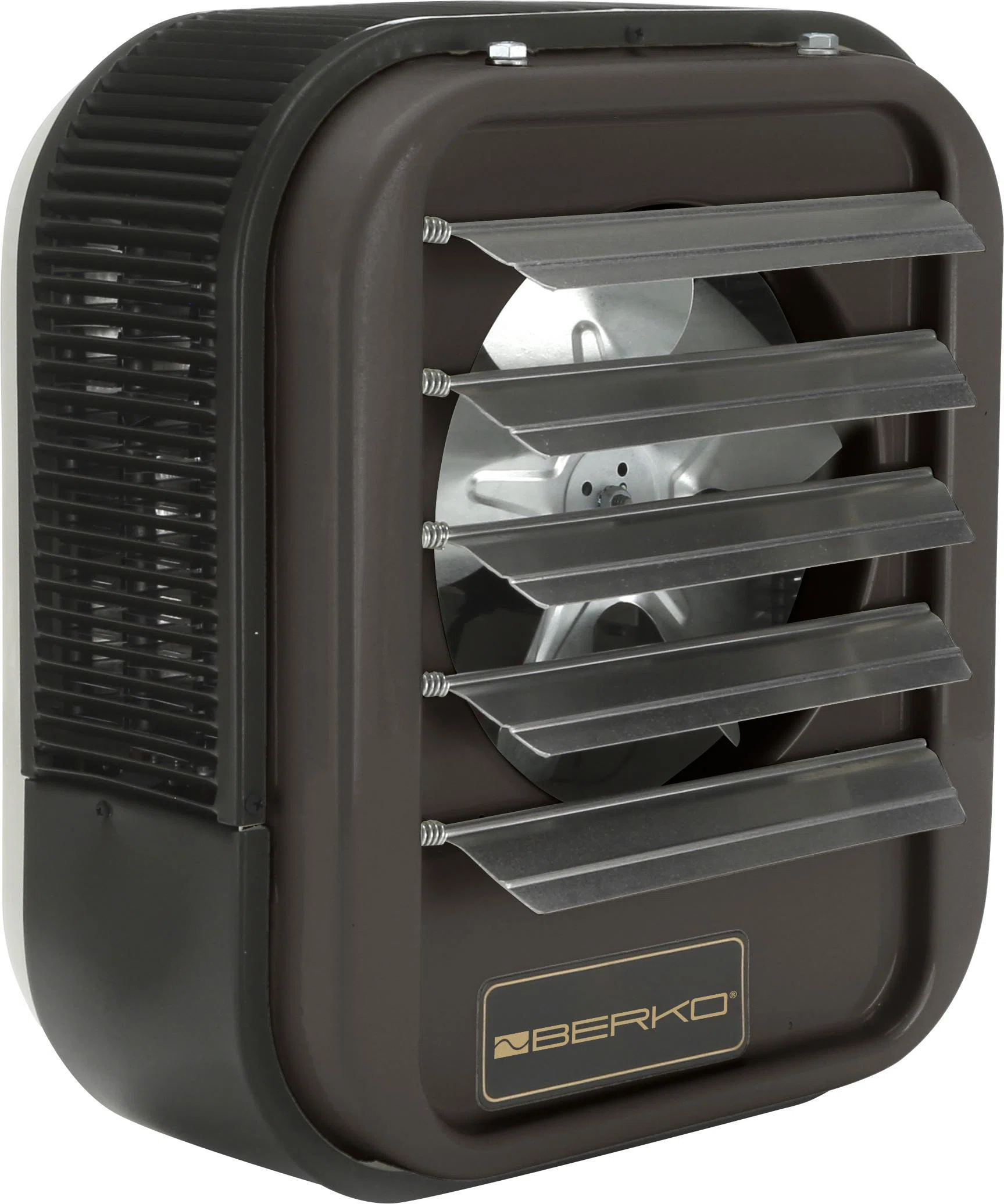

HUHAA5048 Berko 3-Phase Unit Heater, 50 kW, 480 V
- MFR:
- Marley Engineered Products
- MFR #:
- HUHAA5048
- UPC:
- 685360036960
- Item #:
- 474671
HUHAA5048 Berko 3-Phase Unit Heater, 50 kW, 480 V
- MFR #:
- HUHAA5048
- UPC:
- 685360036960
- Item #:
- 474671
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$8,503.22
each
This rugged unit heater works well in industrial settings. Install it in factories, warehouses, garages, stairwells, power stations or mechanical rooms. Its powerful output capacity even makes it suitable for heating your loading dock or other indoor/outdoor transition spaces.
Manuals and Documentation
Features
- Small to medium case construction is 20 ga steel with larger cabinet 18 ga steel
- Completely enclosed fan motor
- Aluminum finned, copper-clad steel sheath heating element extends life due to cooler sheath temperature and faster heat dissipation
- Automatic reset linear thermal cut-out, capillary type, provides protection over entire length of element areas (manual reset protection available on made-to-order basis)
- No piping flues, valves or traps needed for installation
- Individually adjustable louvers to direct air flow
- Two speed fan selector switch
- Advanced pull-through air flow design draws air across heating element for even air distribution and cooler element operation
- Specially designed venturi outlet to meet required additional air throw in vertical position
- Branch circuit fusing (when required)
| Manufacturer Part Number | HUHAA5048 |
| Brand | Berko® |
| Manufacturer | Marley Engineered Products |
| UPC | 685360036960 |
| Country Of Origin | US |
| Amperage Rating | 60.2 A |
| Color | Bronze |
| Dimensions | 26-5/8 in W x 18-1/8 in D x 30 in H |
| Finish | Polyester Powder Coated |
| Material | 20 ga Steel |
| Mounting Type | Surface |
| Series | HUHAA |
| Temperature Rating | 53/61 deg F |
| Type | 3-Phase |
| Voltage Rating | 480 V |
| Alternative Part Number | HUHAA5048FC | 8658346 |
| Manufacturer Item Status | Active |
| Country | USA |
| Warranty | 5 years Element and 1 year Workmanship |
| Standards Approvals | cULus Listed | NEC Approved | UL Listed |
| Application | Auxiliary, Supplementary or Primary Heat Source in Basements, Garages, Factories, Offices, Large or Exposed Areas, Public Buildings, Stores, Service Stations, Stock-Rooms, Warehouses |
| Flow Rate | 3000/2600 cfm |
| Frequency Rating | 60 Hz |
| Mounting Height | 15 ft Horizontal/25 ft Vertical |
| Power Rating | 50 |
| Speed | 1525/1420 rpm |
