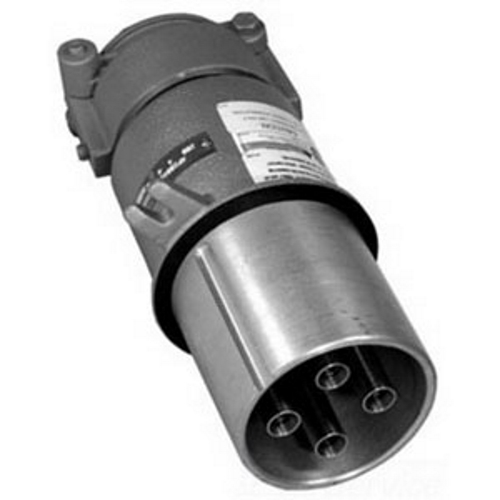

Powertite; 3 Pole 3 Wire Plug; 200 Amp, 600 Volt AC/250 Volt DC
- MFR:
- Appleton Electric
- MFR #:
- AP20033E-RS
- UPC:
- 781381295437
- Item #:
- 47455
Powertite; 3 Pole 3 Wire Plug; 200 Amp, 600 Volt AC/250 Volt DC
- MFR #:
- AP20033E-RS
- UPC:
- 781381295437
- Item #:
- 47455
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$2,607.34
each
Appleton Powertite Grounding Style 1 Plug, Number Of Poles: 3, Number Of Wires: 3, Wire Size: 2/0 AWG - 250 MCM, Amperage Rating: 200 AMP, Voltage Rating: 600 VAC At 50 - 400 HZ, 250 VDC, Phase: 3 PH, Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum, Nema Rating: NEMA 3, 3R, 4, 4X, Connection: Pressure Wire Terminal, Environmental Conditions: Temperature Rating: -40 To 107 DEG C, Motor Horsepower: 50 HP At 600 VAC, Finish: Epoxy Powder Coat, Plug Cable Diameter: 1-7/8 - 2-1/2 IN, Dimensions: 6.44 IN Width X 6.44 IN Height X 11.94 IN Depth, Standard: UL 1682, UL 1686, UL 50E, UL Listed: E145916, E145917, CSA Standard: C22.2 No. 182.1, CSA Certified: 065179, NEMA FB11, For ADR20033 Receptacle And ARC20033E Connector Body
Manuals and Documentation
| Catalog Number | AP20033E-RS |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 200 |
| Application | For ADR20033 Receptacle And ARC20033E Connector Body |
| Connection | Pressure Wire Terminal |
| Material | Copperfree (4/10 Of 1 PCT Maximum) Aluminum |
| NEMA Rating | 3, 3R, 4, 4X |
| Number of Poles | 3 |
| Number of Wires | 3 |
| Phase | 3 |
| Special Features | For reverse service (generator applications); Grounding style: Shell only; Designed to supply power to portable or fixed electrical equipment such as motor generator units, welders, pumps, compressors, cellular relay stations and similar apparatus; Ideal for use on shipping docks, ports and other ship to shore applications; Suitable for use in locations where a weatherproof enclosure is required; Rough usage construction; Natural finish glass filled polyester insulating blocks; Locking screw and slot prevents plug cable collar from backing off; Wire recess diameter: 11/16 IN; Plug and connector body combination is NEMA 4X rated when wing nuts are fully tightened on connector body |
| Standard | UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11 |
| UPC | 781381295437 |
| GTIN | 00781381295437 |
| Item Type | Grounding Style 1 Plug |
| Environmental Conditions | Temperature Rating: -40 To 107 DEG C |
| Voltage Rating | 600 VAC At 50 - 400 HZ, 250 VDC |
| Wire Size | 2/0 AWG - 250 MCM |
