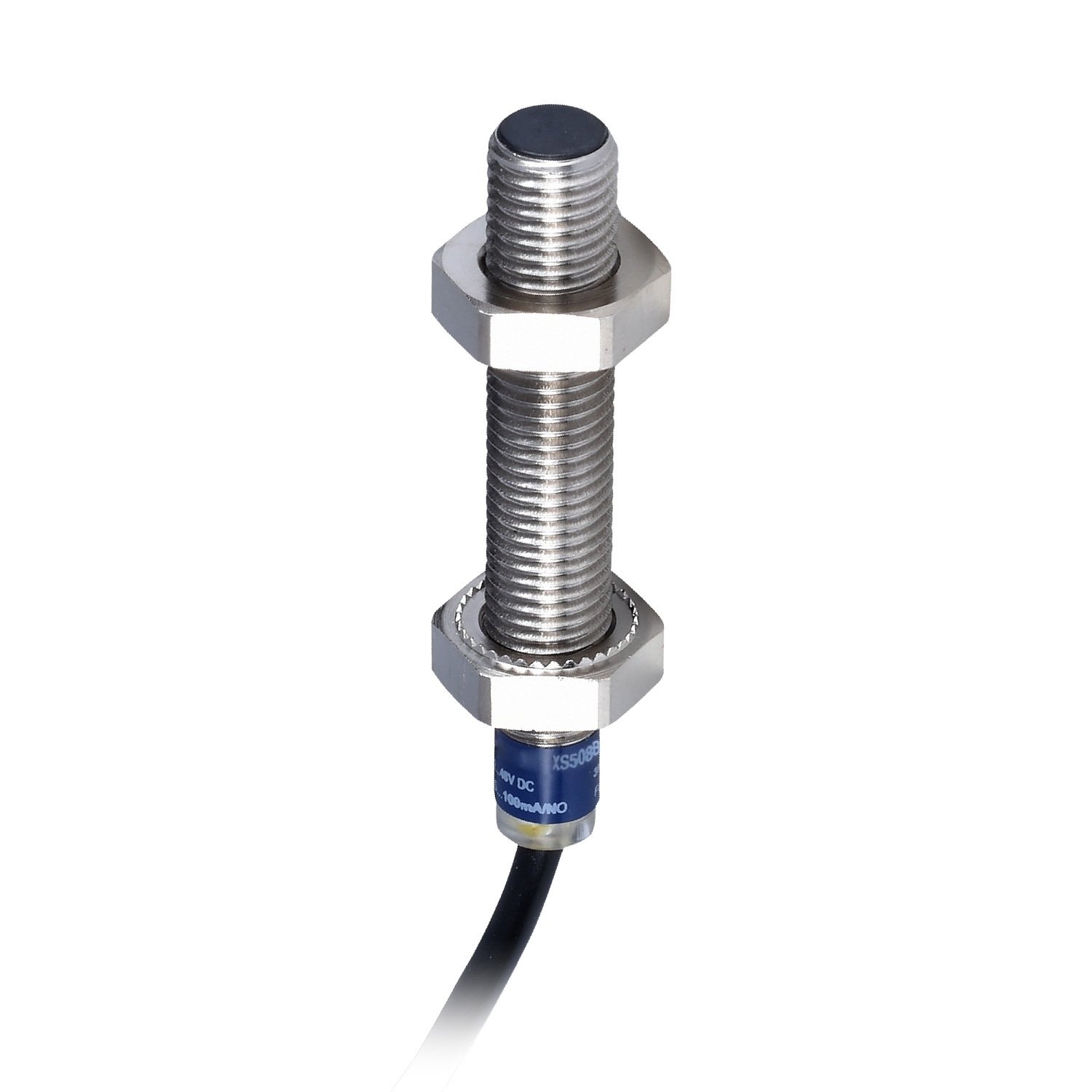

XS508B1PAL5 OsiSense XS Fixed Cylindrical Short Case Proximity Sensor With Reverse Polarity Protection, Inductive, PNP Output, 1NO Contact, 10 to 36/12 to 24 V DC
- MFR:
- Telemecanique Sensors
- MFR #:
- XS508B1PAL5
- UPC:
- 785901933595
- Item #:
- 47391
XS508B1PAL5 OsiSense XS Fixed Cylindrical Short Case Proximity Sensor With Reverse Polarity Protection, Inductive, PNP Output, 1NO Contact, 10 to 36/12 to 24 V DC
- MFR #:
- XS508B1PAL5
- UPC:
- 785901933595
- Item #:
- 47391
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$134.81
each
The XS range is an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. The advantages of inductive detection are numerous, no physical contact with the object to be detected. Thus avoiding wear and enabling detection of fragile or freshly painted objects. High operating rates. Fast response. Excellent resistance to industrial environments (robust products, fully encapsulated in resin). This product is a cylindrical, short case, flush mountable sensor. Diameter 8mm, threaded M8 x 1. It features a nickel plated brass case and a 5m long PvR cable. It has a sensing distance of 1.5mm. Three-wire, DC supply, 12V to 24V, NO function, PNP discrete output.
Manuals and Documentation
| Catalog Number | XS508B1PAL5 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| Application | - |
| Connector | Cable |
| Control Output | PNP - NO |
| Enclosure | Stainless steel 303 |
| Indicator | Output state 1 LED yellow) |
| Material | Metal |
| Mounting | Flush |
| Sensing Range | 1.5 MM,> 0...0.1 IN (> 0...2.5 MM) |
| Sensor | 33 MM,8 MM,INDUCTIVE PROXIMITY SENSOR |
| Special Features | METAL |
| Standard | IP67 conforming to IEC 60529;CE |
| Supply Voltage | 12...24 V DC reverse polarity protection |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=869370&lang=en-us |
| UPC | 785901933595 |
| GTIN | 03389110127645 |
| Item Type | Inductive proximity sensor;Cylindrical M8 |
| Operating Temperature | -25-70 A Degrees C |
| Cross Reference Products | Schneider XS1N08PA340L1|Schneider XS3P08PA340L1|Schneider XS508B1PAL5|Telemecan XS3P08PA340L1|Telemecan XS508B1PAL5 |
