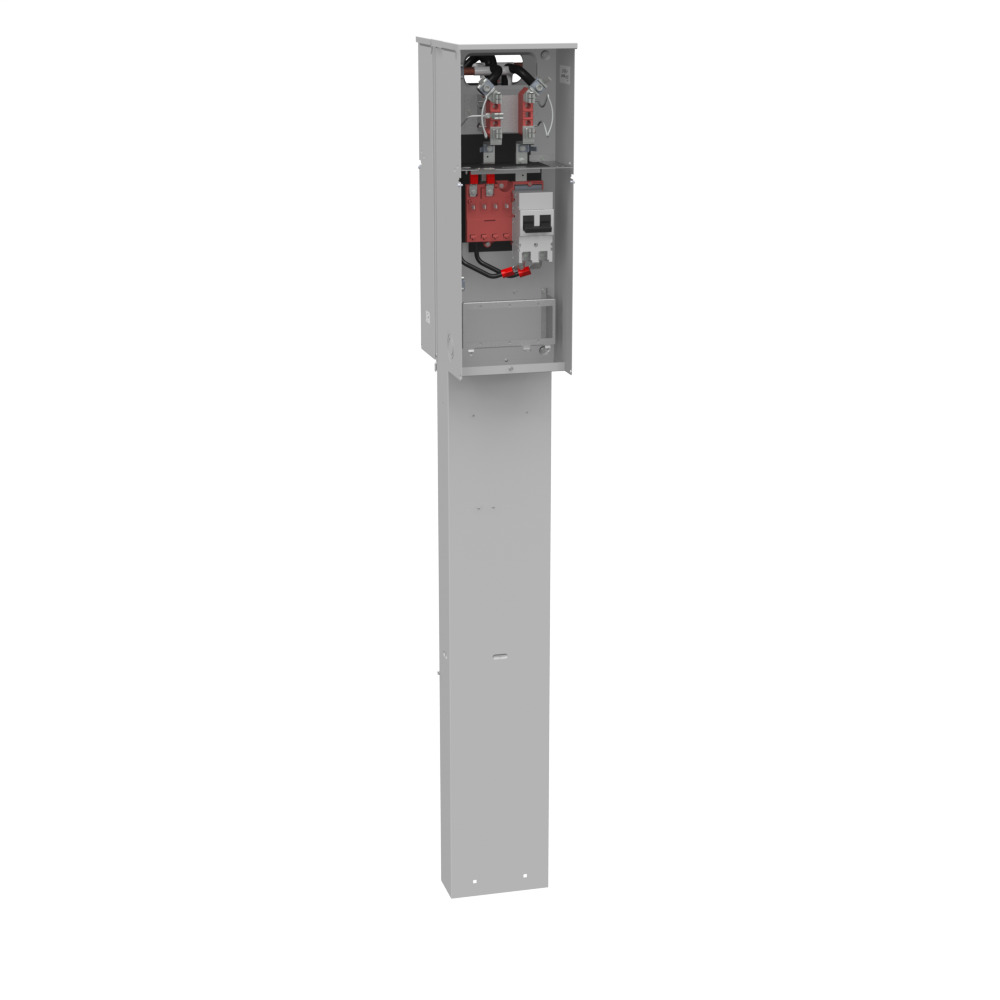

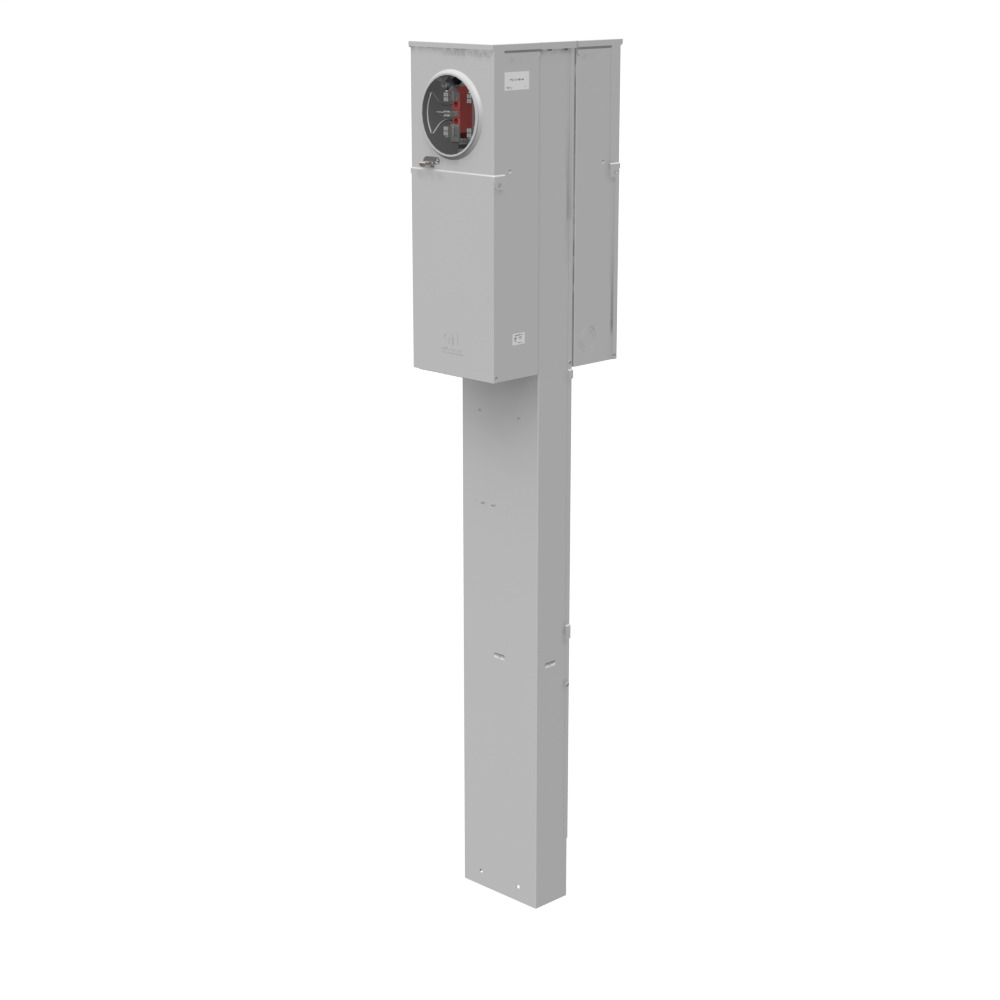

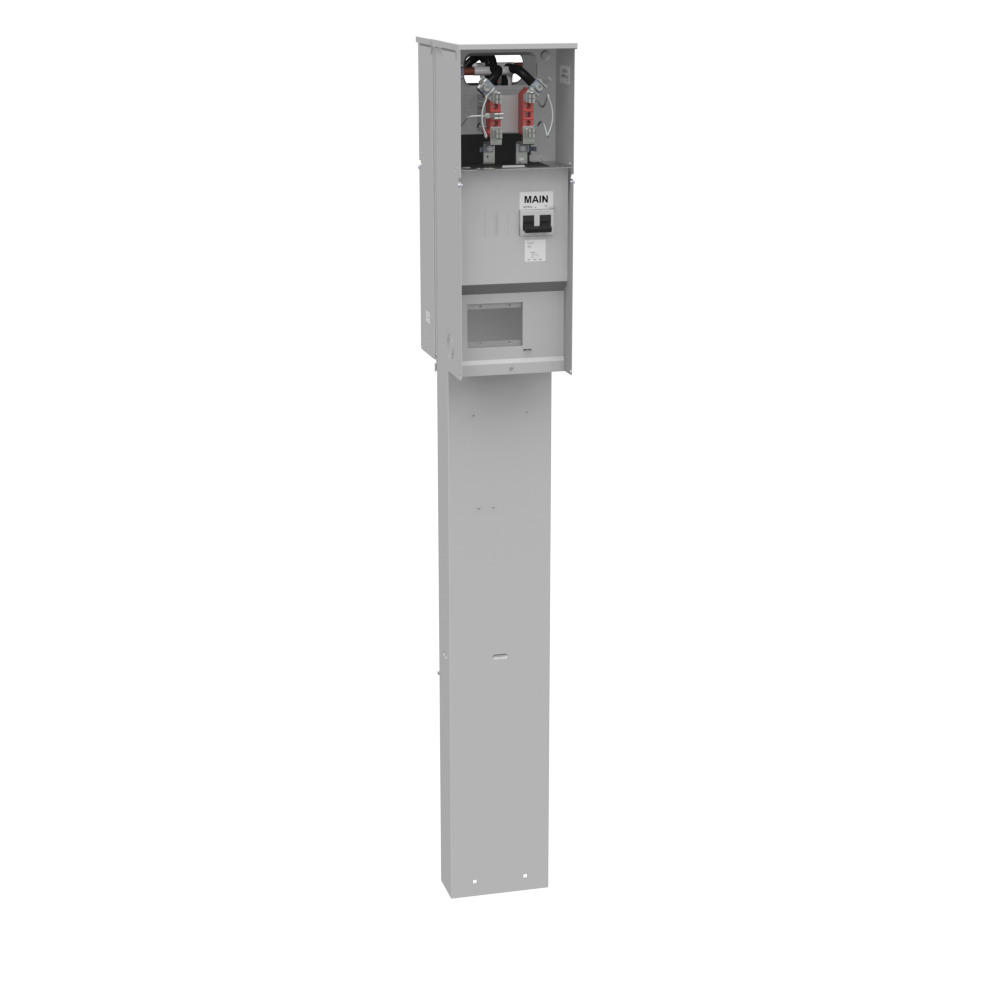

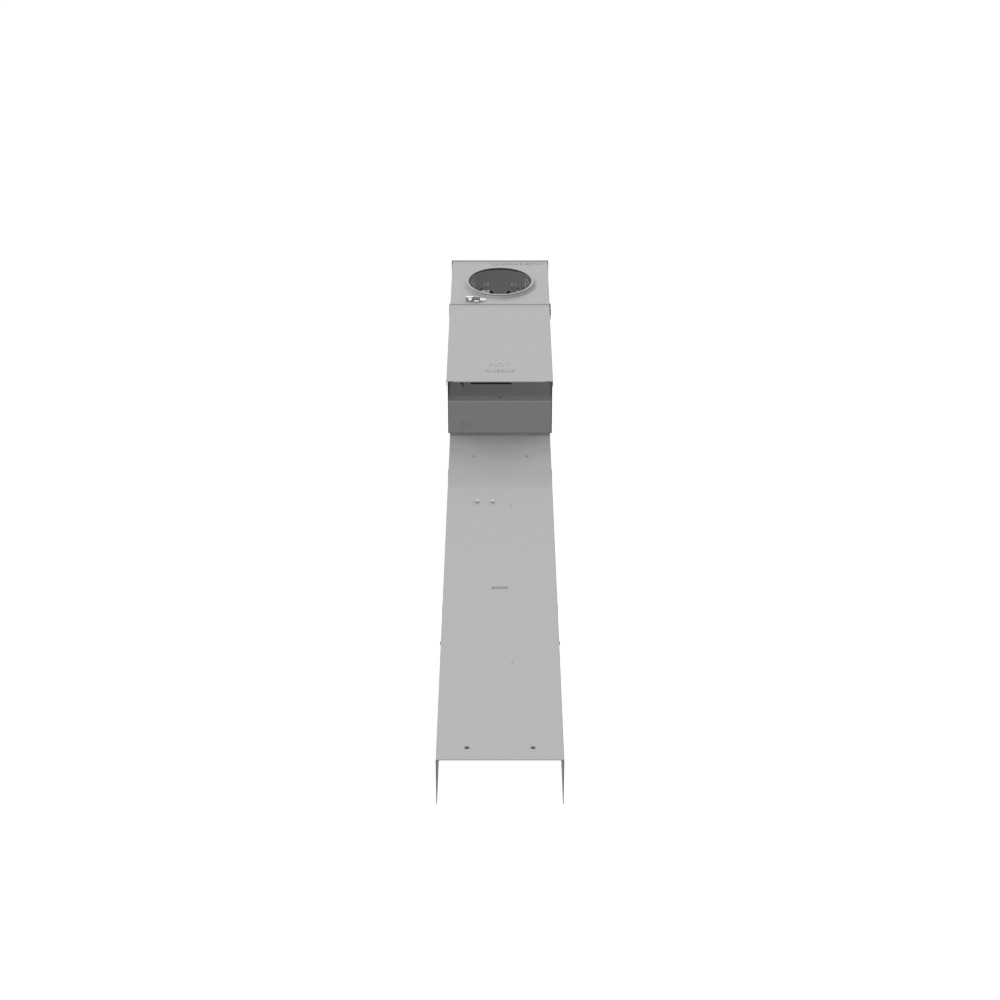

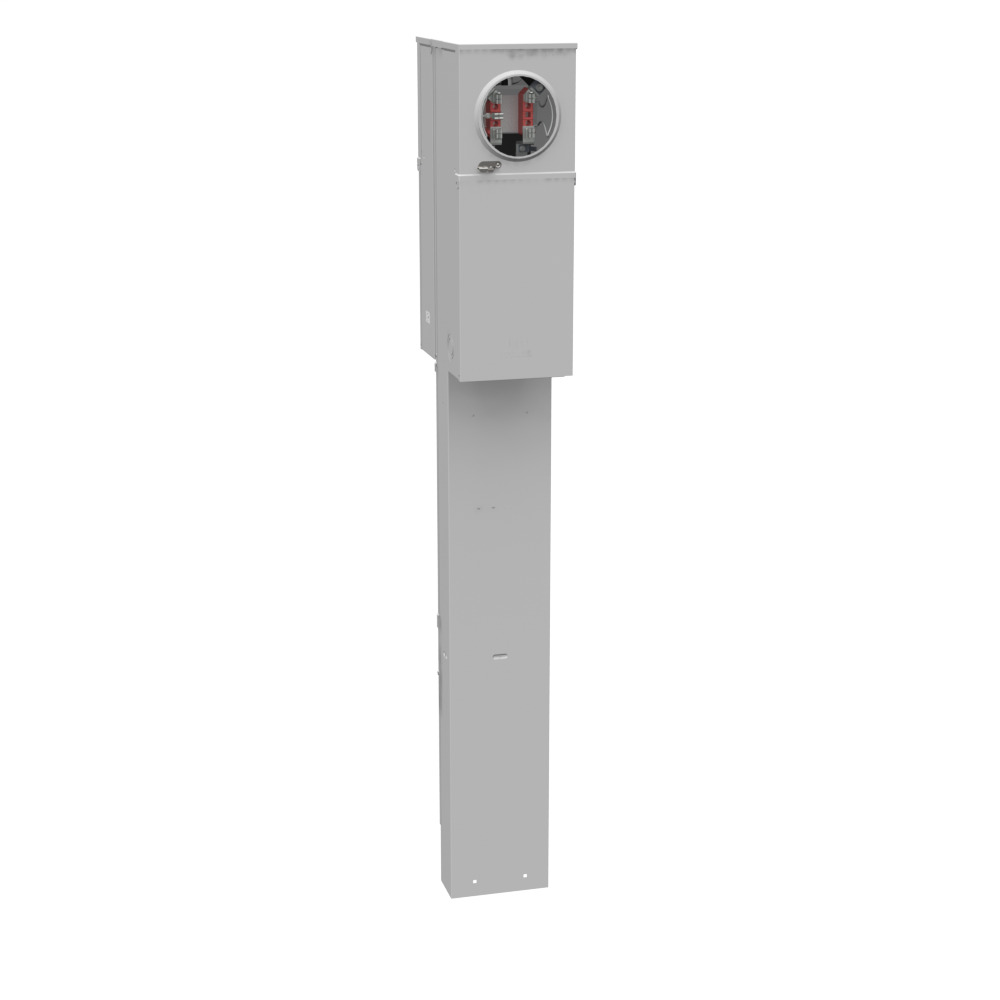

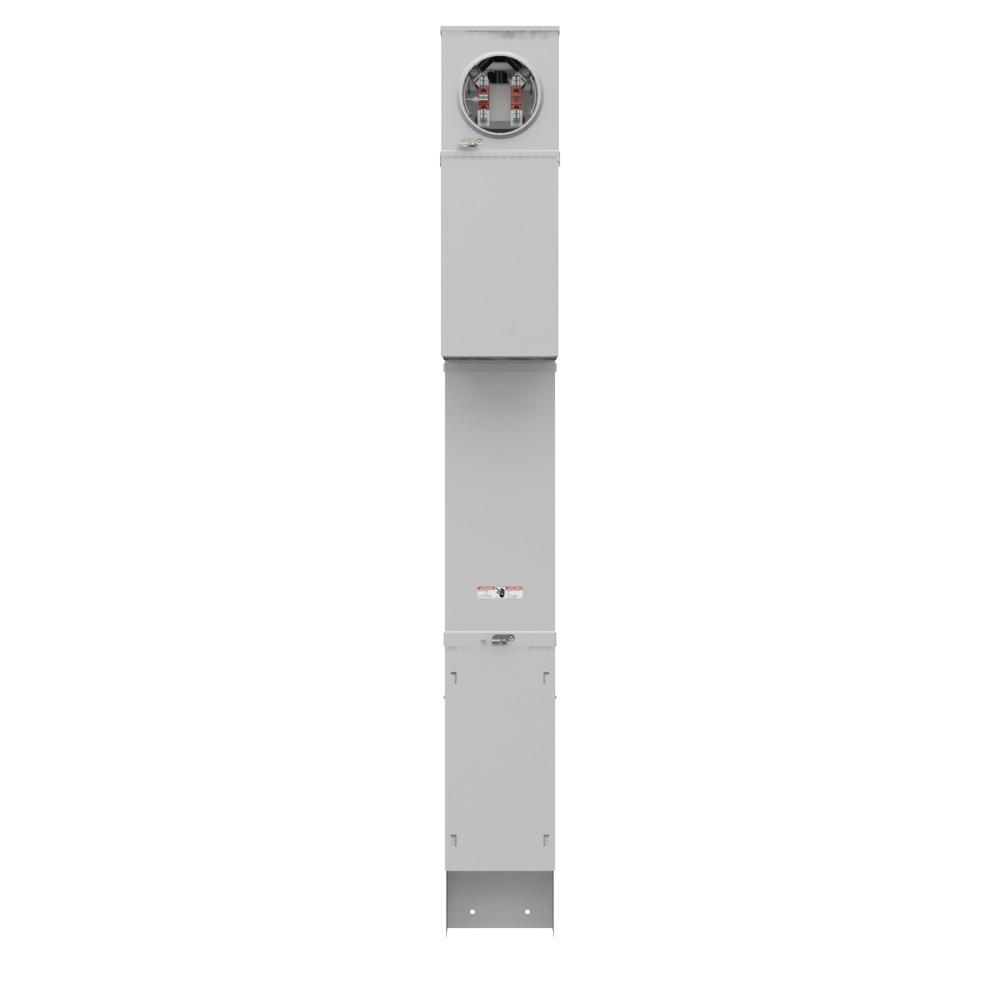

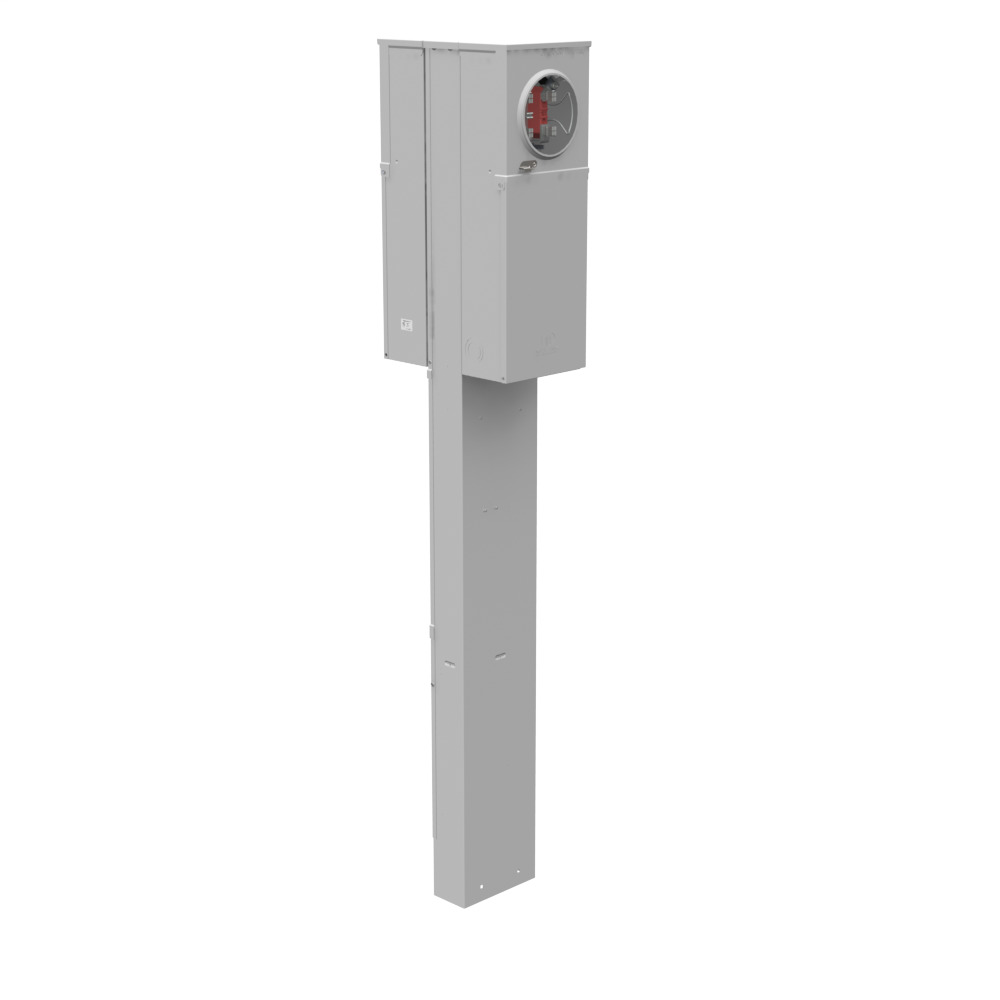

4 Terminal Ringless Plain Top Horn Bypass 2-200 Ampere Main Breaker Double Pedestal Direct Bury Alliant Energy
- MFR:
- Milbank
- MFR #:
- U5137-O-200S-ALT
- UPC:
- 784572496385
- Item #:
- 472901
4 Terminal Ringless Plain Top Horn Bypass 2-200 Ampere Main Breaker Double Pedestal Direct Bury Alliant Energy
- MFR #:
- U5137-O-200S-ALT
- UPC:
- 784572496385
- Item #:
- 472901
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$2,869.98
each
4 TERM RNGLS PLAIN TOP HRN BYPS 2-200 AMP MN BRKR DBL PED DIR BURY ALLIANT ENERGY
Manuals and Documentation
| Catalog Number | U5137-O-200S-ALT |
| Manufacturer | Milbank |
| Brand | Milbank |
| Country of Origin | United States |
| Made in USA | Yes |
| Amperage Rating | 200 |
| Application | Mobile Home Power |
| Bypass Type | Horn |
| Cable Entry | Underground |
| Enclosure | G90 Galvanized Steel with Powder Coat Finish |
| Frequency Rating | 60 Hz |
| Insulation | Glass Polyester |
| Material | G90 Galvanized Steel With Powder Coat Finish |
| Mounting | Pedestal |
| Number of Jaws | 4 Terminal |
| Phase | 1 |
| Special Features | Alliant Energy |
| Standard | Type 3R |
| UPC | 784572496385 |
| GTIN | 00784572496385 |
| Item Type | Ringless Meter Socket |
| Length | 16.063 |
| Length UOM | Inch |
| Width | 9.688 |
| Width UOM | Inch |
| Height | 80.063 |
| Height UOM | Inch |
| Size | 16.063L x 9.688W x 80.063H |
| Terminals | Double Mechanical |
| Voltage Rating | 240 V |
