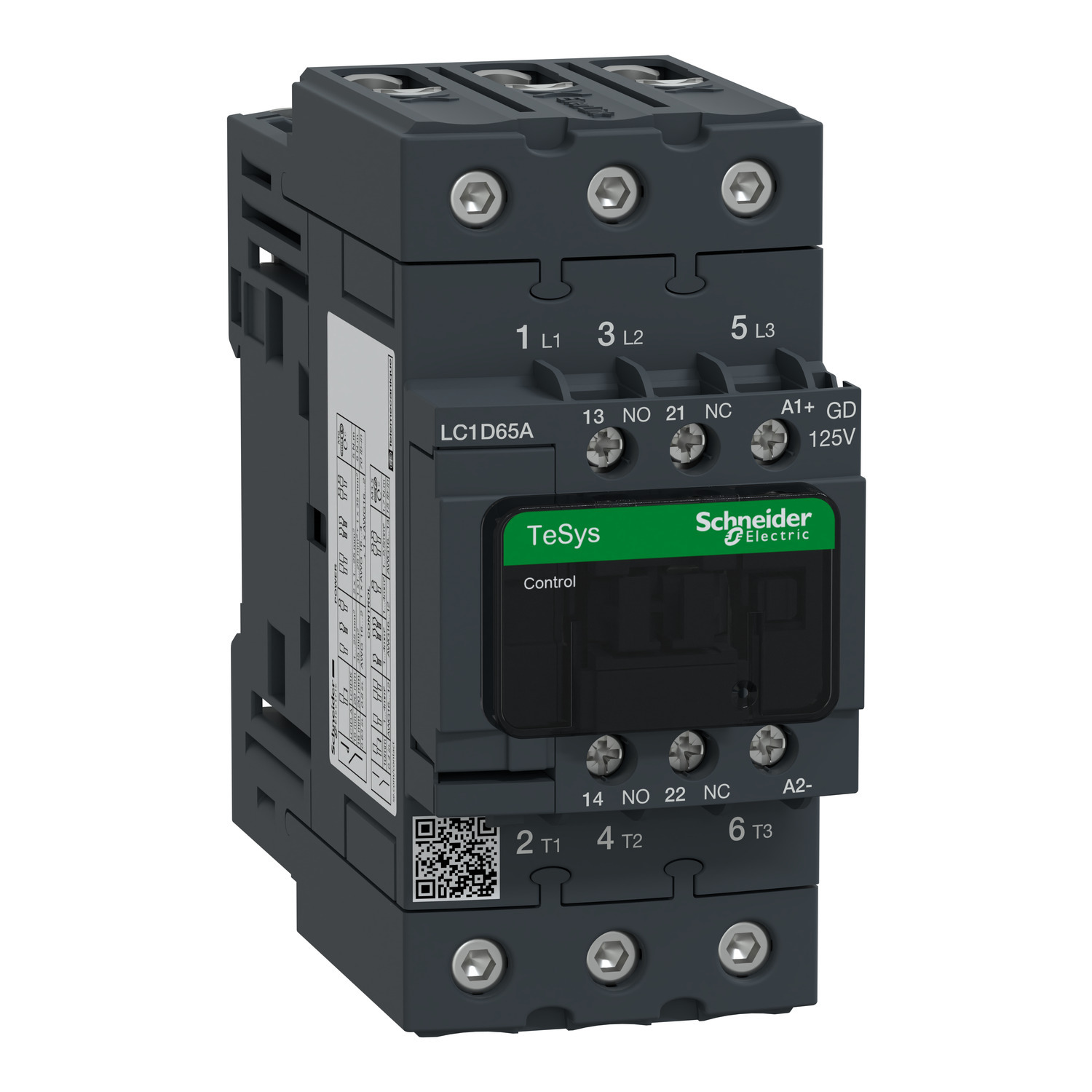

LC1D65AGD LC1D Contactor, 125 V DC V Coil, 65 A, 3NO Contact, 3 Poles
- MFR:
- Schneider Electric
- MFR #:
- LC1D65AGD
- Item #:
- 472818
LC1D65AGD LC1D Contactor, 125 V DC V Coil, 65 A, 3NO Contact, 3 Poles
- MFR #:
- LC1D65AGD
- Item #:
- 472818
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$590.52
each
TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 65A/690V AC-3 (30kW@400V). It provides a 125V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connection by EverLink BTR screw connectors, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60C, it procures high reliability and durability. Compact (55mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
Manuals and Documentation
| Catalog Number | LC1D65AGD |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| Application | Motor control;resistive load |
| Coil Voltage | 125 V DC |
| Connection | Control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end;control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end;control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end;control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end;control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end;control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end;power circuit: EverLink BTR screw connectors 1 1-35 mm² - cable stiffness: flexible without cable end;power circuit: EverLink BTR screw connectors 2 1-25 mm² - cable stiffness: flexible without cable end;power circuit: EverLink BTR screw connectors 1 1-35 mm² - cable stiffness: flexible with cable end;power circuit: EverLink BTR screw connectors 2 1-25 mm² - cable stiffness: flexible with cable end;power circuit: EverLink BTR screw connectors 1 1-35 mm² - cabl |
| Contact Configuration | 1 NO + 1 NC;3 NO;Mechanically linked 1 NO + 1 NC IEC 60947-5-1;mirror contact 1 NC IEC 60947-4-1 |
| Mounting | Rail Plate |
| Operating Cycles | 25...400 Hz |
| Special Features | Built-in bidirectional peak limiting diode suppressor |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=6969090&lang=en-us |
| GTIN | 03389118328433 |
| Item Type | Contactor |
