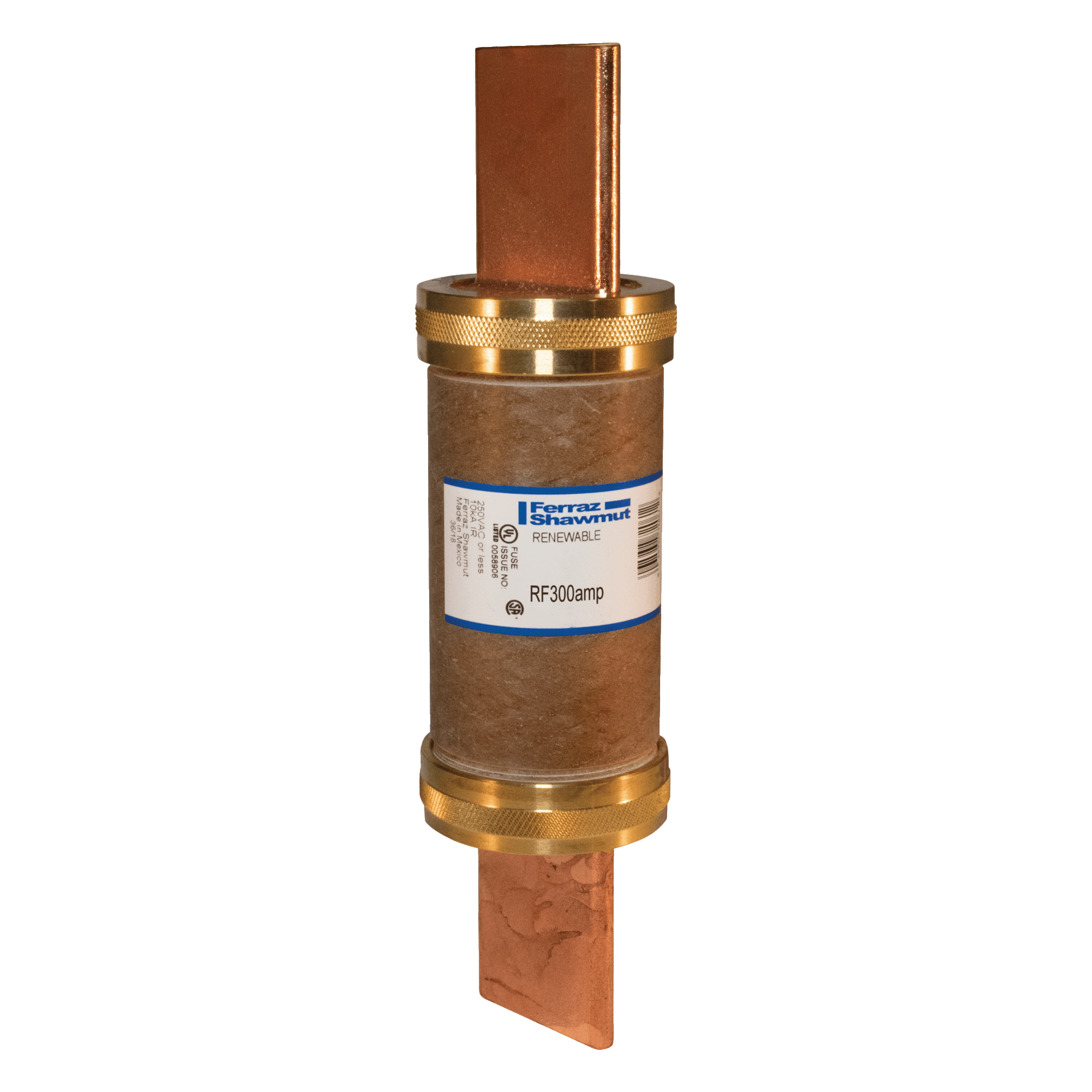

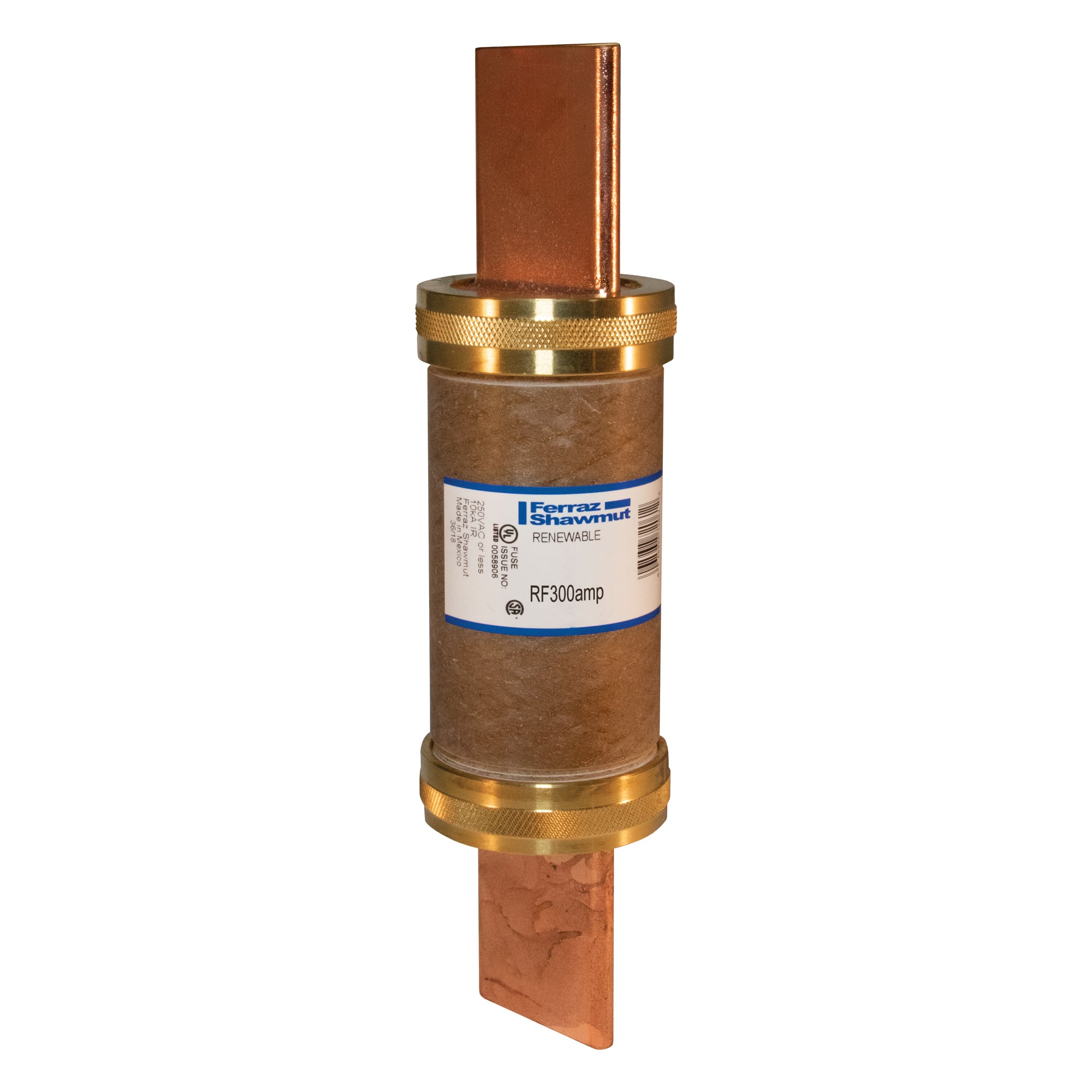

RF300 RF Series Fast Acting Low Voltage North American Style Renewable Fuse, 300 A, 250 V AC, 10 kA Interrupt, H Class, Cylindrical Body
- MFR:
- Mersen
- MFR #:
- RF300
- UPC:
- 068938720575
- Item #:
- 471702
RF300 RF Series Fast Acting Low Voltage North American Style Renewable Fuse, 300 A, 250 V AC, 10 kA Interrupt, H Class, Cylindrical Body
- MFR #:
- RF300
- UPC:
- 068938720575
- Item #:
- 471702
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Fuse RF - Class H - Fast-Acting 250VAC 300A Blade
Manuals and Documentation
| Catalog Number | RF300 |
| Manufacturer | Mersen |
| Brand | Mersen |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 300 |
| Application | General purpose loads where short circuits are 10,000 amperes or less |
| Connection | Blade |
| Interrupt Rating | 10 KA |
| Mounting | Clip |
| Special Features | Knurled bushings for ease of disassembly Rugged construction for maximum service life Precision die-cut renewal links renew quickly and give repeatable performance |
| Standard | UL listed to standard 248-7 File E2137 CSA certified to standard C22.2 no. 248.7 |
| UPC | 068938720575 |
| GTIN | 00068938720575 |
| Item Type | Renewable Fuses |
| Size | 8.63 x 2.06 |
| Voltage Rating | 250 |
