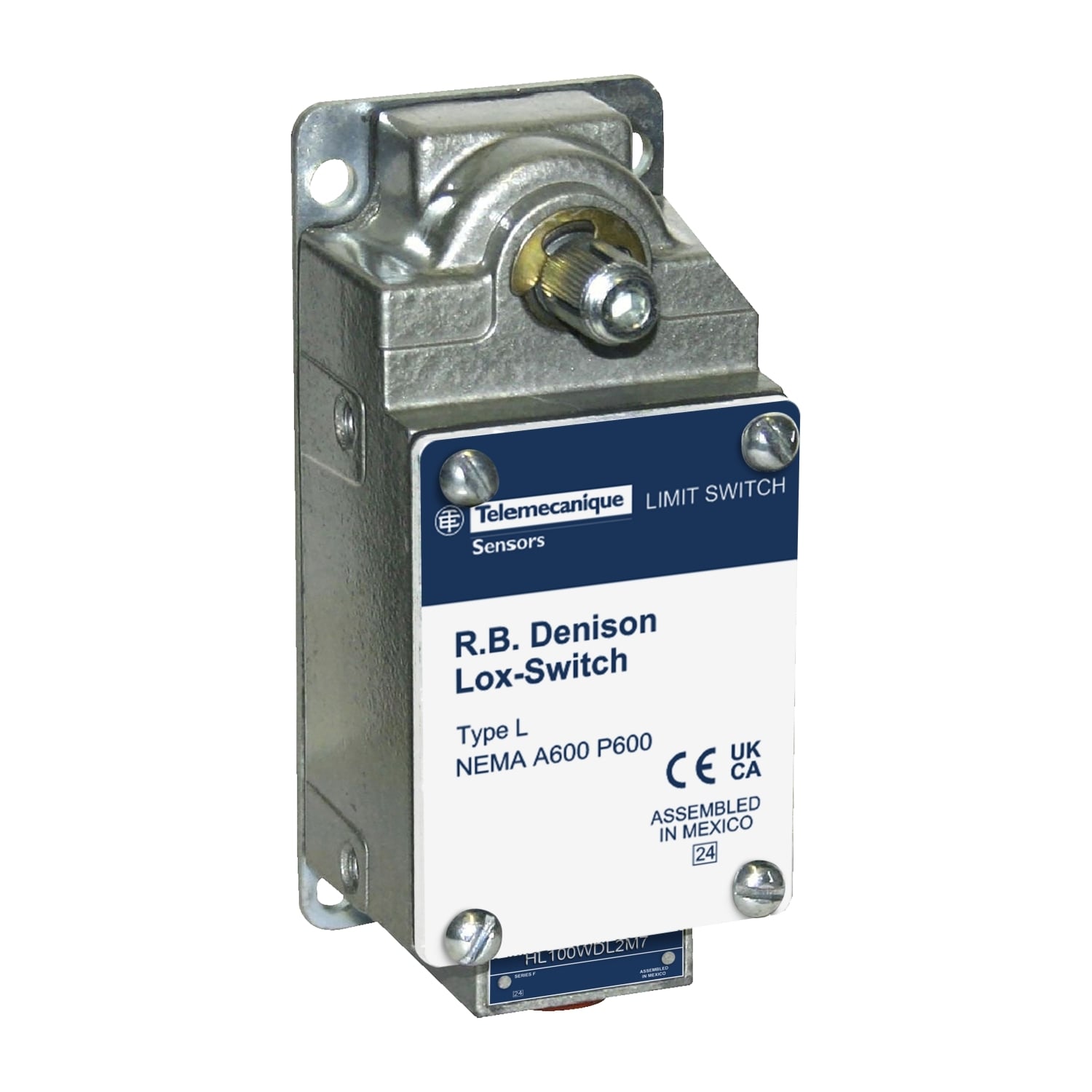

HL100WN2M16 Fixed Severe Duty Limit Switch, 600 V AC, 20 A, Spring Return Actuator, 2NO 2 Form X DPST-DB Contact, 2 Poles
- MFR:
- Telemecanique Sensors
- MFR #:
- HL100WN2M16
- UPC:
- 785901668077
- Item #:
- 471494
HL100WN2M16 Fixed Severe Duty Limit Switch, 600 V AC, 20 A, Spring Return Actuator, 2NO 2 Form X DPST-DB Contact, 2 Poles
- MFR #:
- HL100WN2M16
- UPC:
- 785901668077
- Item #:
- 471494
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$601.83
each
LIMIT SWITCH
Manuals and Documentation
| Catalog Number | HL100WN2M16 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| Action | CW and CCW;from left or right;Lateral approach;Slow-break, break before make |
| Actuator | spring return without operating lever |
| Amperage Rating | 20 |
| Application | Mill switch |
| Connection | Screw-clamp terminals AWG 22...AWG 12 |
| Contact Configuration | 2 NO;Form XX |
| Contact Rating | NEMA A600/P600 |
| Enclosure | NEMA 1 NEMA TYPE 250-NEMA 2 NEMA TYPE 250-NEMA 4 NEMA TYPE 250-NEMA 12 NEMA TYPE 250-NEMA 13 NEMA TYPE 250 |
| Mounting | By The Body |
| Number of Poles | 2 |
| Special Features | FIXED,NEUTRAL POSITION |
| Standard | 10 GN 10-55 HZ)IEC 60068-2-6,30 GN 9 MS IEC 60068-2-27,IP67 IEC 60529,CLASS 0 IEC 61140 |
| UPC | 785901668077 |
| GTIN | 00785901668077 |
| Item Type | Limit switch |
| Size | 2.25 IN,3.41 IN,4.95-4.95 IN |
| Operating Temperature | 0-350 A Degrees F |
| Voltage Rating | 600V |
