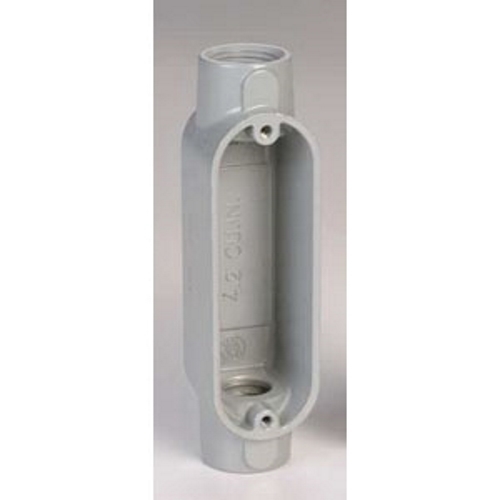

34 Form 85 Unilet NoThread
- MFR:
- Appleton Electric
- MFR #:
- C75T-A
- UPC:
- 781381164450
- Item #:
- 47139
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$50.58
each
Form 85 UNILETS Type C Conduit Outlet Body, Hub Size: 3/4 IN, Form: 85, Length: 5.63 IN, Width: 1.56 IN, Height: 1.63 IN, Material: Pressure Cast Aluminum, Finish: Epoxy Powder Coat, Connection: Set-Screw, Standard: UL 514A, UL 514B, UL Fi
Manuals and Documentation
| Catalog Number | C75T-A |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | India |
| Made in USA | No |
| Application | For Use With EMT |
| Connection | Set-Screw |
| Finish | Epoxy Powder Coat |
| Form | 85 |
| Hub Size | 3/4 IN |
| Material | Pressure Cast Aluminum |
| Special Features | Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Smooth, rounded integral bushings in hubs protect conductor insulation; Roomy interiors: more wiring space; Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity; Form 85 copperfree aluminum Unilets are lightweight, self oxidizing, self-renewing and offer a high corrosion resistance; Lightweight aluminum facilitates shipping, handling and installing; Sizes with flat-back design ideal where fitting is mounted flat against surface; Internal volume and maximum wire capacity clearly marked on castings; Set screw type has slotted hex head steel hardened cup-point set screw for EMT; Wiring capacity: 7 CU-IN as per NEC 314.16(A) |
| Standard | UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1 |
| UPC | 781381164450 |
| GTIN | 00781381164450 |
| Item Type | Type C Conduit Outlet Body |
| Length | 5.63 |
| Length UOM | Inch |
| Width | 1.56 |
| Width UOM | Inch |
| Height | 1.63 |
| Height UOM | Inch |
