Discontinued

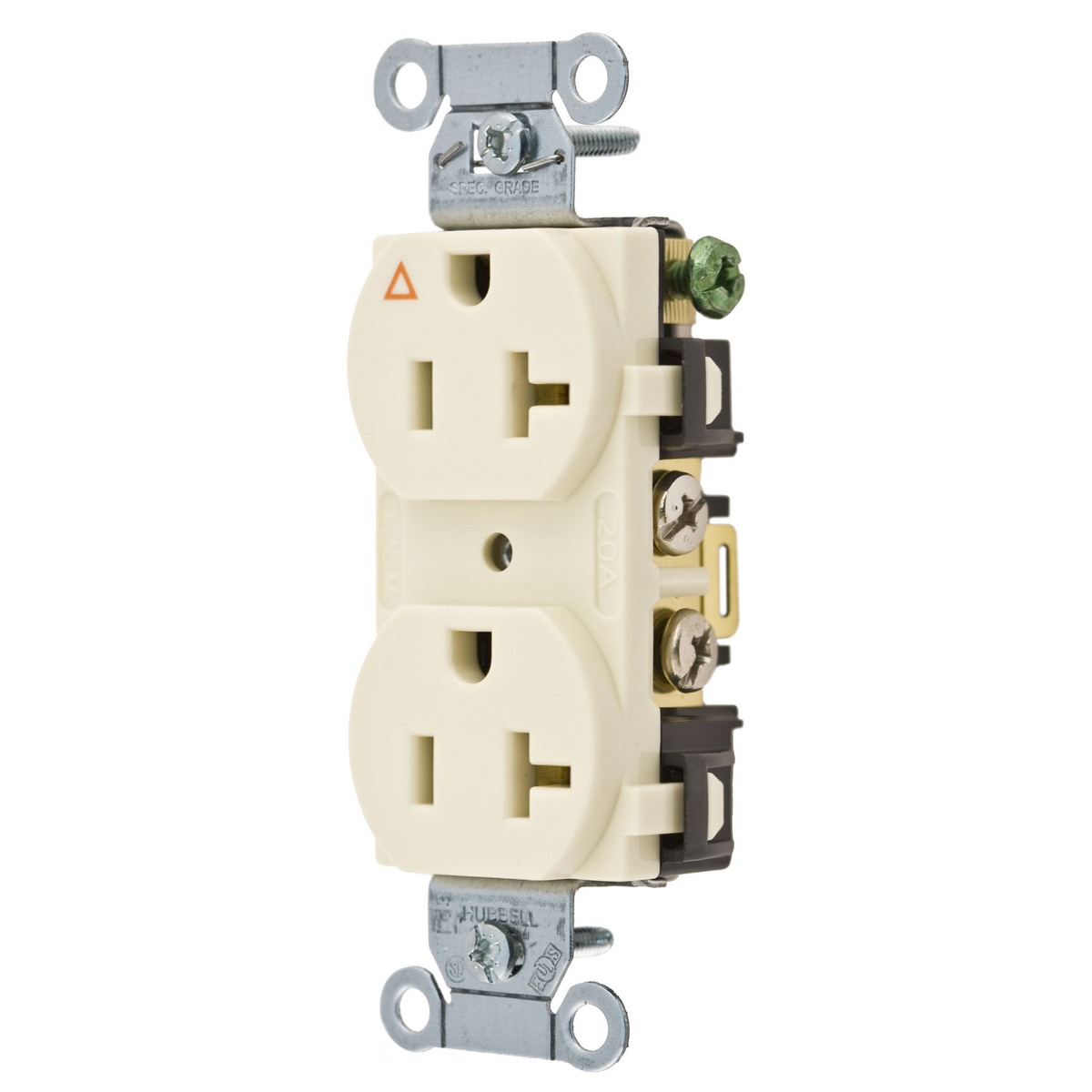

IG20CRAL 1-Phase Corrosion-Resistant Duplex Isolated Ground Standard Traditional Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Almond
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- IG20CRAL
- UPC:
- 783585147666
- Item #:
- 470662
Discontinued
IG20CRAL 1-Phase Corrosion-Resistant Duplex Isolated Ground Standard Traditional Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Almond
- MFR #:
- IG20CRAL
- UPC:
- 783585147666
- Item #:
- 470662
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Manuals and Documentation
| Catalog Number | IG20CRAL |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | China |
| Made in USA | No |
| Amperage Rating | 20 |
| Application | Commercial Specification Grade |
| Color | Almond |
| Material | Nylon |
| NEMA Rating | 5 |
| Number of Poles | 2 |
| Number of Wires | 3-Wire |
| Phase | 1 |
| Special Features | Isolated Ground |
| Standard | Certified to CSA C22.2, No. 42;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 |
| UPC | 783585147666 |
| GTIN | 00783585147666 |
| Item Type | Standard Duplex |
| Size | 1.32 in x 1.06 in x 3.28 in |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Voltage Rating | 125 |
| Wattage | 2,500 W |
| Wire Size | #12 AWG to #10 AWG |
