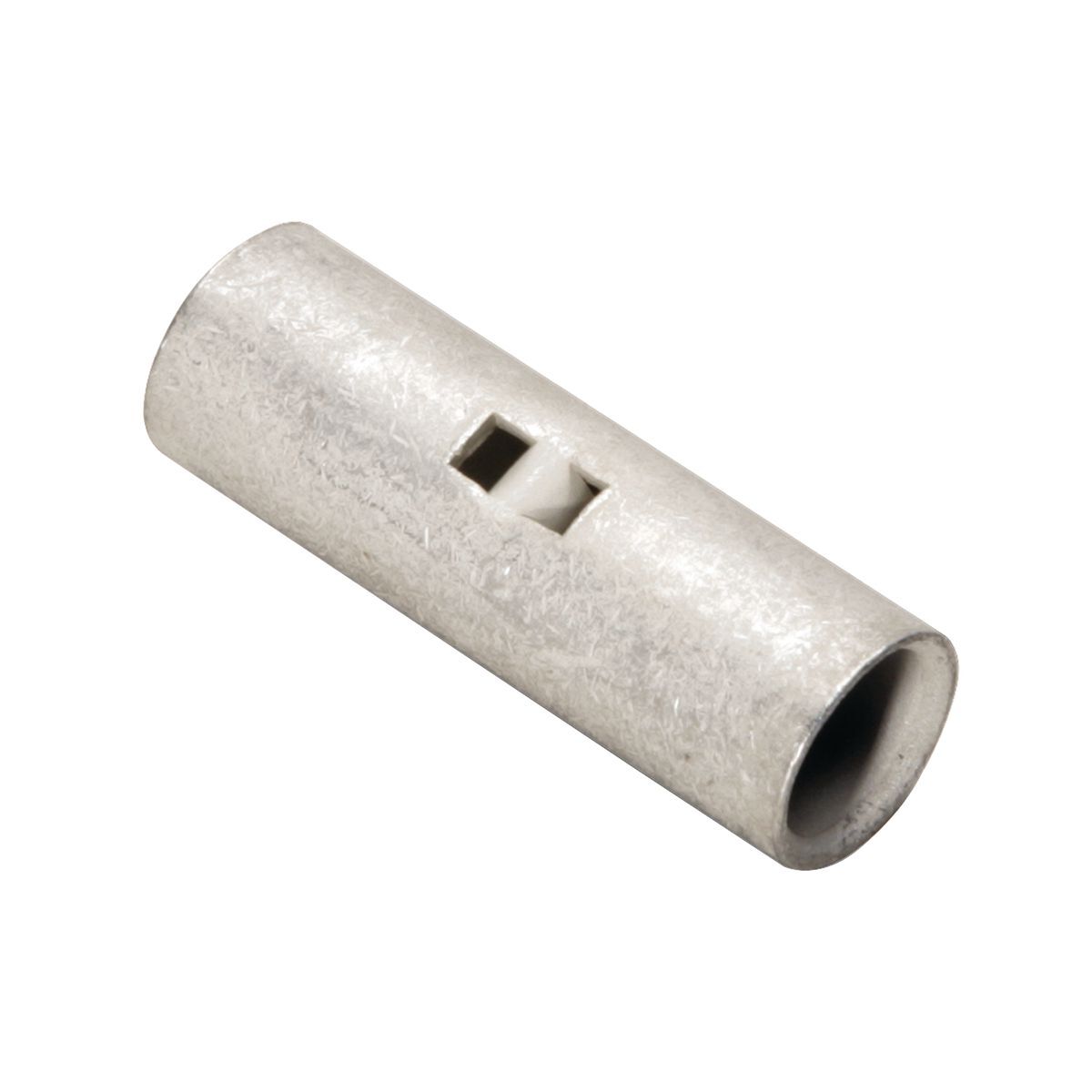

YRV8CV10L Type YRV-L Insulated Reducer Butt Splice With Inspection Window, 8 AWG Conductor, 1.15 in L, Chamfered Barrel, Copper
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- YRV8CV10L
- UPC:
- 781810026380
- Item #:
- 470474
YRV8CV10L Type YRV-L Insulated Reducer Butt Splice With Inspection Window, 8 AWG Conductor, 1.15 in L, Chamfered Barrel, Copper
- MFR #:
- YRV8CV10L
- UPC:
- 781810026380
- Item #:
- 470474
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$43.16
each
Manuals and Documentation
| Catalog Number | YRV8CV10L |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | For Splicing Two Different Size Wires, Aircraft Applications (Flexible Cables) |
| Material | Copper |
| Special Features | Features: The HYREDUCER Is A Connector For Splicing Two Different Size Wires, The Larger Conductor Is Inserted First And Butts Against The Center Of The Connector Where The Smaller Barrel Begins, Constructed Of Pure Electrolytic Copper Tubing For Maximum Conductivity, Tin Plated To Resist Corrosion, The HYREDUCER Accommodates A Wide Range Of Cable Sizes, Wire Strip Length: Side A: 0.44 IN, Side B: 0.53 IN, Tools, Die Set Catalog Number, And (number Of Crimps): Side A And B: Y8MRB-1, MR20, MR8G98, MR8-9Q Tool |
| UPC | 781810026380 |
| GTIN | 00781810026380 |
| Item Type | Reducing Splices |
