HPS

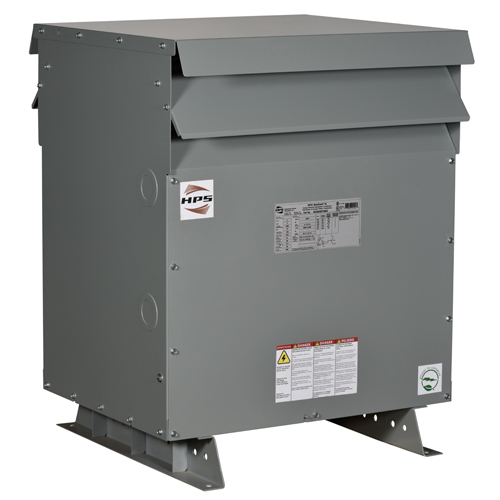

SK3A0075KB3S Sentinel K Shielded K-Factor Transformer, 480 Delta V AC Primary, 208Y/120 VAC Secondary, 75 kVA Power Rating, 60 Hz, 3

MFR:
Hammond Power Solutions
MFR #:
SK3A0075KB3S
UPC:
803423126629
Item #:
468538

Availability

Location Available Qty
Available Available to Order
$14,560.23 each

Optional infrared windows available

Manuals and Documentation
Catalog Number SK3A0075KB3S
Manufacturer Hammond Power Solutions
Brand HPS
Country of Origin Multiple
Made in USA No
Application Addresses the overheating problems due to harmonics associated with non-linear loads where drives, personal computers, telecommunications equipment, broadcasting equipment and other similar power electronics are found in high concentrations.
Enclosure DH3-N3R - Indoor or Outdoor
Frequency Rating 60 HZ
Mounting Ceiling
Number of Taps ST-20 compliant
Phase 3
Primary Voltage 480D V
Secondary Voltage 208Y/120 V
Special Features Meets current DOE 10 CFR part 431 (2016) and C802.2 efficiencies in an outdoor type enclosure. Smaller kVA sizes have standard input and/or output lugs, knockouts, and wall mounting brackets to save installation costs.
Standard CSA, UL
RoHS URL https://www.ideadigitalcontent.com/files/11516/HPS_Declaration_of_RoHs_Compliance.pdf
UPC 803423126629
GTIN 00803423126629
Item Type Transformer > Distribution > DOE 2016 Energy Efficient > K Factor > Three Phase
Length 27
Length UOM Inch
Width 28.25
Width UOM Inch
Height 36
Height UOM Inch
Temperature Rating Typical 30 Average/ 40 Maximum DEG C
