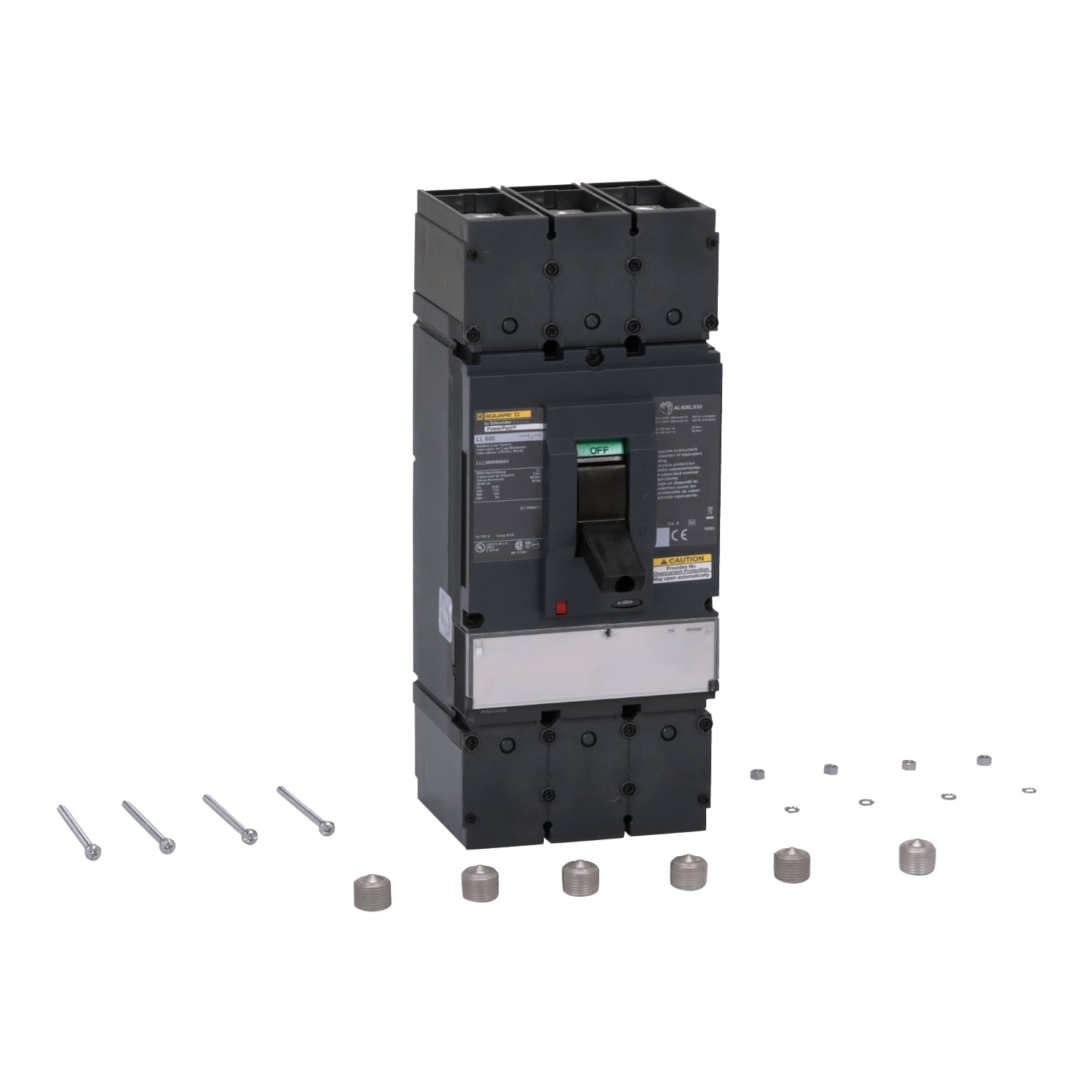

LLL36000S60X Molded Case Circuit Breaker, 600 Amp, 3 Pole, 600V
LLL36000S60X Molded Case Circuit Breaker, 600 Amp, 3 Pole, 600V
| Location | Available Qty |
|---|---|
| Available | Available to Order |
PowerPacT L-Frame automatic switches are a disconnect device and can be used to open and close a circuit under normal operating conditions. The automatic switches are similar in construction, use the same accessories, and offer the same connection possibilities as the L-Frame circuit breaker version. The switches have a factory set, nonadjustable trip point calibrated to protect the molded case switch. The automatic switch can make and break its rated current. PowerPacT L-Frame switches are available in unit mount, I-Line, plug in, or drawout constructions. This switch has lugs on both the line and load sides. This PowerPacT L, 600A, 3 pole, automatic switch has a short circuit withstand current rating of 50kA at 600VAC. PowerPacT L automatic switches comply to UL, CSA, ANCE, and IEC standards.
Manuals and Documentation
- Catalog Number
- LLL36000S60X
- Manufacturer
- Schneider Electric
- Brand
- SQUARE D
- Warranty Description
- Contractual Warranty:18 months
- Country of Origin
- Mexico
- Made in USA
- No
- Connection
- Lugs, line;lugs, load; x AWG 2/0...500 kcmil ( aluminium/copper )
- UPC
- 785901123743
- GTIN
- 00785901123743
- Depth
- 6.61 IN
