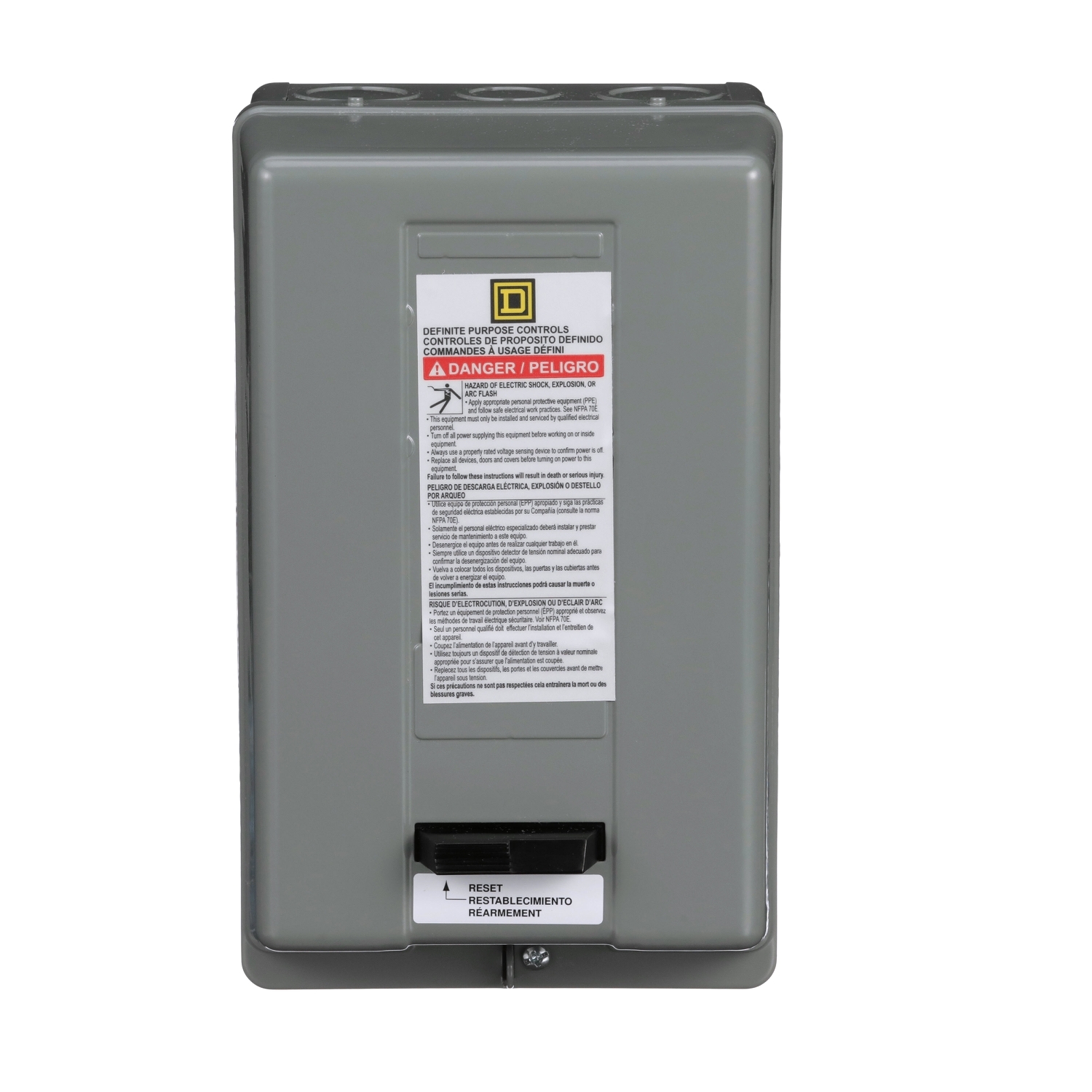

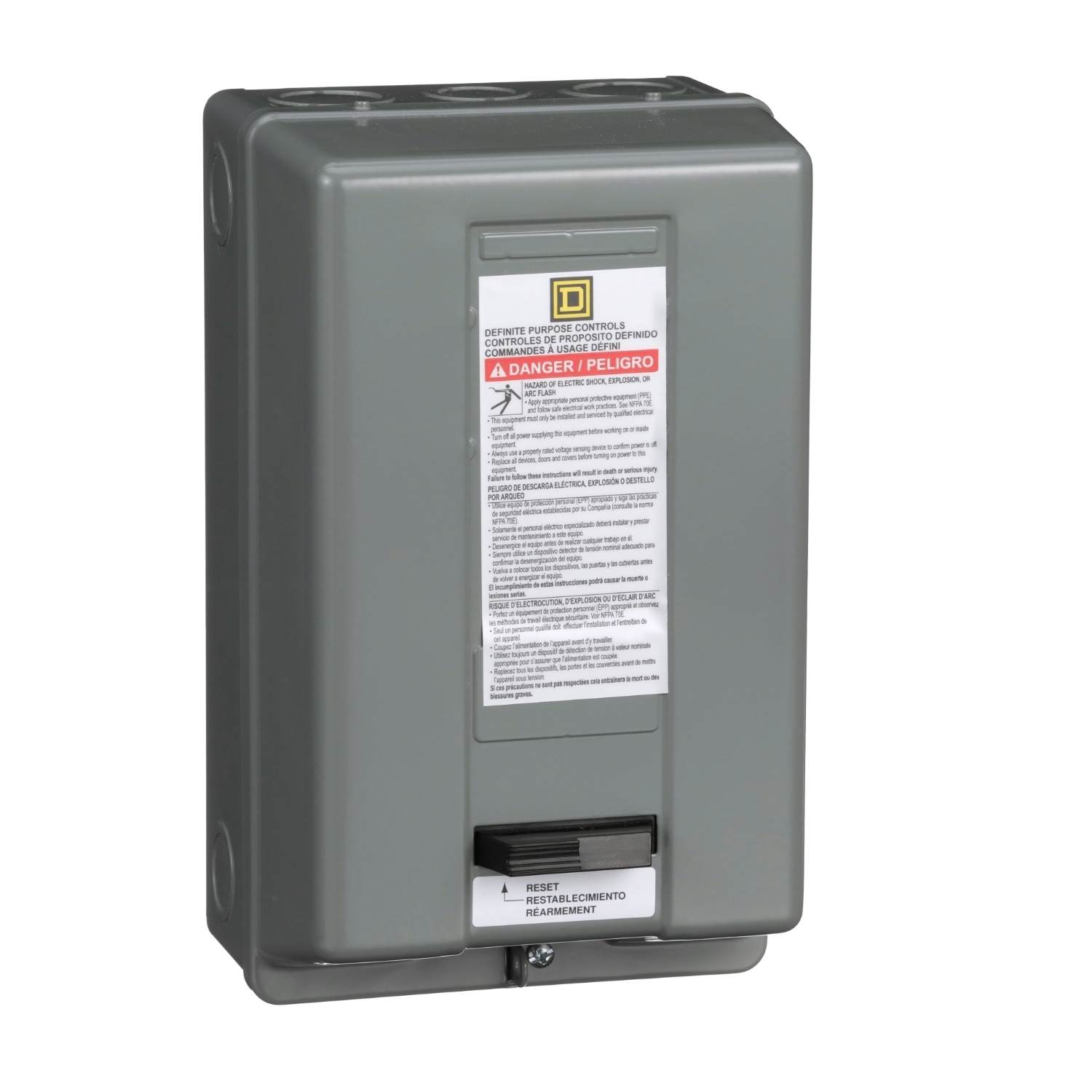

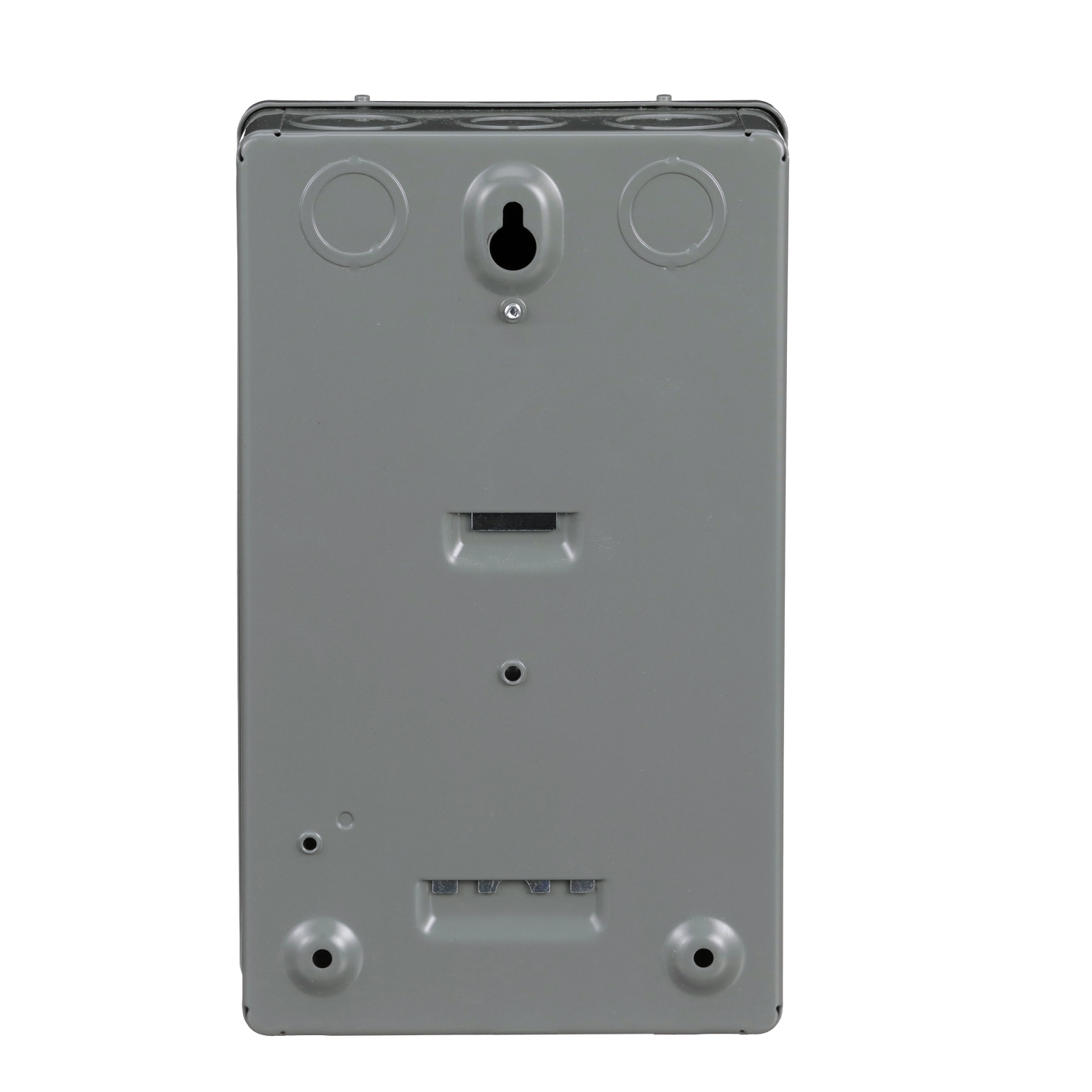

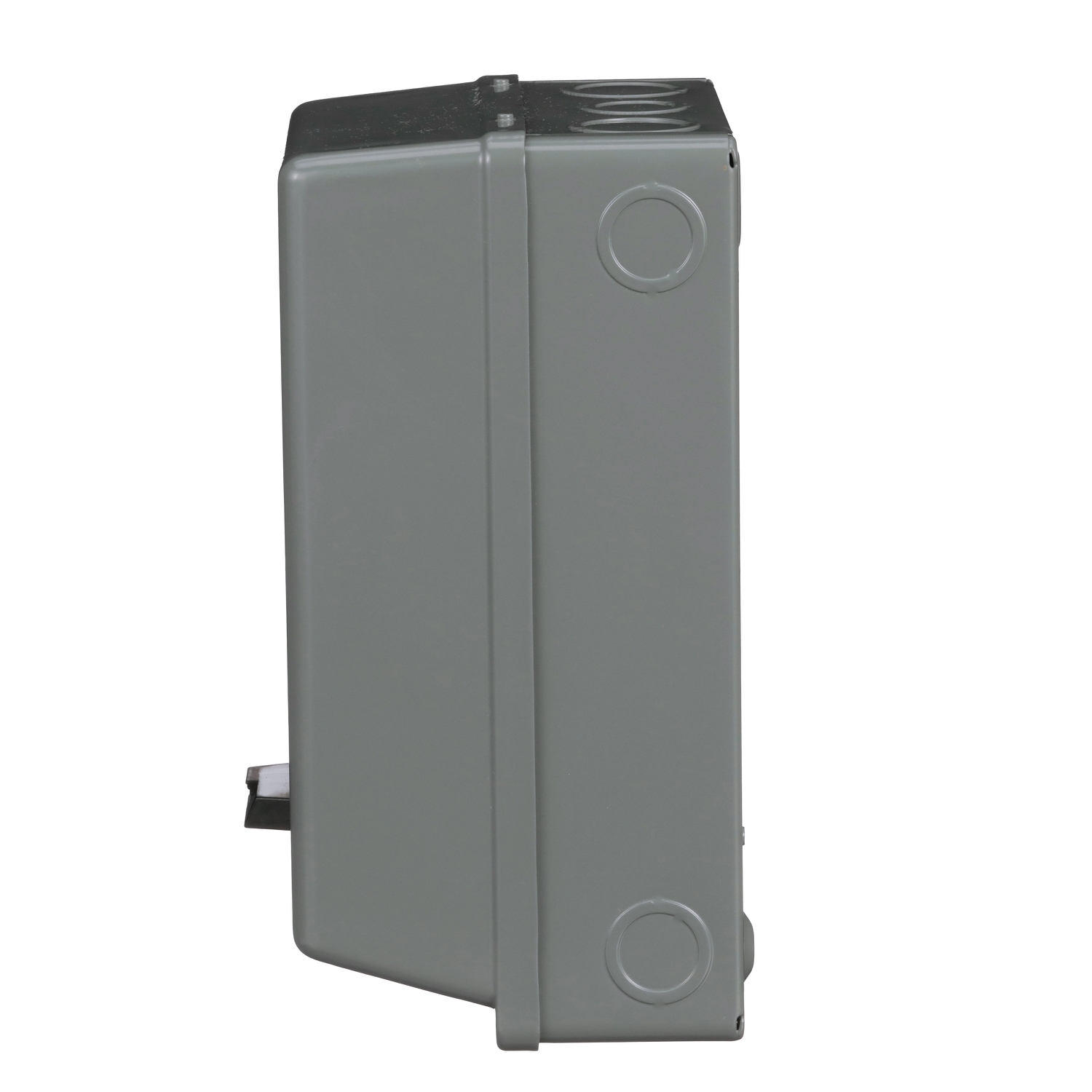

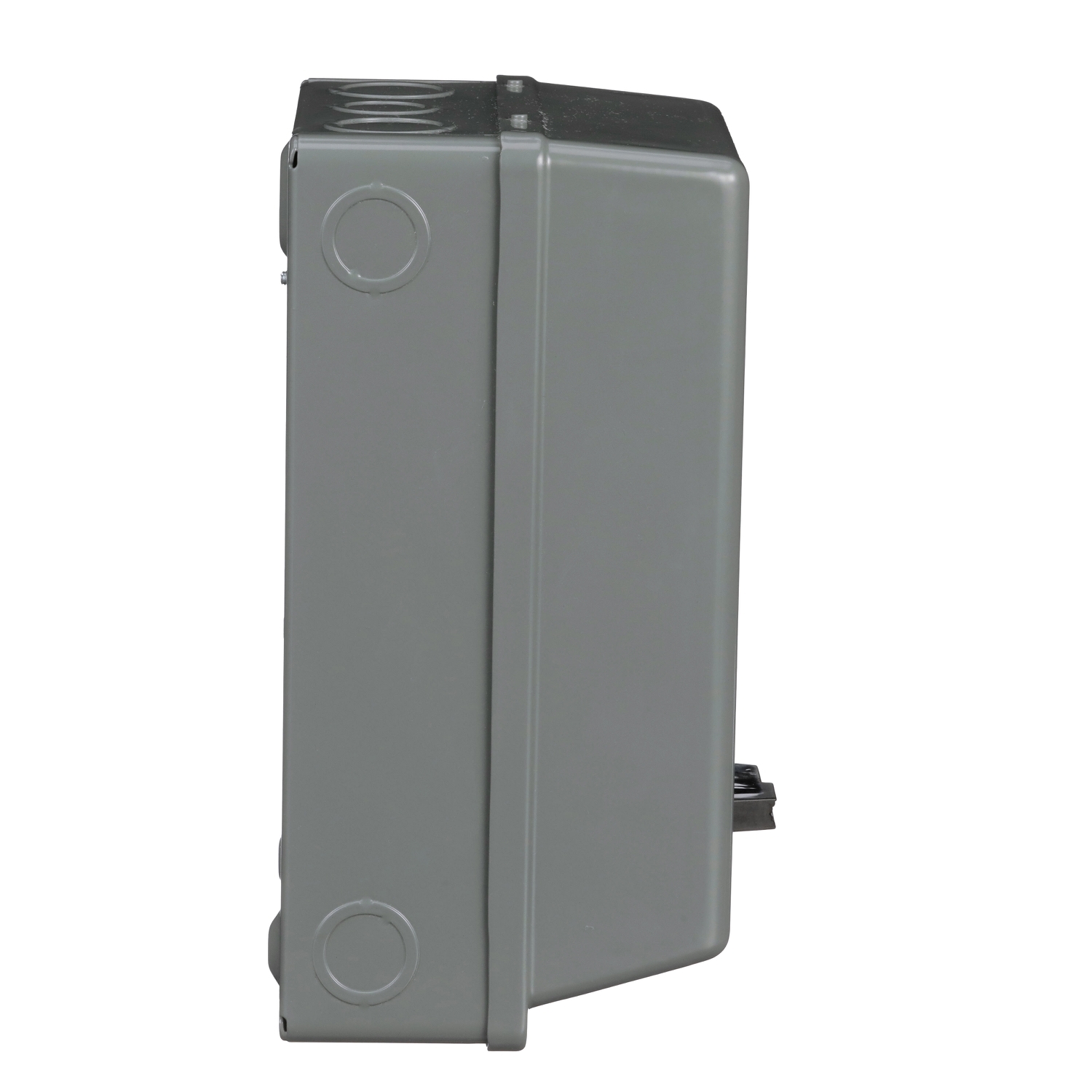

8911DPSG32V02 Type DPS Definite Purpose Starter, 110 V AC at 50 Hz/120 V AC at 60 Hz V Coil, 2 Poles, NEMA 1 Enclosure
- MFR:
- Schneider Electric
- MFR #:
- 8911DPSG32V02
- UPC:
- 785901002826
- Item #:
- 466848
8911DPSG32V02 Type DPS Definite Purpose Starter, 110 V AC at 50 Hz/120 V AC at 60 Hz V Coil, 2 Poles, NEMA 1 Enclosure
- MFR #:
- 8911DPSG32V02
- UPC:
- 785901002826
- Item #:
- 466848
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
8911 definite purpose starters are inexpensive starters for applications with relatively low duty cycles. Typical applications include air compressors, agricultural equipment, pumps, and HVAC equipment. This two pole definite purpose starter has a full load rating of 30 amperes. This starter has ratings of 2 HP at 115 VAC and 5 HP at 230 VAC single phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 110/120 VAC 50/60 Hz coil. The starter has straight through wiring. The melting alloy type overload relay uses Type B thermal units to sense over current conditions. A painted sheet steel NEMA 1 general purpose enclosure is used to protect this definite purpose starter. Enclosure is 8.50 inches tall, 4.84 inches wide and 4.02 inches deep. Auxiliary contacts are available for these starters. 8911DPS definite purpose starters are UL component recognized.
Manuals and Documentation
| Catalog Number | 8911DPSG32V02 |
| Manufacturer | Schneider Electric |
| Brand | SQUARE D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | United States |
| Made in USA | Yes |
| Phase | 1 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=561365&lang=en-us |
| UPC | 785901002826 |
| GTIN | 00785901002826 |
