BLACKBURN MECHANICAL

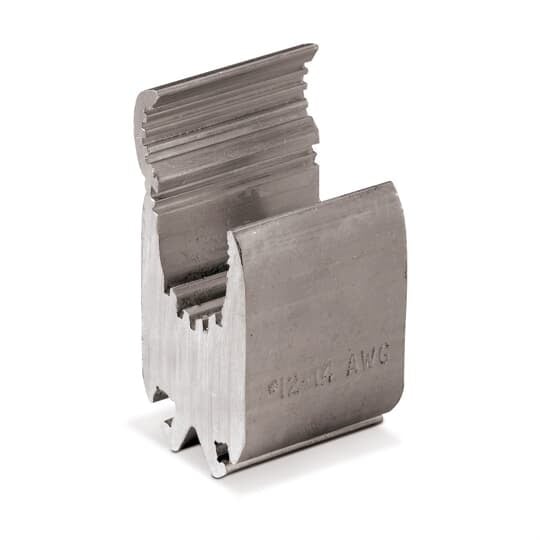

WR502 Blackburn Type H Wide Range Compression Tap Connector, H Shape, 4/0 to 3/0 AWG ACSR/Stranded Main/Run, 8 to 10 AWG Stranded, 6 to 10 AWG Solid Tap A, 12 to 14 AWG Stranded, 12 to 14 AWG Solid Tap B Tap, Aluminum

MFR:
ABB - Installation Products
MFR #:
WR502
UPC:
783786100378
Item #:
466410

Availability

Location Available Qty
Available Available to Order
$10.98 each
Catalog Number WR502
Manufacturer ABB - Installation Products
Brand BLACKBURN MECHANICAL
Country of Origin Mexico
Made in USA No
Application For Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors
Connection Compression
Material Aluminum
Number of Conductors 3
Special Features Made of 1350 Aluminum Alloy for high strength and high conductivity. Standard Compression tools and dies install all sizes - no special tools needed. Field-proven ribbed design enables excellent connector/conductor contact without distorting the conductor's shape. Fold-in tabs provide tab interlock as tool closes. Prefilled with oxide inhibitor held captive in the rib/connection area
Standard RUS Accepted. Complies with ANSI C119.4 Specifications
UPC 783786100378
GTIN 00783786100378
Item Type H-Type Compression Tap Connector
Size Length 1-1/2 inch
Environmental Conditions All Seasons / Conditions
Temperature Rating up to 90 C
Wire Size Main: 4/0 to 3/0 ACSR or 4/0 to 3/0 STR AWG , Tap A: #8 to #10 STR or #6 to #10 SOL AWG , Tap B: #12 to #14 STR or #12 to #14 SOL AWG
