V3 TeSys V Series High Performance Switch Body, For Use With Vario Series 63 A 3-Pole Switch Disconnector
- MFR:
- Schneider Electric
- MFR #:
- V3
- Item #:
- 46598
V3 TeSys V Series High Performance Switch Body, For Use With Vario Series 63 A 3-Pole Switch Disconnector
- MFR #:
- V3
- Item #:
- 46598
Availability
| Location | Available Qty |
|---|---|
| Available | 3 ea |
$236.32
each

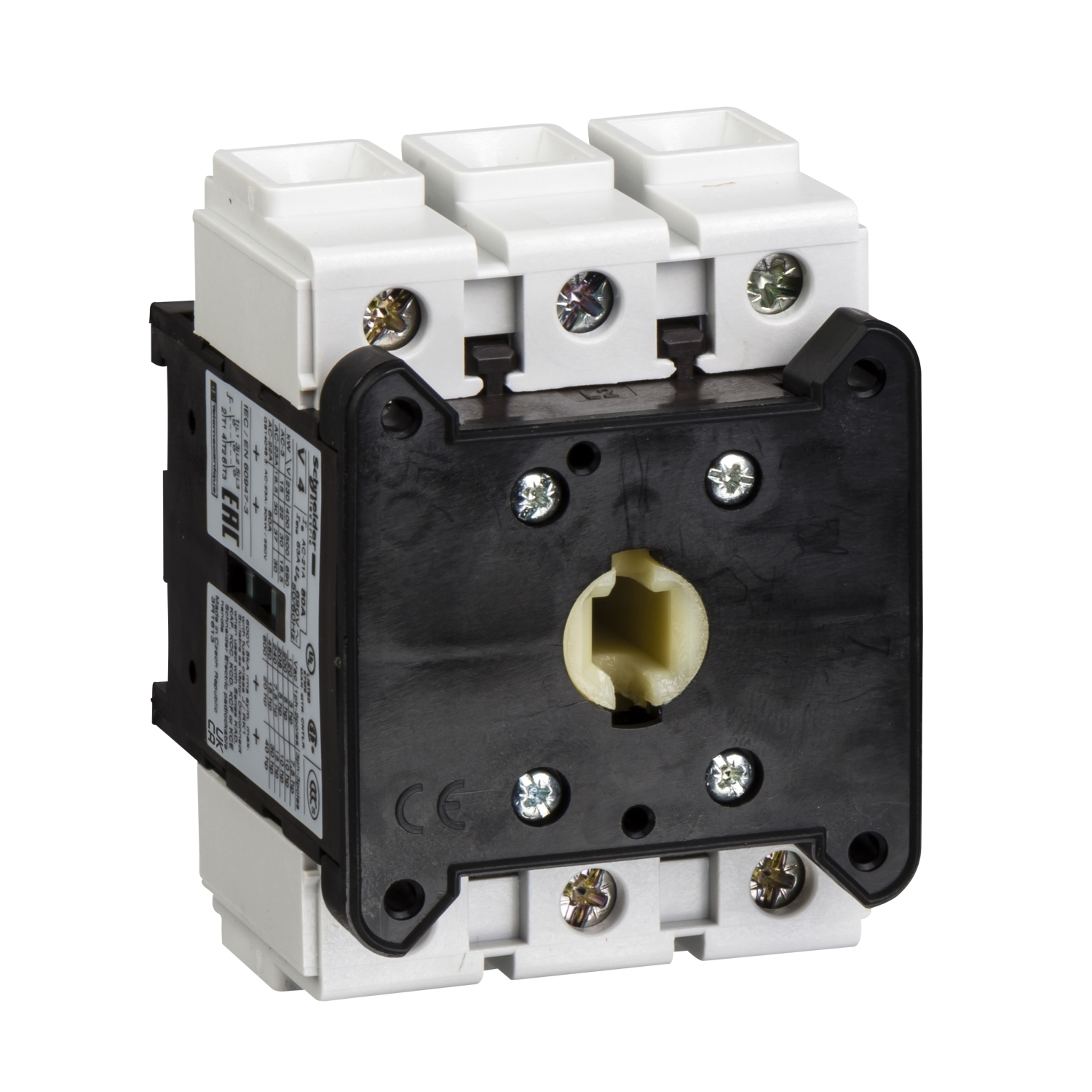

V3 is a 3-pole switch body for TeSys Vario switch-disconnector from Schneider Electric. Rated 63A 690V, it is used in motor applications up to 22kW@400V AC-23. To be equipped with an handle and extension shaft to form a main or emergency stop switch-disconnector. Add-on modules (main pole, neutral pole, earthing module, auxiliary contacts) can complete the assembly. Available worldwide, multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
Manuals and Documentation
| Catalog Number | V3 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Czech Republic |
| Made in USA | No |
| Connection | Power circuit screw clamp terminals 16-16 mm² flexible - with cable end;power circuit screw clamp terminals 25-25 mm² solid |
| Contact Configuration | 3 NO |
| Mounting | Rail Plate |
| Number of Poles | 3 |
| Special Features | High performance |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=643318&lang=en-us |
| GTIN | 03389110551716 |
| Item Type | Switch body |
