SCHNEIDER ELECTRIC

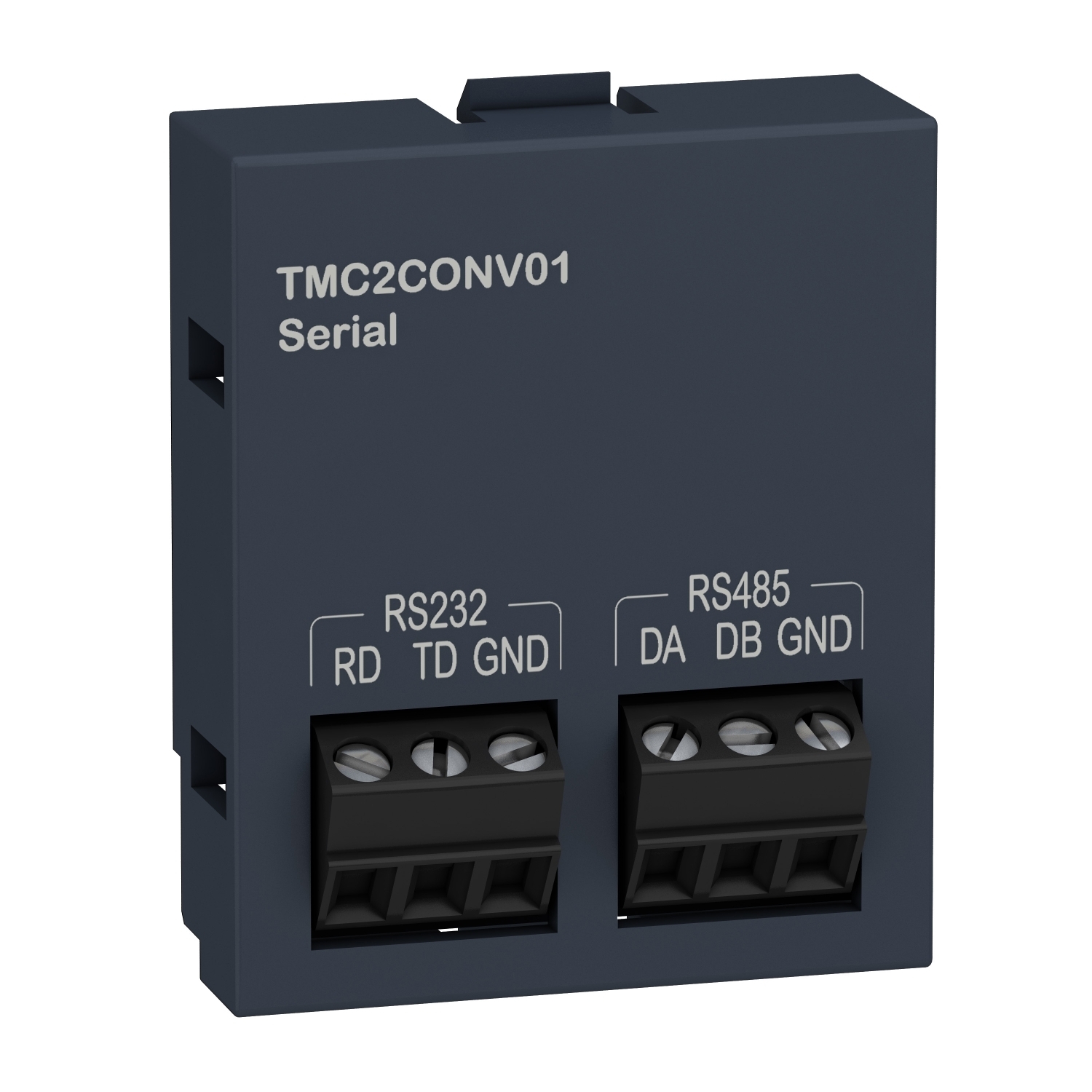

TMC2CONV01 Modicon Non-Isolated Serial Line Cartridge, For Use With Modicon M221 Logic Controller and RS232/RS485 Screw Terminal Block

MFR:
Schneider Electric
MFR #:
TMC2CONV01
Item #:
465454

Availability

Location Available Qty
Available Available to Order
$439.65 each

cartridge M221 - conveying 1 serial line - I/O extension This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This application cartridge is an option for Modicon M221C logic controller. It provides a serial link port for conveying application. The non isolated serial link type is Modbus master - slave. This product requires minimal installation and offers tremendous versatility. The serial line can be configured with Modbus RTU, Modbus ASCII or ASCII protocols. There is no insulation between lines and internal logic. It is equipped with non removable screw terminal for electrical connection. Its dimensions are 35mm (Width) x 15mm (Depth) x 41mm (Height). It weighs 0.015kg. This product is certified by CE, IACS E10, CSA, RCM, LR, ABS, DNV-GL, EAC and CULus. It meets EN/IEC 61010-2-201, EN/IEC 61131-2 and EN/IEC 60664-1 standards. This cartridge is compatible with Modicon M221C PLC.

Manuals and Documentation
Catalog Number TMC2CONV01
Manufacturer Schneider Electric
Brand SCHNEIDER ELECTRIC
Country of Origin Taiwan, Province Of China
Made in USA No
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=351707670&lang=en-us
GTIN 03606480649110
