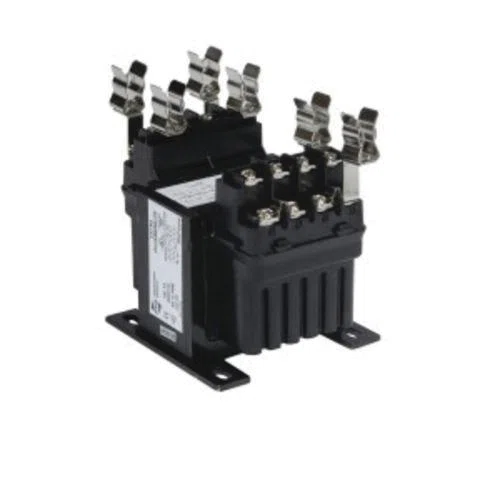

PH150MQMJ-FK Imperator Dry Type Encapsulated Machine Tool Rated Molded Control Transformer, 240/480 V AC Primary, 120/240 VAC Secondary, 150 VA Power Rating, 50/60 Hz, 1 Phase
- MFR:
- Hammond Power Solutions
- MFR #:
- PH150MQMJ-FK
- UPC:
- 803423081829
- Item #:
- 464267
PH150MQMJ-FK Imperator Dry Type Encapsulated Machine Tool Rated Molded Control Transformer, 240/480 V AC Primary, 120/240 VAC Secondary, 150 VA Power Rating, 50/60 Hz, 1 Phase
- MFR #:
- PH150MQMJ-FK
- UPC:
- 803423081829
- Item #:
- 464267
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$303.05
each
The HPS Imperator® series of machine tool rated industrial control transformers are specifically designed to meet the high inrush industrial applications where electromagnetic components such as relays, solenoids and magnetic motor starters are used. The HPS Imperator® unique terminal block design allows for the quick and easy installation of standard secondary or optional primary 13/32 x 1 1/2 midget/type CC fuse clips on every unit. This is the simplest and most inexpensive fusing installation provided on any industrial control transformer in the market today.
Manuals and Documentation
Features
- Constructed with high quality silicon steel laminations that provide optimum performance and reliability
- Encapsulated coils encased in a custom injection molded cover, protect coils and terminations from moisture, dirt and other industrial airborne contaminants
- Mounting feet made of heavy steel and welded or bolted to the core, these mounting feet provide superior strength in a compact design
- Combination slot/Philips #6 screw, complete with SEMS washer termination
- Potted control transformer for high inrush applications powering coils
- Terminal connection numbers molded into terminal block and correspond to nameplate and wiring diagrams, make connecting the HPS Imperator quick and simple
- SEMS washer allows for easy connection of supply or load wires with or without terminal connectors
- Innovative terminal block design provides for easy hook-up and installation of fuse clip
- Custom injection molded coil cover with its unique "fin shaped" design combine superior cooling properties with a clean, bold look
- 240 x 480, 230 x 460, 220 x 440 V primary volt
- 120 x 240, 115 x 230, 110 x 220 V secondary volt
- Encapsulated copper wound coils encased in a custom injection molded cover
- Secondary fuse clips, fuse clip mounting screws and primary and secondary voltage links/jumpers supplied with transformers
- 40 deg C maximum
| Manufacturer Part Number | PH150MQMJ-FK |
| Stripped Manufacturer Part Number | PH150MQMJFK |
| Brand | HPS |
| Manufacturer | Hammond Power Solutions |
| UPC | 803423081829 |
| Country Of Origin | CN |
| Dimensions | 4 in L x 4.94 in W x 3.81 in H |
| Enclosure Type | Open/Core and Coil |
| Mounting Type | Panel |
| Series | Imperator® |
| Temperature Rating | 30 deg C |
| Type | Dry Type Encapsulated Machine Tool Rated Molded |
| Alternative Part Number | 10061071 |
| Manufacturer Item Status | Active |
| Country | USA/Canada |
| Warranty | Lifetime |
| Standards Approvals | CSA/CE Marking | UL Listed | cULus Listed | RoHS Compliant |
| Application | Industrial, Automation, Panel Shops, Machines, Panel Boards, Solenoids, Control and Timer Applications |
| Includes | Factory Installed Primary and Secondary Fuse Clips |
| Connection Type | Screw |
| Frequency Rating | 50/60 Hz |
| Insulation | 105 deg C |
| Maximum Amperage Rating | 1.25/0.63 A |
| Phase | 1 |
| Power Rating | 150 |
| Primary Voltage | 240/480 V AC |
| Secondary Voltage | 120/240 V AC |
