Schneider Electric

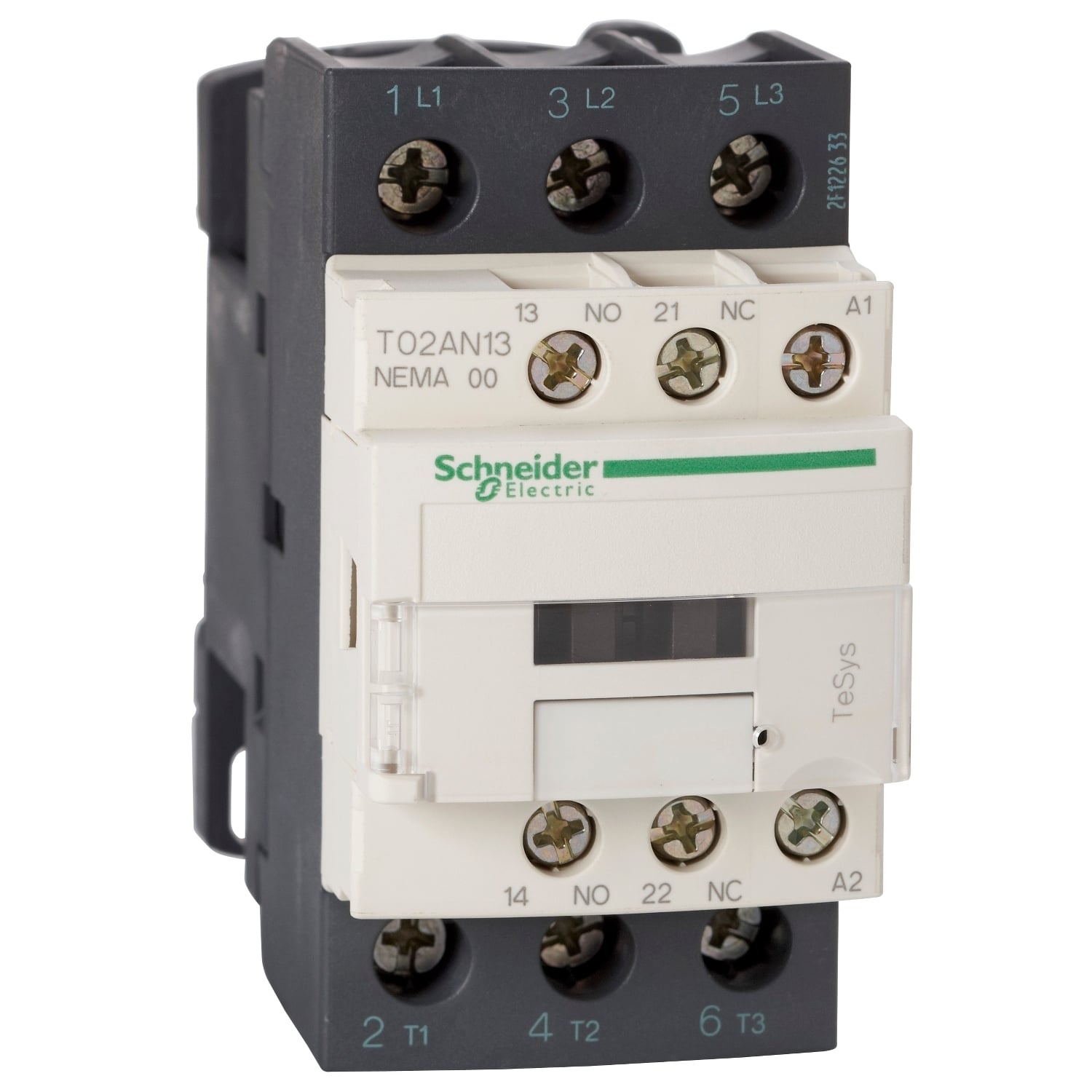

T02AN13B7 TeSys N 3-Phase Non-Reversing Contactor, 24 V AC V Coil, 1NO-1NC Contact, 3 Poles

MFR:
Schneider Electric
MFR #:
T02AN13B7
Item #:
462561

Availability

Location Available Qty
Available Available to Order
$241.77 each

TeSys N contactors and starters conform to NEMA ICS2 standards. The NEMA size is printed directly on the face of the contactor. This 3 pole NEMA size 00 nonreversing contactor mounts on 35mm DIN rail and has a 9 amperage continuous current rating. This contactor has 0.33 HP at 115 VAC and 1 HP at 230 VAC single phase ratings. The contactor also has ratings of 1.5 HP at 200 to 230 VAC and 2 HP at 460 and 575 VAC poly phase. The nonreversing contactor is wired for common control with a 24 VAC 50/60 Hz replaceable coil. Contactor has 1 normally open and 1 normally closed auxiliary contact. This contactor is not in an enclosure. This contactor is 3.34 inches tall, 1.76 inches wide and 3.66 inches deep. It weighs 0.92 lbs. The screw clamp terminals will accept power wires from 18 AWG to 8 AWG and control wires from 18 AWG to 10 AWG. This TeSys N contactor is UL listed and CSA Certified.

Manuals and Documentation
Catalog Number T02AN13B7
Manufacturer Schneider Electric
Brand Schneider Electric
Country of Origin France
Made in USA No
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=457159625&lang=en-us
GTIN 03606480573026
Width 1.76
Width UOM Inch
Height 3.34
Height UOM Inch
Depth 3.66 IN
