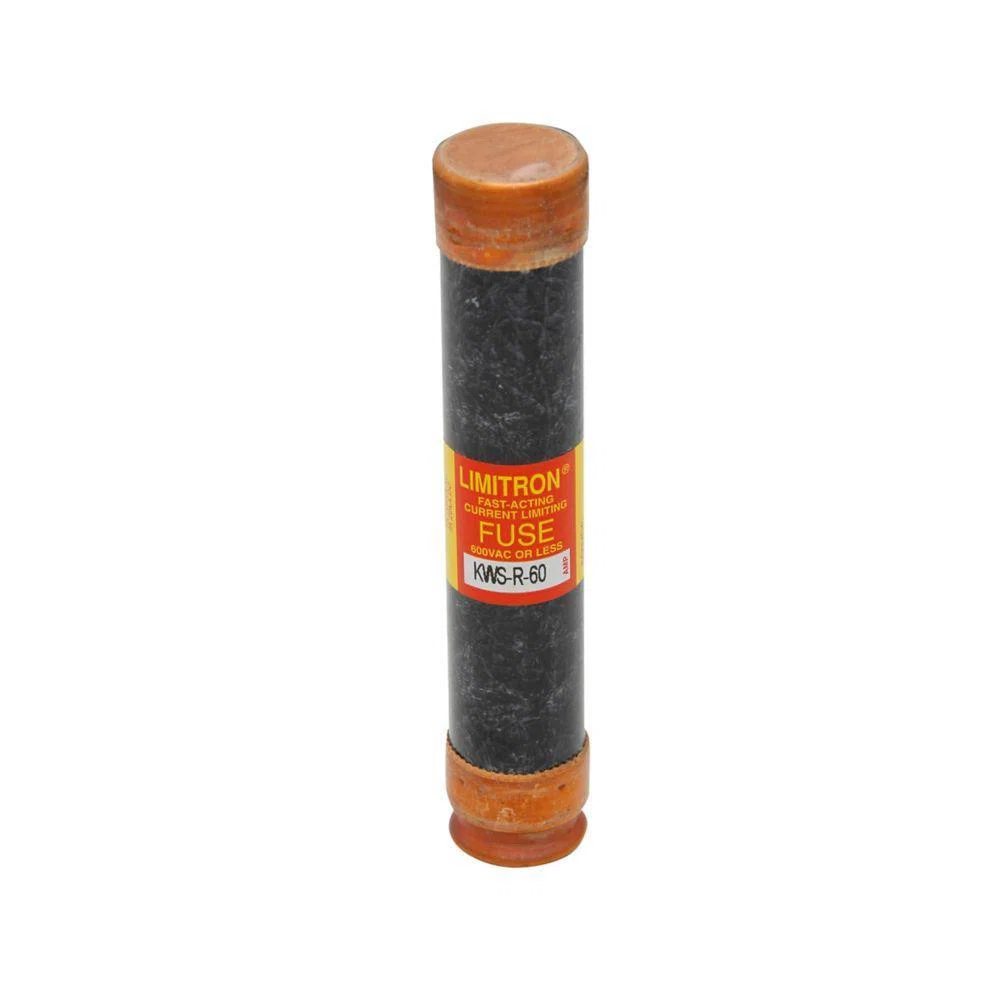

KWS-R-60 Limitron Fast Acting Current Limiting Fuse, 60 A, 600 V AC/DC, 100/200 kA Interrupt, RK1 Class, Cartridge Body
- MFR:
- Eaton
- MFR #:
- KWS-R-60
- UPC:
- 051712658843
- Item #:
- 462461
KWS-R-60 Limitron Fast Acting Current Limiting Fuse, 60 A, 600 V AC/DC, 100/200 kA Interrupt, RK1 Class, Cartridge Body
- MFR #:
- KWS-R-60
- UPC:
- 051712658843
- Item #:
- 462461
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$350.49
each
Bussmann's UL Class RK1 fuse offering includes the industry's most recognized Low-Peak dual-element, current-limiting, time-delay fuses (LPN-RK and LPS-RK) which are also available with optional indication on select ratings (see product data sheet). Complementing the Low-Peak product offering is Bussmann's Limitron family of fast-acting fuses (KTN-R, KTS-R, KWN-R and KWS-R) fuses.
Manuals and Documentation
Features
- High DC voltage ratings for critical industrial or commercial applications that have specific current limitation requirements
- 10X better current limitation than basic circuit breakers and non-current limiting fuses helps prevent damage caused by short circuit events
- 200 kA AC interrupt ratings comply with NEC 110.9 for today's large capacity systems
- 20 kA DC interrupt ratings help meet the needs of protecting higher ampacity DC circuits
- Incorporates class R rejection feature, can be inserted in non-rejection type fuse holders to physically and electrically replace fast acting class H, K1, K5, RK5 and other fast acting fuses
| Manufacturer Part Number | KWS-R-60 |
| Brand | Bussmann |
| Manufacturer | Eaton |
| UPC | 051712658843 |
| EAN | 5027590243636 |
| Country Of Origin | MX |
| Amperage Rating | 60 A |
| Mounting Type | Holder |
| Series | KWS-R |
| Type | Fast Acting Current Limiting |
| Voltage Rating | 600 V AC/DC |
| Alternative Part Number | 7632946 |
| Manufacturer Item Status | Active |
| Country | USA |
| Standards Approvals | CE Certified | CSA 1422-02 | CSA C22.2 No. 248.12 | CSA File No. 53787 | NEC Section 110.9 | UL 248-12 | UL File No. E4273 | UL Guide JDDZ |
| Application | Photovoltaic Systems, Inverters and Panelboards Applications, Safety and Security Systems |
| Body Size | 1.06 in Dia x 5.5 in L |
| Body Type | Cartridge |
| Class | RK1 |
| Indicating Non Indicating | Indicating |
| Interrupt Rating | 100/200 kA |
| Rejection Non Rejection | Rejection |
| Terminal Type | Blade |
