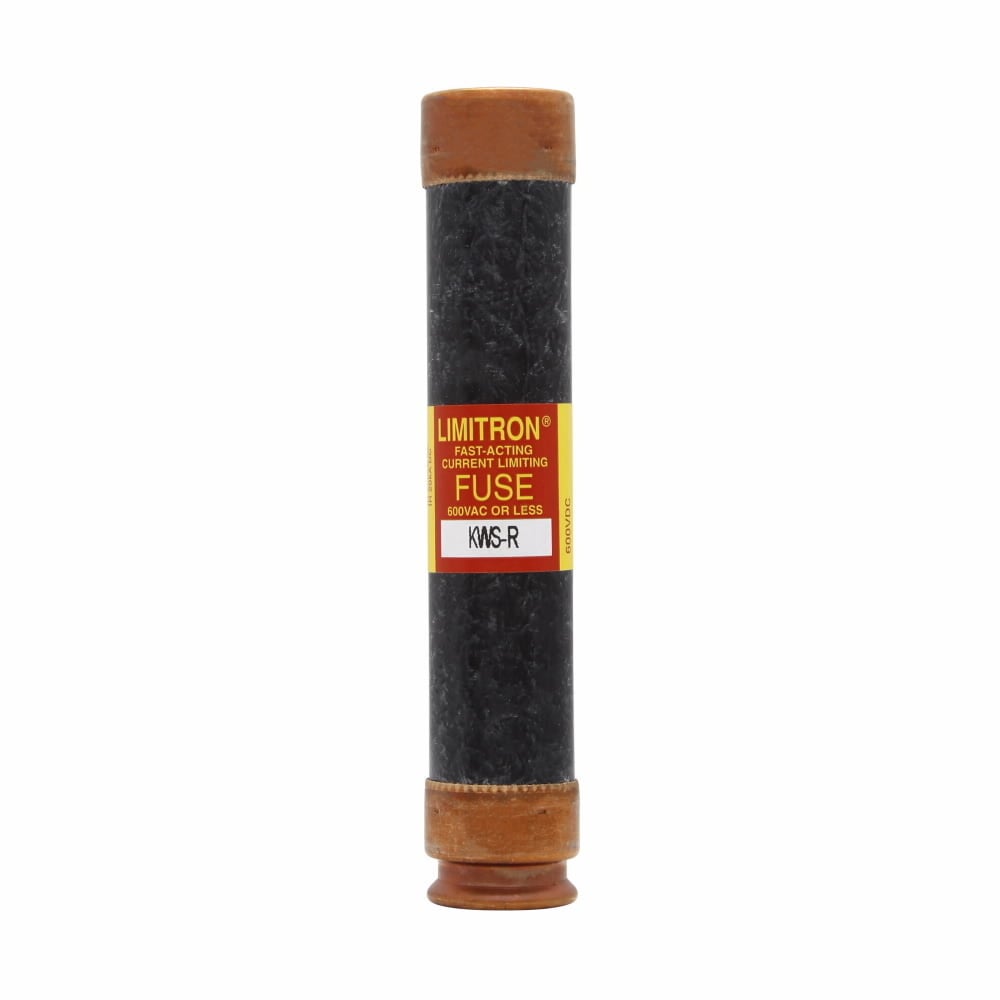

Eaton Bussmann series KWS-R fuse, LIMITRON Fast-acting fuse, Photovoltaic systems, inverters, panelboards, 60 A, Class RK1, Non-indicating, Blade end x blade end, 100 kAIC at 600 Vdc,200 kAIC at 600 Vac, Standard, 600 V, 600 Vdc
MFR: Eaton Bussmann
MFR #: KWS-R-60
UPC: 051712658843
Item #: 462461
Eaton Bussmann series KWS-R fuse, LIMITRON Fast-acting fuse, Photovoltaic systems, inverters, panelboards, 60 A, Class RK1, Non-indicating, Blade end x blade end, 100 kAIC at 600 Vdc,200 kAIC at 600 Vac, Standard, 600 V, 600 Vdc
MFR #: KWS-R-60
UPC: 051712658843
Item #: 462461
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$339.40
each
Bussmann's UL Class RK1 fuse offering includes the industry's most recognized Low-Peak dual-element, current-limiting, time-delay fuses (LPN-RK and LPS-RK) which are also available with optional indication on select ratings (see product data sheet). Complementing the Low-Peak product offering is Bussmann's Limitron family of fast-acting fuses (KTN-R, KTS-R, KWN-R and KWS-R) fuses.
- Catalog Number
- KWS-R-60
- Manufacturer
- Eaton Bussmann
- Brand
- Eaton Bussmann Series
- Country of Origin
- Mexico
- Made in USA
- No
- Amperage Rating
- 60
- Application
- Ind Facilities & Factories - Facility: Safety and Security Systems
- Connection
- Blade end x blade end
- Interrupt Rating
- 100 kAIC at 600 Vdc|200 kAIC at 600 Vac
- Standard
- CE Marked
- UPC
- 051712658843
- GTIN
- 00051712658843
- Item Type
- Fuse
- Weight UOM
- Pounds
- Size
- 1.06 In Diameter X 5.50 In Length
- Voltage Rating
- 600 Vac, 600 Vdc
