Discontinued

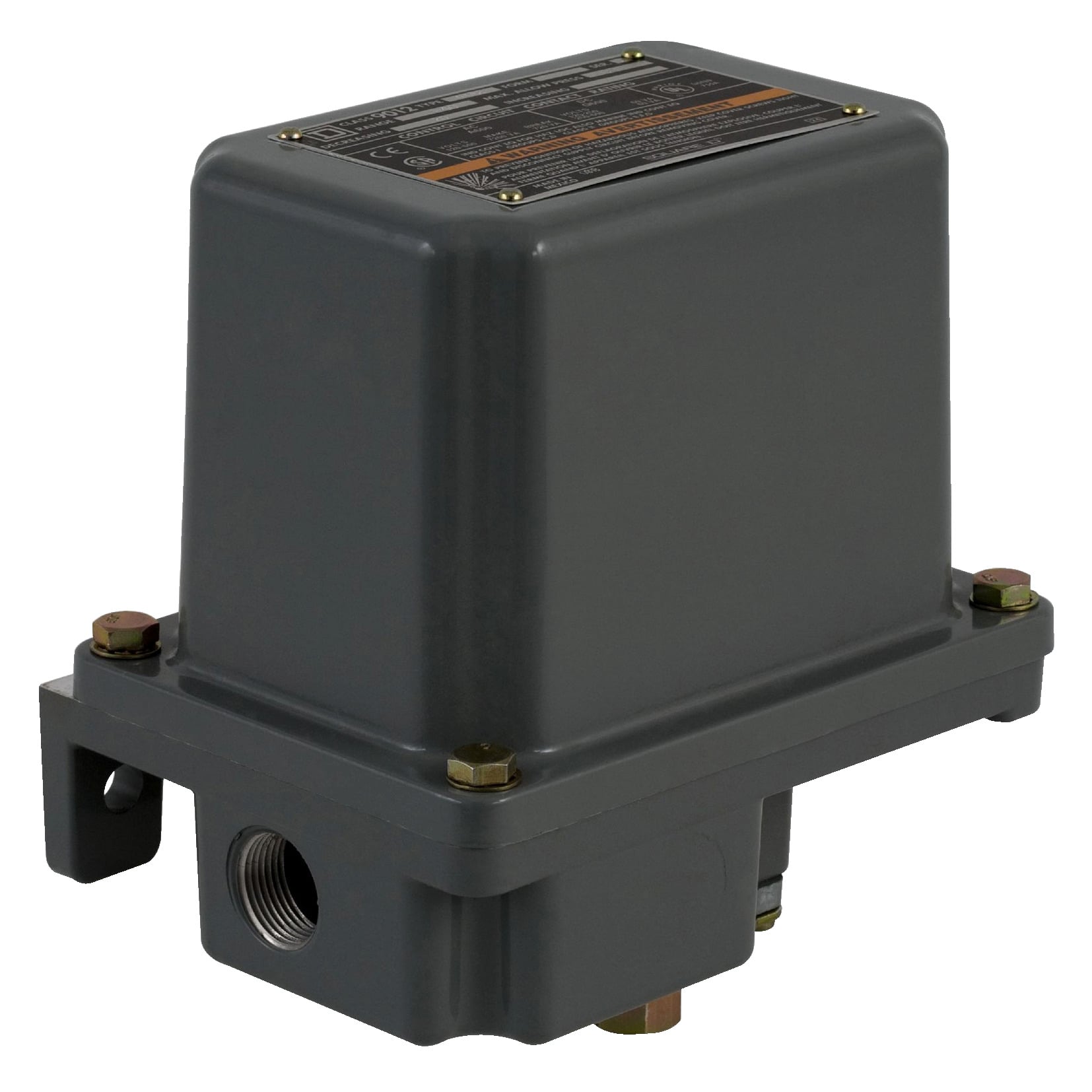

9012GDR22 Single Stage Low Pressure Electromechanical Pressure Switch, 1 to 40 psi Pressure, 2.4 psi Differential, 2NO-2NC DPDT-DB Contact, Screw Clamp Connection
- MFR:
- Schneider Electric
- MFR #:
- 9012GDR22
- UPC:
- 785901933700
- Item #:
- 458315
Discontinued
9012GDR22 Single Stage Low Pressure Electromechanical Pressure Switch, 1 to 40 psi Pressure, 2.4 psi Differential, 2NO-2NC DPDT-DB Contact, Screw Clamp Connection
- MFR #:
- 9012GDR22
- UPC:
- 785901933700
- Item #:
- 458315
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
pressure switch 9012G - fixed scale - 1 threshold - 1.0 to 40 psig
Manuals and Documentation
| Catalog Number | 9012GDR22 |
| Manufacturer | Schneider Electric |
| Brand | Square D |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | DETECTION OF 1 SINGLE THRESHOLD |
| Contact Configuration | 2(NC-NO), DPDT-DB, FORM ZZ, SNAP ACTION, SILVER NICKEL CONTACTS |
| Enclosure | NEMA 7/9 UL 698,CAST ALUMINIUM |
| Operating Cycles | 120 CYC/MN |
| Process Connection | 0.25 INCH 18 NPTF UL 508 |
| Special Features | SCREW-CLAMP TERMINALS, AWG 22...AWG 12 |
| Standard | CE-CSA C22.2 NO 14-UL 508,CE-CSA LR26817 CLASS 3218 02-UL LISTED FILE E12443 CCN NOWT |
| UPC | 785901933700 |
| GTIN | 00785901933700 |
| Item Type | 3 A 240 V AC A600 NEMA RATING DESIGNATION-6 A 120 V AC A600 NEMA RATING DESIGNATION-0.22 A 125 V DC R300 NEMA RATING DESIGNATION-0.11 A 250 V DC R300 NEMA RATING DESIGNATION,ELECTROMECHANICAL PRESSURE SWITCH,FIXED |
| Environmental Conditions | FOR HAZARDOUS LOCATION USAGE - EXPLOSION PROOF (INDOOR) |
| Operating Temperature | -10-185 A Degrees F |
| System Pressure | 100 PSI,40 PSI |
