Photoelectric sensors XU, XUV, fork, 80X60mm, 12...24 VDC, M8
- MFR:
- Telemecanique Sensors
- MFR #:
- XUVR0608PBNM8
- Item #:
- 457785
Photoelectric sensors XU, XUV, fork, 80X60mm, 12...24 VDC, M8
- MFR #:
- XUVR0608PBNM8
- Item #:
- 457785
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |

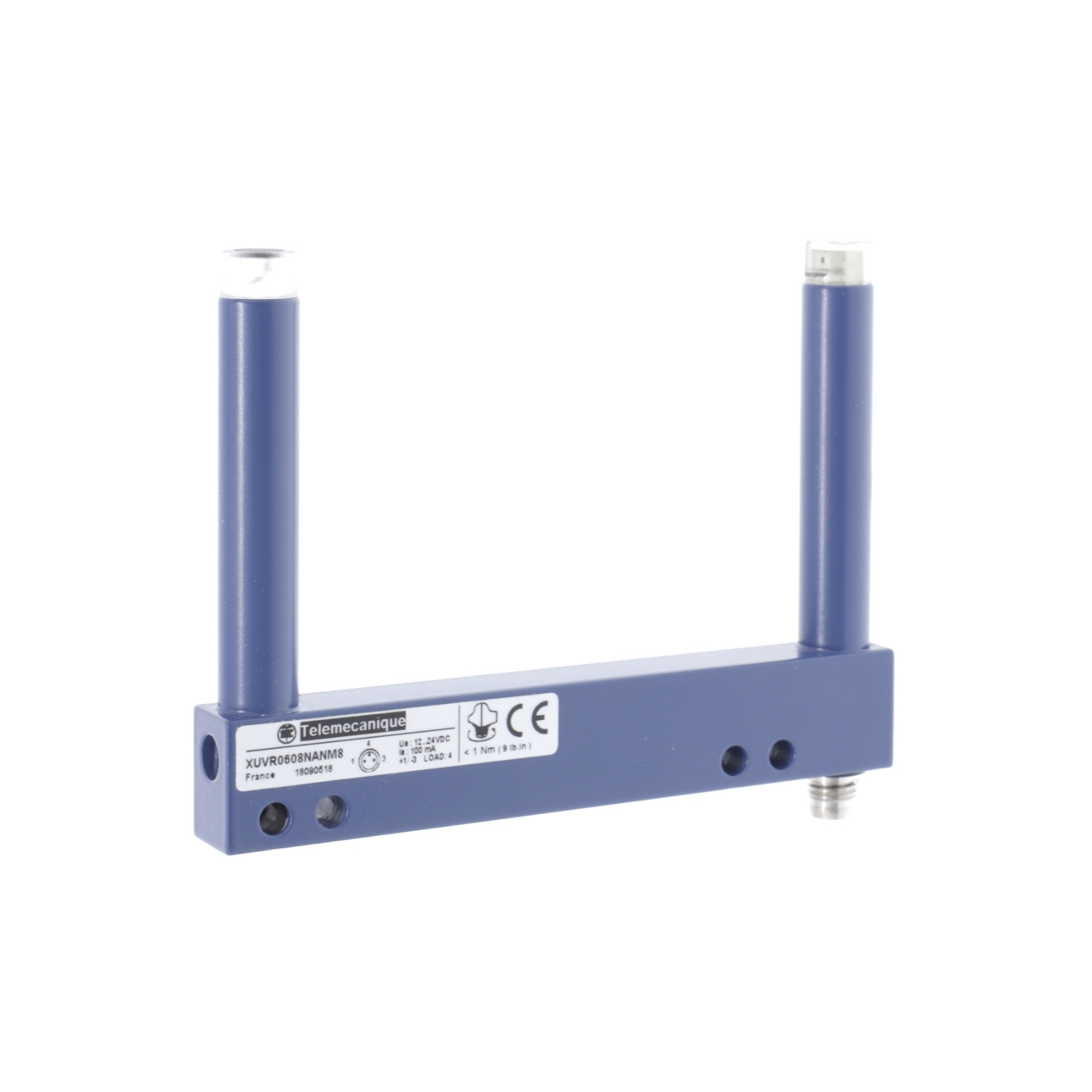

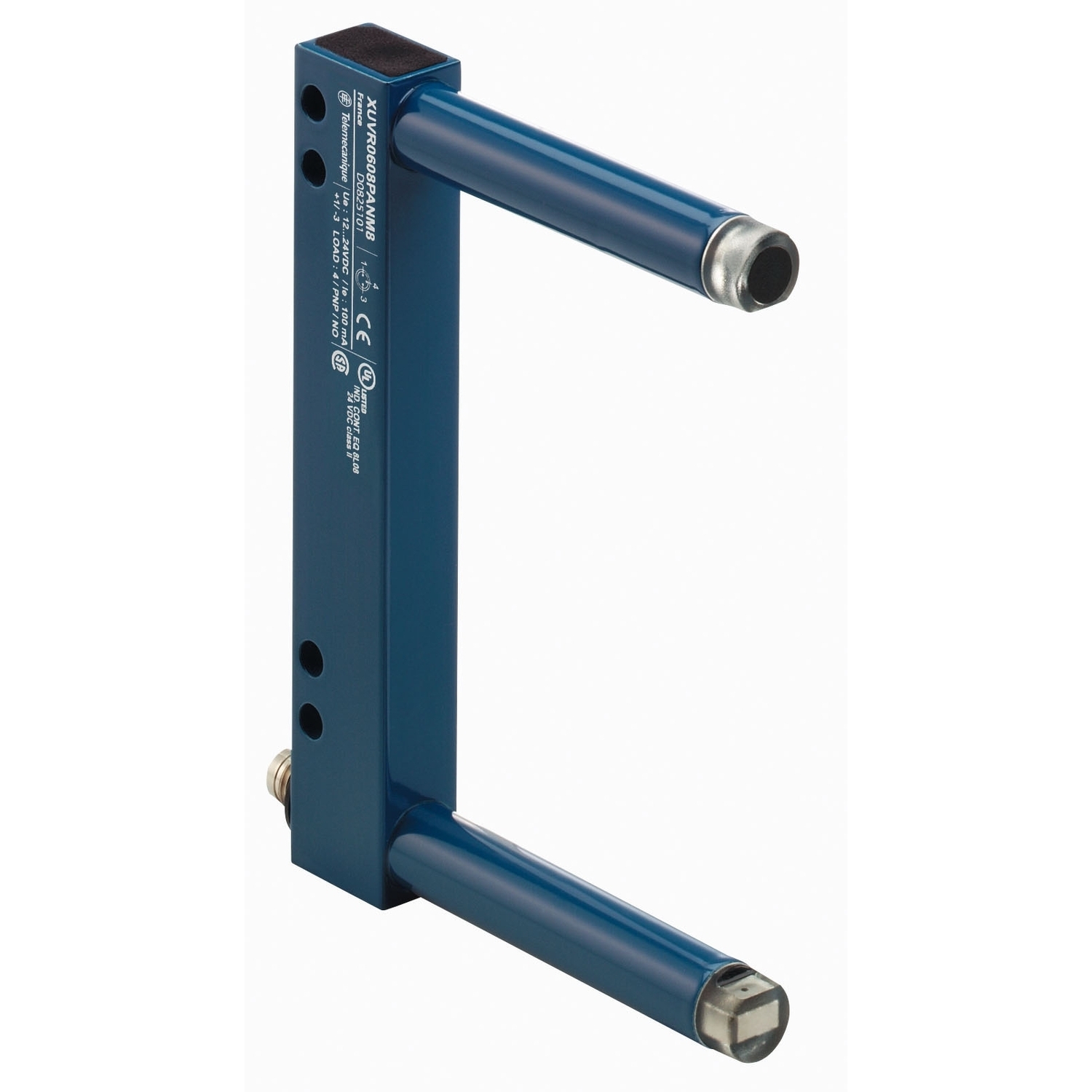

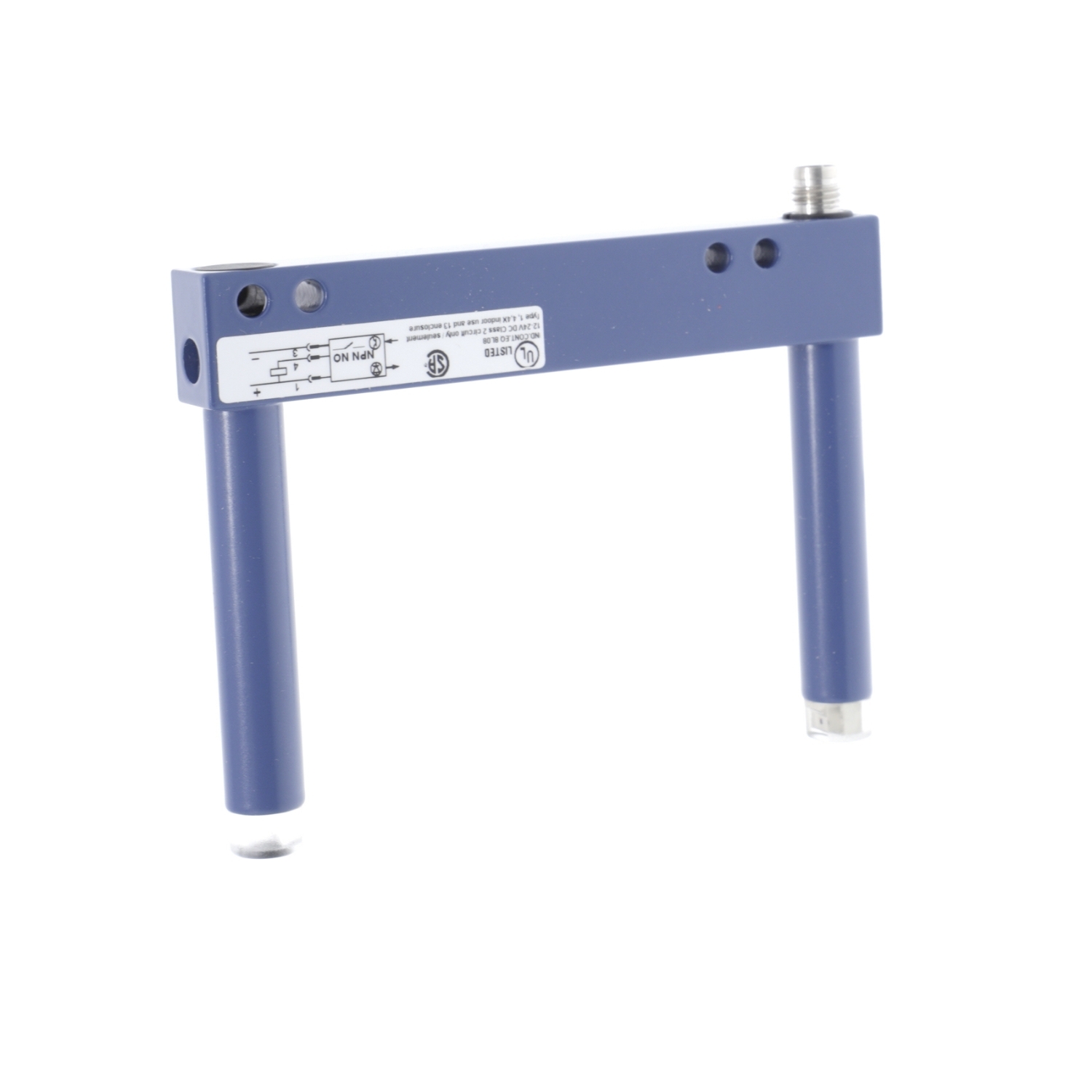

This single mode (thru-beam system) optical fork has a painted aluminium and polyamide (case). It has a supply voltage of 12V to 24V DC. This optical thru-beam non-adjustable fork has a painted aluminium and polyamide construction, is mountable directly on a surface or bracket, thanks to its 4 fixing points. It has a corrosion resistant and non magnetic painted aluminium casing. 1 LED display allows to identify status of the sensor. IP65 and IP67 protection makes this product ready for the harshest environments. It can operate in very cold (-25C) and hot environments (+55C). It has a standard M8 connector, compatible with all existing market sensor cabling. It provides high immunity to ambient light up to 10,000 lux. It is CSA and UL certified.
Manuals and Documentation
| Catalog Number | XUVR0608PBNM8 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| Application | Detection on small conveyor |
| Connection | 1 male connector M8, 3 pins |
| Enclosure | IP65-IP67,PAINTED ALUMINIUM AND POLYAMIDE/GLASS |
| Output | PNP;1 NC;Discrete;Solid state |
| Sensing Range | 80-80 MM |
| Special Features | Output state 1 LED yellow) |
| Standard | IP65-IP67,UL-CSA-CE |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=876098&lang=en-us |
| GTIN | 03389119040693 |
| Item Type | General purpose;Thru beam;Fork;Photo-electric sensor |
| Size | FORK |
| Operating Temperature | -10-60 A�C |
| Voltage Rating | 12...24 V DC reverse polarity protection |
