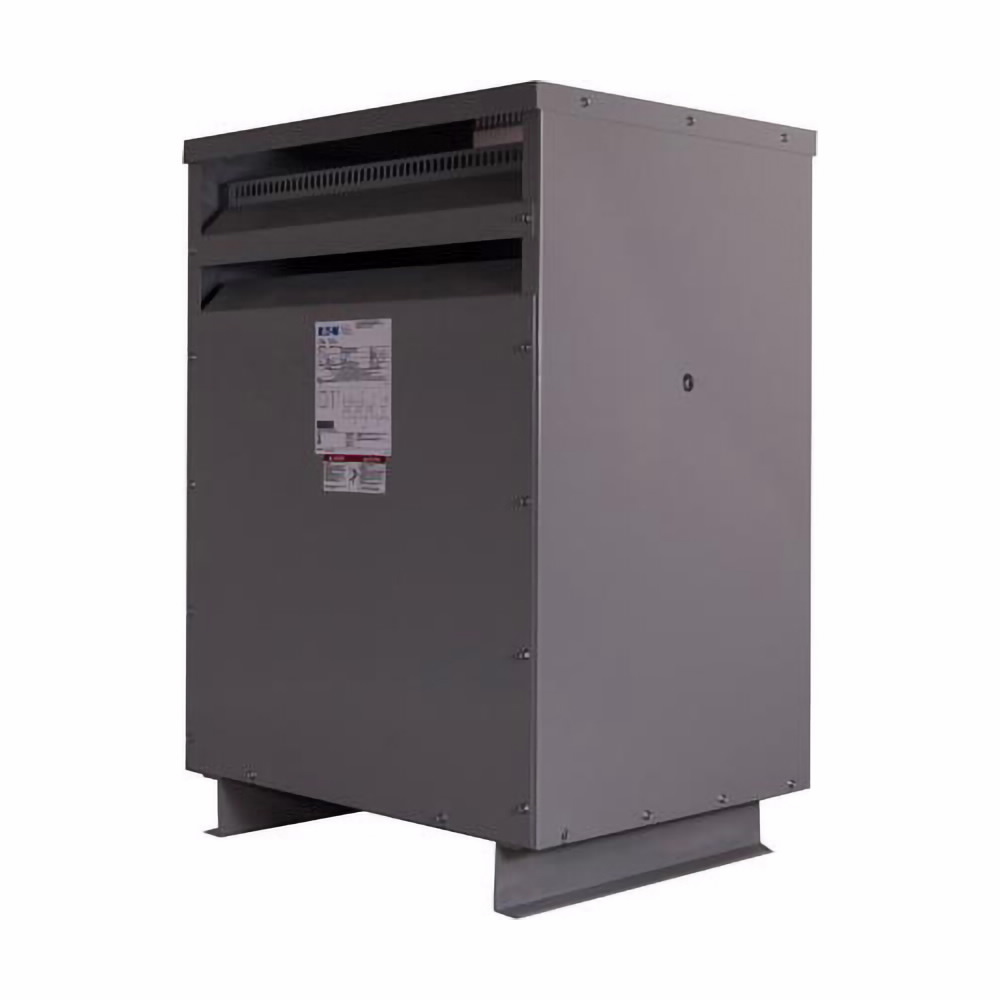

V48M28T4516CU Type DT-3 Dry Energy Efficient Ventilated General Purpose Transformer, 480 VAC Primary, 208Y/120 V AC Secondary, 45 kVA Power Rating, 60 Hz, 3 Phase
- MFR:
- Eaton
- MFR #:
- V48M28T4516CU
- UPC:
- 786680192005
- Item #:
- 457464
V48M28T4516CU Type DT-3 Dry Energy Efficient Ventilated General Purpose Transformer, 480 VAC Primary, 208Y/120 V AC Secondary, 45 kVA Power Rating, 60 Hz, 3 Phase
- MFR #:
- V48M28T4516CU
- UPC:
- 786680192005
- Item #:
- 457464
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$23,126.79
each
Eaton types DS-3 (single-phase) and DT-3 (three-phase) general purpose ventilated dry-type transformers are two-winding, self-cooled, and available in a wide variety of primary and secondary voltage combinations. General purpose transformers are designed for continuous operation at rated kVA. They are designed, manufactured and tested in accordance with all of the latest applicable ANSI, NEMA and IEEE standards.
Manuals and Documentation
| Catalog Number | V48M28T4516CU |
| Manufacturer | Eaton |
| Brand | Eaton |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | Generation - Conventional Energy - Conventional Energy |
| Frequency Rating | 60 Hz |
| Insulation Class | 220 Degrees C |
| Mounting | Wall |
| Phase | 3 |
| Primary Voltage | 480 V |
| Secondary Voltage | 208Y/120 V |
| Special Features | Fungus-resistent varnished core and coil |
| Standard | UL Listed |
| UPC | 786680192005 |
| GTIN | 00786680192005 |
| Item Type | Ventilated transformer |
| Temperature Rating | 150 Degrees C rise |
