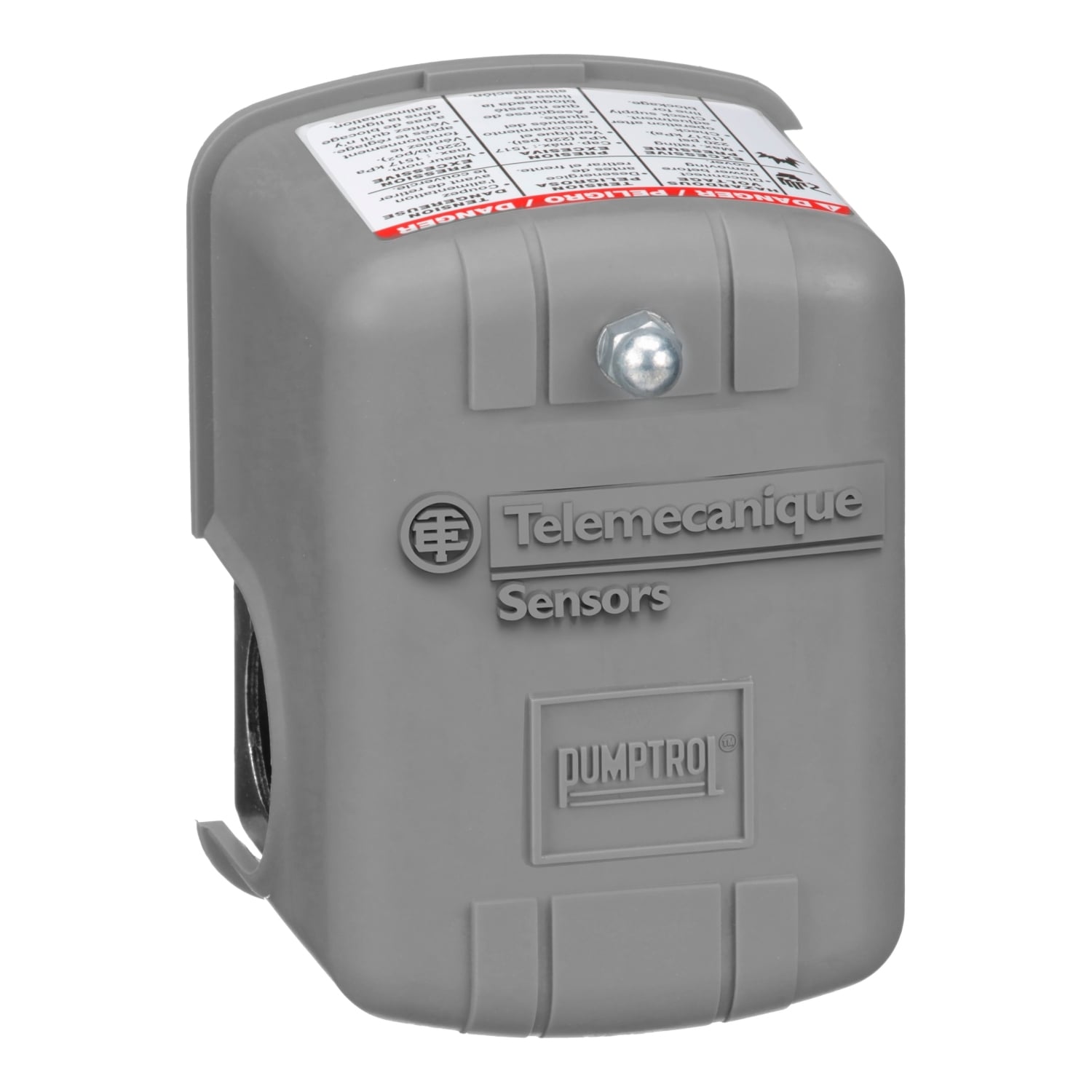

9013FSW49J15 Type F Adjustable Electro-Mechanical Pressure Switch, 3 to 10 psig Pressure, 2NC DPST-DB Contact, 1/2 in NPT/Screw Clamp Connection
- MFR:
- Telemecanique Sensors
- MFR #:
- 9013FSW49J15
- UPC:
- 785901695455
- Item #:
- 456695
9013FSW49J15 Type F Adjustable Electro-Mechanical Pressure Switch, 3 to 10 psig Pressure, 2NC DPST-DB Contact, 1/2 in NPT/Screw Clamp Connection
- MFR #:
- 9013FSW49J15
- UPC:
- 785901695455
- Item #:
- 456695
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$65.34
each
water pump switch 9013FS - adjustable diff. - 5-21 psi
Manuals and Documentation
| Catalog Number | 9013FSW49J15 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | Control electrically driven water pumps;Power circuit;Regulation between 2 thresholds |
| Contact Configuration | 2 NC, snap action, DPST-DB, Form YY |
| Enclosure | NEMA 3R UL 50 |
| Operating Cycles | 10 CYC/MN |
| Process Connection | 0.25 INCH NPT EXTERNAL UL 508 |
| Special Features | - |
| Standard | CE-NSF ANSI 61 ANNEX G-UL 508,IP20 IEC 60529,UL LISTED FILE E12158-CSA FILE LR25490 |
| UPC | 785901695455 |
| GTIN | 00785901695455 |
| Item Type | Electromechanical pressure switch;Adjustable differential |
| Environmental Conditions | RAINPROOF AND ICE PROOF (INDOOR/OUTDOOR) |
| Operating Temperature | -33-257 A Degrees F |
| System Pressure | 30 PSI 3-10 PSI) |
