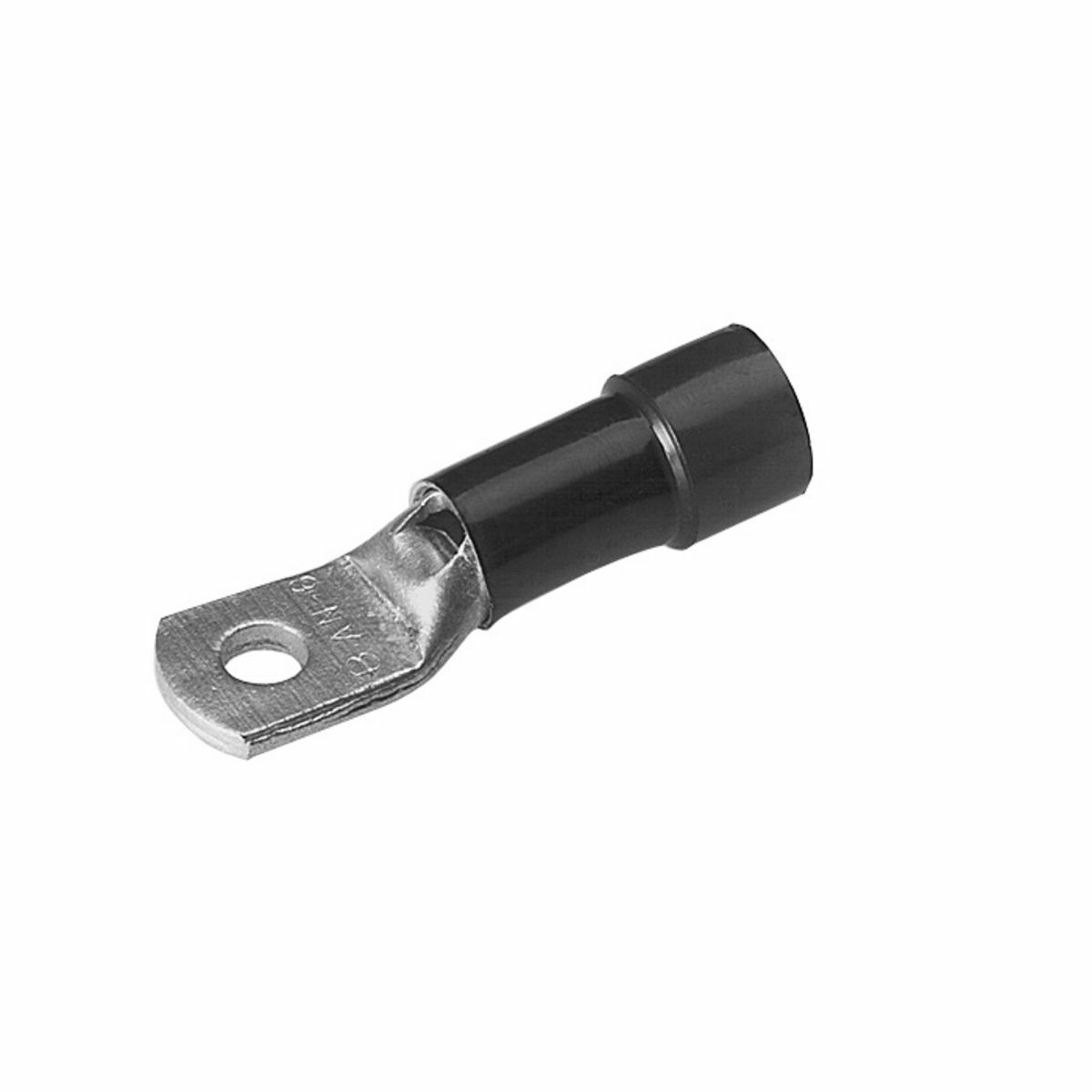

YAEV6CH1 YAEV-H 1-Hole Heavy Duty Compression Lug, 6 AWG Stranded Copper Conductor, #8 to #10 Stud, Copper
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- YAEV6CH1
- UPC:
- 781810038093
- Item #:
- 455819
YAEV6CH1 YAEV-H 1-Hole Heavy Duty Compression Lug, 6 AWG Stranded Copper Conductor, #8 to #10 Stud, Copper
- MFR #:
- YAEV6CH1
- UPC:
- 781810038093
- Item #:
- 455819
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$8.50
each
Manuals and Documentation
| Catalog Number | YAEV6CH1 |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | For Larger Conductor Insulation Diameters |
| Insulation | Y |
| Material | Copper |
| Special Features | Features: Designed To Accommodate Larger Conductor Insulation Diameters, Made Of One Piece Tin Plated Pure Electrolytic Seamless Copper Tubing For Maximum Conductivity And Ductility, Color-Coded Insulating Sleeves Are Locked Into Position, Inspection Hole Permits Visual Check Of Wire Insertion, Meets Requirements Of SAE-AS7928, BMY BNCH-MT Bench Mount Adapter Available, Insulation Diameter (maximum): 0.38 IN, Tools, Die Nest Catalog Number, Die Indentor Catalog Number: Y29NC, Y29BH Tool, DEV6L Die Nest, Y29PLE-1 Die Indentor, Wire Strip Length: 1/2 IN, Color Code: Blue, Finish: Tin Plated, Installation Tool: HYTOOL, HYPRESS: MY28-6, Y35, Y39 Tool With U6CET Die Set |
| Standard | UL486;Military Specified (Mil-Spec) |
| UPC | 781810038093 |
| GTIN | 00781810038093 |
| Item Type | YAEV-H, Heavy Duty |
