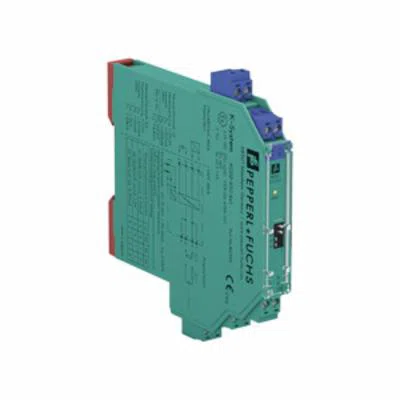

KCD2-STC-EX1 Isolated Switch Amplifier, 22 V AC Input, 15.5 to 26 VAC Output, 1.1 W Power Rating, 1 Channel
- MFR:
- Pepperl+Fuchs
- MFR #:
- KCD2-STC-EX1
- Item #:
- 4550
KCD2-STC-EX1 Isolated Switch Amplifier, 22 V AC Input, 15.5 to 26 VAC Output, 1.1 W Power Rating, 1 Channel
- MFR #:
- KCD2-STC-EX1
- Item #:
- 4550
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$982.95
each
Pepperl+Fuchs® Switch Amplifier, Isolated, 1 Channels, 22 V AC Input, 15.5 to 26 VAC Output, 30 mA Input Current, 20 mA Output Current, 1.1 W Power, Thread Connection, DIN Rail Mounting, -4 to 140 deg F, Specifications: 19 to 30 VDC, 45 mA Rated Current, 800 mW Power Dissipation, 4.9 in H x 4.5 in W x 0.5 in D Dimensions
Manuals and Documentation
Features
- Input 2-wire and 3-wire smart transmitters and 2-wire smart current sources
- Sink or source mode
- 12.5 mm width housing
- IP20 degree of protection
| Manufacturer Part Number | KCD2-STC-EX1 |
| Brand | Pepperl+Fuchs® |
| Manufacturer | Pepperl+Fuchs |
| Dimensions | 4.9 in H x 4.5 in W x 0.5 in D |
| Mounting Type | DIN Rail |
| Specifications | 19 to 30 V DC, 45 mA Rated Current, 800 mW Power Dissipation |
| Temperature Rating | -4 to 140 deg F |
| Type | Isolated |
| Number Of Channels | 1 |
| Manufacturer Item Status | Active |
| Country | USA |
| Standards Approvals | FM Approved | IECEx Certified | UL Listed |
| Connection Type | Thread |
| Input Current | 30 mA |
| Input Voltage | 22 V AC |
| Output Current | 20 mA |
| Output Voltage | 15.5 to 26 V AC |
| Power Rating | 1.1 |
