Discontinued

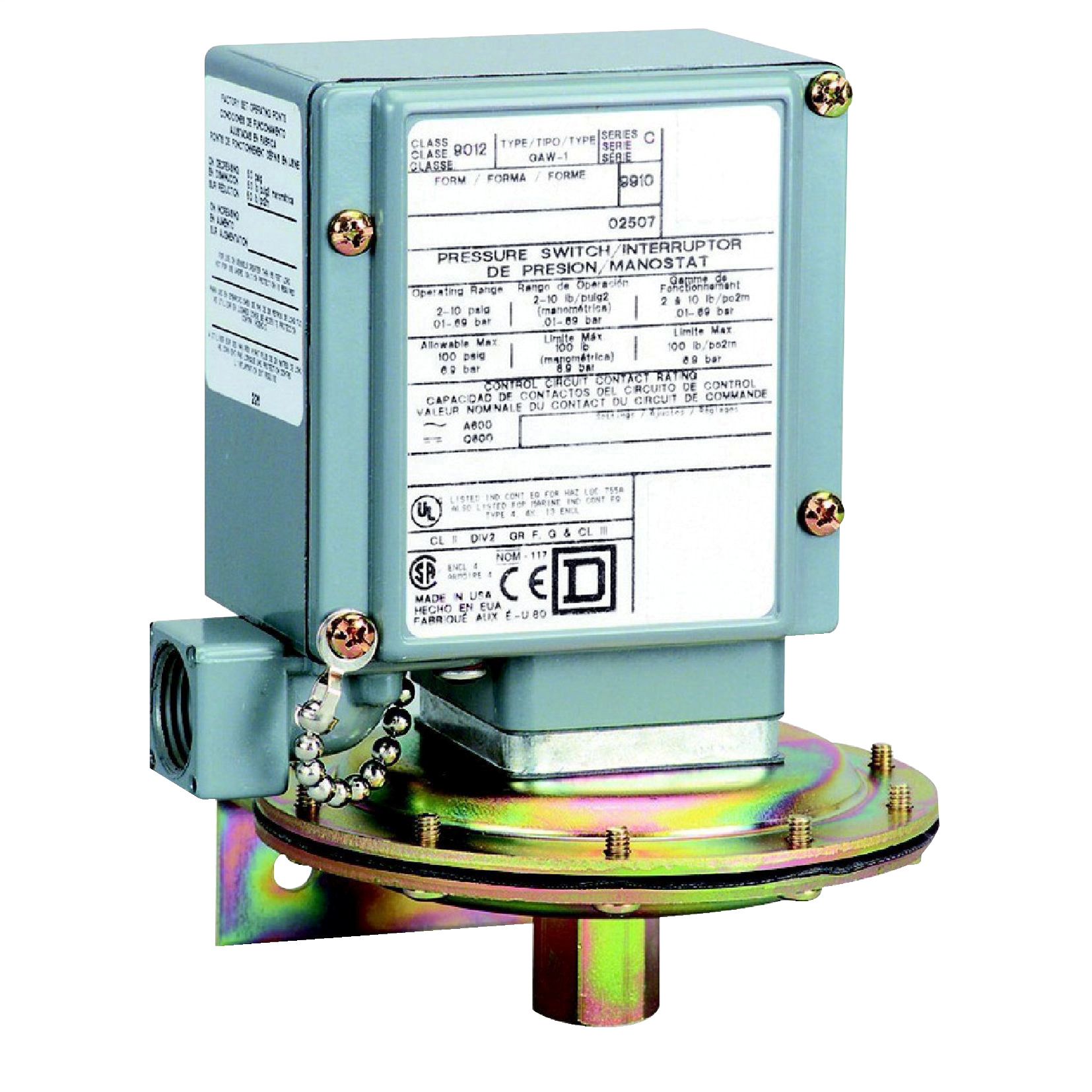

9012GDW21 1-Stage Low Pressure Electromechanical Pressure Switch, 0.2 to 10 psi Pressure, 0.6 psi Differential, DPDT (Isolated) Contact, Screw Clamp Connection
- MFR:
- Schneider Electric
- MFR #:
- 9012GDW21
- UPC:
- 785901048022
- Item #:
- 454198
Discontinued
9012GDW21 1-Stage Low Pressure Electromechanical Pressure Switch, 0.2 to 10 psi Pressure, 0.6 psi Differential, DPDT (Isolated) Contact, Screw Clamp Connection
- MFR #:
- 9012GDW21
- UPC:
- 785901048022
- Item #:
- 454198
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
pressure switch 9012G - fixed scale - 1 threshold - 0.2 to 10 psig
Manuals and Documentation
| Catalog Number | 9012GDW21 |
| Manufacturer | Schneider Electric |
| Brand | Square D |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | DETECTION OF 1 SINGLE THRESHOLD |
| Contact Configuration | 2(NC-NO), DPDT-DB, FORM ZZ, SNAP ACTION, SILVER NICKEL CONTACTS |
| Enclosure | NEMA 4/4X/13 UL 50,DIE CAST ALUMINIUM ALLOY 380 |
| Operating Cycles | 120 CYC/MN |
| Process Connection | 0.25 INCH 18 NPTF UL 508 |
| Special Features | SCREW-CLAMP TERMINALS, AWG 22...AWG 12 |
| Standard | UL 508-CE-CSA C22.2 NO 14,UL LISTED FILE E12158 CCN NKPZ AND CCN NTHT-CSA LR25490 CLASS 3211 03-CE |
| UPC | 785901048022 |
| GTIN | 00785901048022 |
| Item Type | 3 A 240 V AC A600 NEMA RATING DESIGNATION-6 A 120 V AC A600 NEMA RATING DESIGNATION-0.22 A 125 V DC R300 NEMA RATING DESIGNATION-0.11 A 250 V DC R300 NEMA RATING DESIGNATION,ELECTROMECHANICAL PRESSURE SWITCH,FIXED |
| Environmental Conditions | WATER TIGHT, DUST TIGHT, OIL TIGHT AND CORROSION RESISTANT (INDOOR/OUTDOOR) |
| Operating Temperature | -10-185 A Degrees F |
| System Pressure | 10 PSI,100 PSI |
