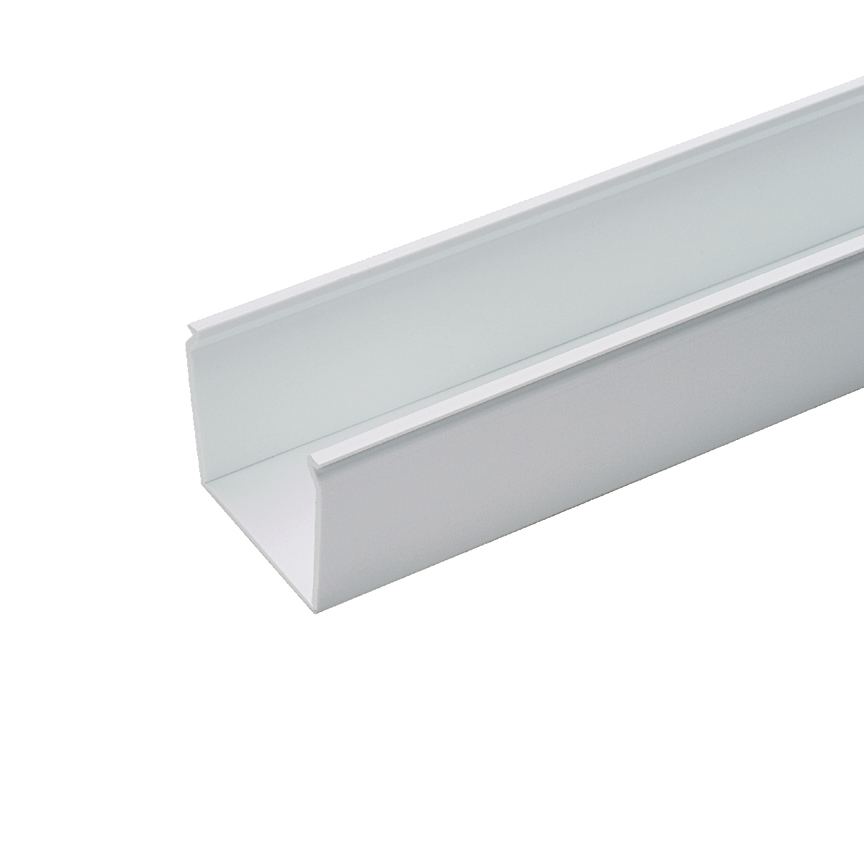

The FS.5X.5WH6NM Panduct Lead-Free PVC Solid Wall Wiring Duct design fully encloses cables providing maximum protection and aesthetics. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122F (50C). No mounting holes provided. Lead-free PVC. 0.5 x 0.5 (12.7 mm x 12.7 mm) and 6' (1.83 m) long. Cover sold separately. Color White.
Manuals and Documentation
| Catalog Number | FS.5X.5WH6NM |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Solid Wall Wiring Duct for Control Panel and Machine Builder Applications |
| Color | White |
| Connection | No Mounting Holes |
| Material | PVC |
| Special Features | Solid Wall |
| Standard | RoHS Compliant, UL Recognized, CE Compliant |
| UPC | 074983339570 |
| GTIN | 00074983339570 |
| Item Type | Base Wiring Duct |
| Width | 0.69 |
| Width UOM | Inch |
| Size | 0.50 x 0.50 |
| Thickness | 0.05 IN |
