Schneider Electric

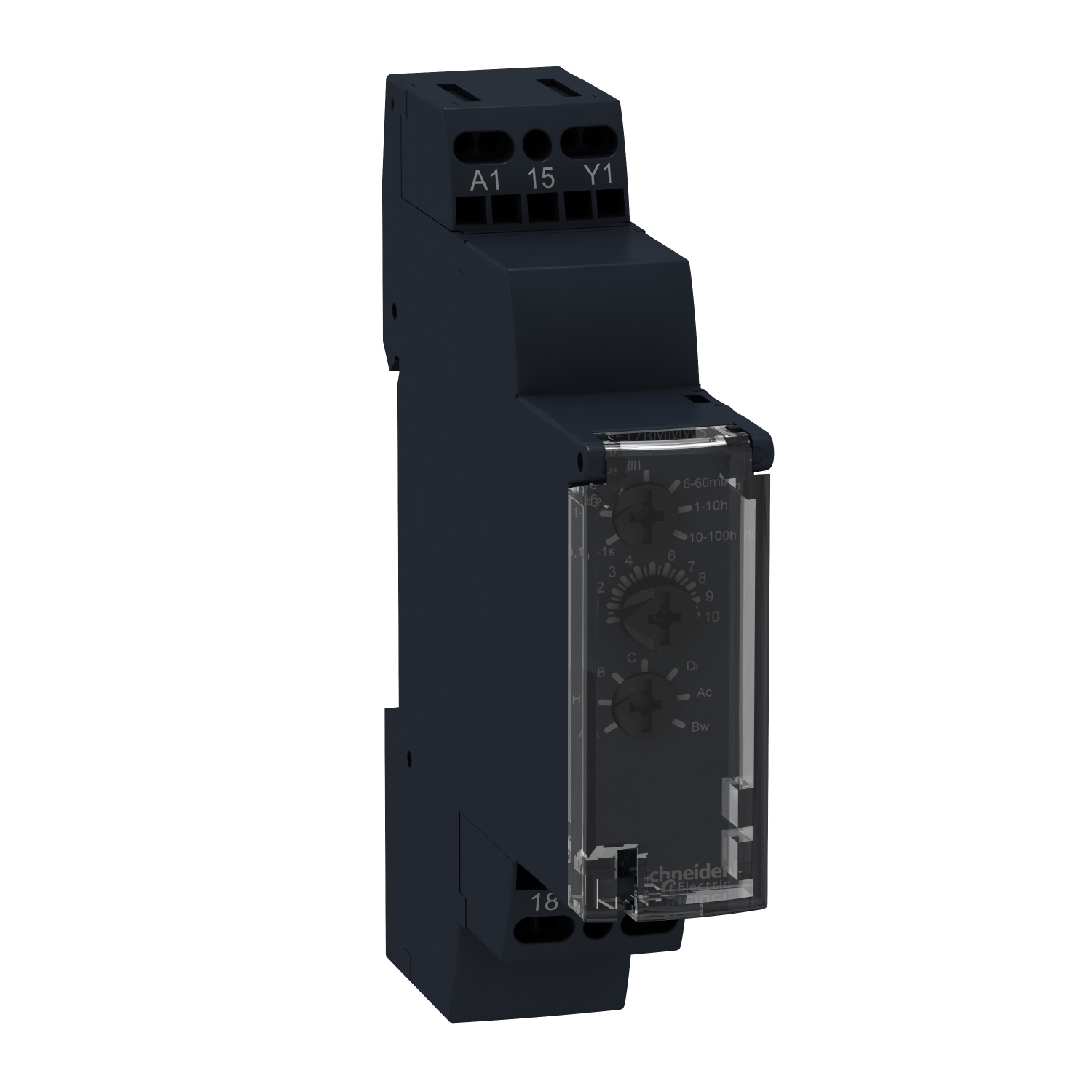

RE17RMJU Zelio Modular Timing Relay, 1 s to 100 hr Setting, 12 V AC/DC, 1CO 1 Form C SPDT Contact

MFR:
Schneider Electric
MFR #:
RE17RMJU
Item #:
452423

Availability

Location Available Qty
Available Available to Order
$104.01 each

This Harmony RE17R timing relay can be set between 0.1 seconds and 100 hours, has an output rating of 8A, is 17.5mm wide and can be supplied with 12V AC/DC. It also has 1 changeover contact SPDT (single pole double throw). It has one of market slimmest form-factors, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers. Multi function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Manuals and Documentation
Catalog Number RE17RMJU
Manufacturer Schneider Electric
Brand Schneider Electric
Country of Origin Indonesia
Made in USA No
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=180422187&lang=en-us
GTIN 03606480552748
Item Type Relay;Modular timing relay
Timing Range 1...10 s;6...60 s;10...100 h;1...10 min;1...10 h;0.1...1 s;6...60 min;Power on-delay - A- Power on-delay relay;on-delay and off-delay - Ac- On-delay and off-delay relay w/ control signal;power on-delay - At- Power on-delay relay w/ pause/summation (Y1);interval - B- Single interval relay w/ control signal;interval - Bw- Double interval relay w/ control signal;off-delay - C- Off-delay relay w/ control signal;symmetrical flashing - D- Symmetrical flashing relay (starting pulse-off);symmetrical flashing - Di- Symmetrical flashing relay (starting pulse-on);interval - H- Interval relay;interval - Ht- Interval relay w/ pause/summation (Y1)
