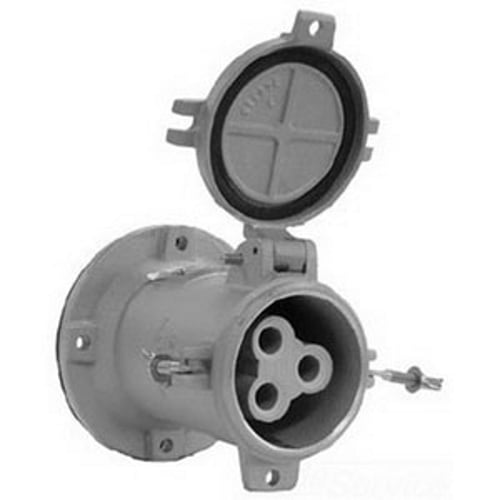

ADR20023 Powertite ADR 1-Phase Grounding Style 2 Pin and Sleeve Receptacle, 600 V AC/250 V DC, 200 A, 3 Poles, 2 Wires
- MFR:
- Appleton Electric
- MFR #:
- ADR20023
- UPC:
- 781381612630
- Item #:
- 451796
ADR20023 Powertite ADR 1-Phase Grounding Style 2 Pin and Sleeve Receptacle, 600 V AC/250 V DC, 200 A, 3 Poles, 2 Wires
- MFR #:
- ADR20023
- UPC:
- 781381612630
- Item #:
- 451796
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$2,041.92
each
Powertite Grounding Style 2 Receptacle, Number Of Poles: 3, Number Of Wires: 2, Wire Size: 2/0 AWG - 250 MCM, Amperage Rating: 200 AMP, Voltage Rating: 600 VAC At 50 - 400 HZ, 250 VDC, Phase: 1 PH, Material: Copperfree (4/10 Of 1 PCT Max
Manuals and Documentation
| Catalog Number | ADR20023 |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 200 |
| Application | For AP20023CD Plug |
| Connection | Pressure Wire Terminal |
| Material | Copperfree (4/10 Of 1 PCT Maximum) Aluminum |
| Mounting | Box |
| NEMA Rating | 3, 3R, 4, 4X |
| Number of Poles | 3 |
| Number of Wires | 2 |
| Phase | 1 |
| Special Features | Grounding style: Shell and extra pole; Designed to supply power to portable or fixed electrical equipment such as motor generator units, welders, pumps, compressors, cellular relay stations and similar apparatus; Ideal for use on shipping docks, ports and other ship to shore applications; Suitable for use in locations where a weatherproof enclosure is required; Rough usage construction; Natural finish glass filled polyester insulating blocks; Wire recess diameter: 11/16 IN; Receptacle meets NEMA 3R with spring door closed and NEMA 3, 3R, 4, 4X with plug fully inserted and wing nuts fully tightened or cover closed with wing nuts fully tightened; Receptacle meets NEMA 3R with spring door closed and NEMA 3, 3R, 4, 4X with plug fully inserted and wing nuts fully tightened or cover closed with wing nuts fully tightened; Weatherproof spring door, raintight clamp cover |
| Standard | UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11 |
| UPC | 781381612630 |
| GTIN | 00781381612630 |
| Item Type | Grounding Style 2 Receptacle |
| Temperature Rating | -40 To 107 DEG C |
| Voltage Rating | 600 VAC At 50 - 400 HZ, 250 VDC |
| Wire Size | 2/0 AWG - 250 MCM |
