Availability
| Location | Available Qty |
|---|---|
| Available | 4 ea |
$896.80
each

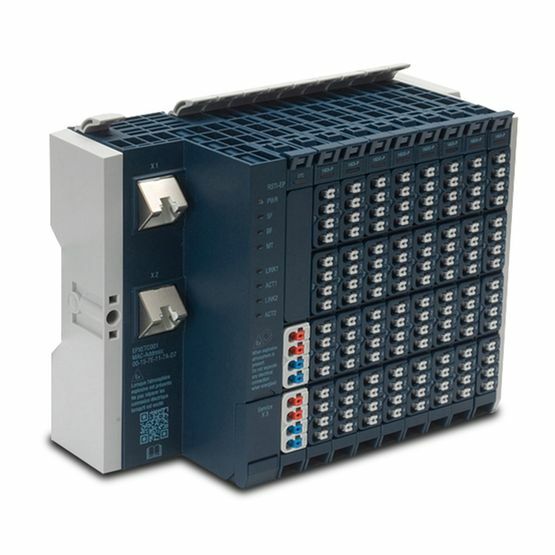

a PROFINET network adapter and the head module for the RSTi-EP communication bus. Facilitates up to 64 active RSTi-EP modules with two Ethernet ports and an integrated switch.
Manuals and Documentation
Features
- Extended operating temperature range, enhanced diagnostics
- High-speed system bus reads up to 256 DI/DOs in 20 mS
- DIN rail mounted
- Built-in Web Server for diagnostic information and firmware update through Ethernet and micro USB port
- Supports Media Redundancy Protocol (MRP) Client mode operation
- Supports Media Redundancy Protocol (MRP) Client mode operation
- Support for daisy-chain/line, star, or ring (MRP) technologies
- Two switched Ethernet ports; 8-conductor RJ-45 shielded twisted pair 10/100 Mbps copper interfaces
| Catalog Number | EPXPNS001 |
| Manufacturer | Emerson Automation |
| Brand | Emerson |
| Mounting | Din Rail |
| Item Type | PACSystems RSTi |
