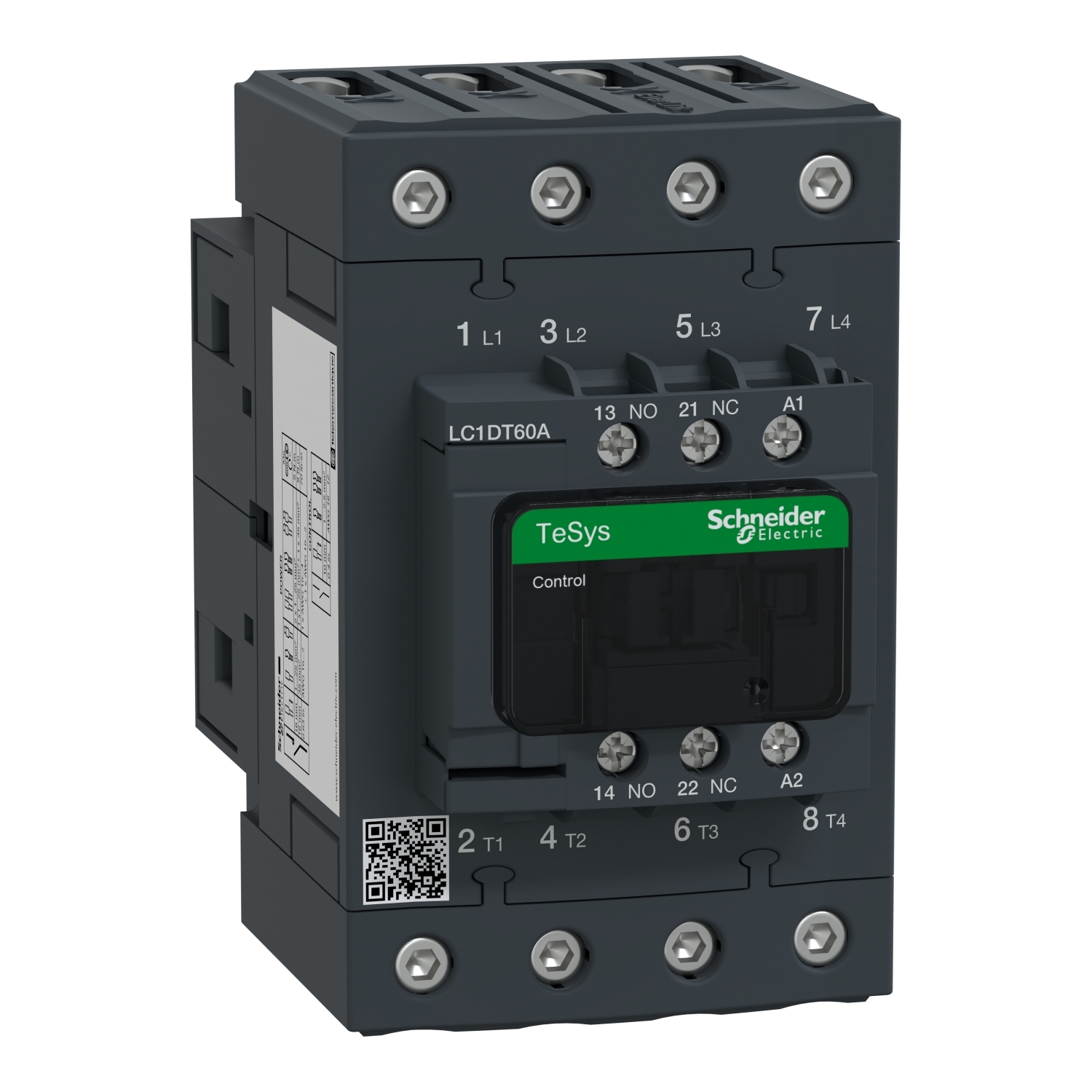

LC1DT60AB7 TeSys D LC1D Non-Reversing IEC Contactor With Safety Cover, 24 V AC V Coil, 60 A, 4NO Contact, 4 Poles
- MFR:
- Schneider Electric
- MFR #:
- LC1DT60AB7
- Item #:
- 450046
LC1DT60AB7 TeSys D LC1D Non-Reversing IEC Contactor With Safety Cover, 24 V AC V Coil, 60 A, 4NO Contact, 4 Poles
- MFR #:
- LC1DT60AB7
- Item #:
- 450046
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
TeSys Deca contactor, 4 poles (4NO), for non-inductive load applications up to 60A/440V AC-1. They can be used to create motor starters for almost any type of application. It provides a 24V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror contact), power connection by EverLink BTR screw connectors and control by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60C, it procures high reliability and durability. Compact (70mm width), DIN-rail mounting or screw fixing. Power contacts have a 60A resistive load rating. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 4.80 inches tall, 2.76 inches wide and 4.72 inches deep. It weighs 2.40 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards.
Manuals and Documentation
| Catalog Number | LC1DT60AB7 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Indonesia |
| Made in USA | No |
| Application | Resistive load |
| Coil Voltage | 24 V AC 50/60 Hz |
| Connection | Control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end;control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end;control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end;control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end;control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end;control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end;power circuit: EverLink BTR screw connectors 1 1-35 mm² - cable stiffness: flexible without cable end;power circuit: EverLink BTR screw connectors 2 1-25 mm² - cable stiffness: flexible without cable end;power circuit: EverLink BTR screw connectors 1 1-35 mm² - cable stiffness: flexible with cable end;power circuit: EverLink BTR screw connectors 2 1-25 mm² - cable stiffness: flexible with cable end;power circuit: EverLink BTR screw connectors 1 1-35 mm² - cabl |
| Contact Configuration | 1 NO + 1 NC;4 NO;Mechanically linked 1 NO + 1 NC IEC 60947-5-1;mirror contact 1 NC IEC 60947-4-1 |
| Mounting | Rail Plate |
| Special Features | Without built-in suppressor module |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=8694879&lang=en-us |
| GTIN | 03389119409247 |
| Item Type | Contactor |
