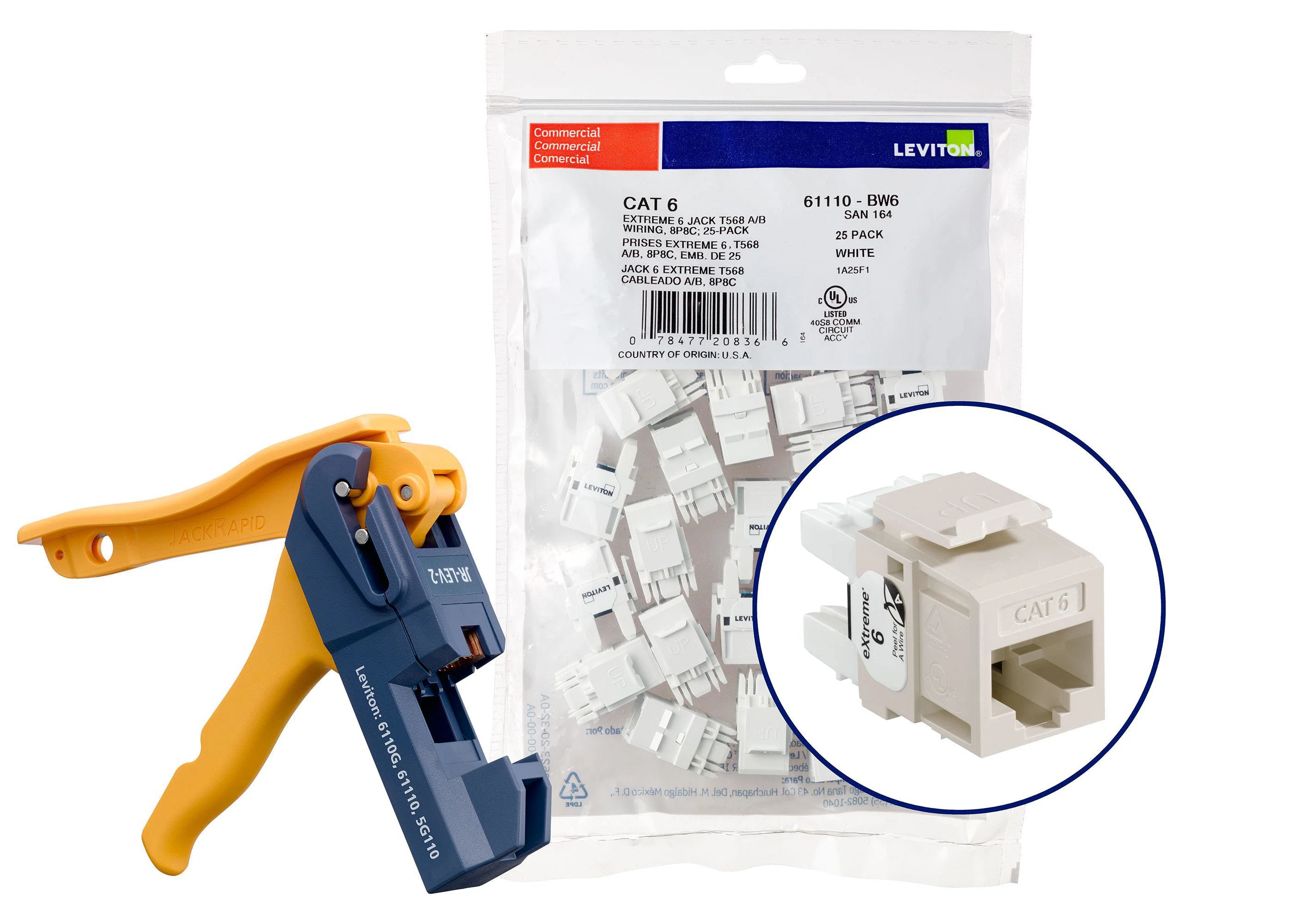

61110-JT6 eXtreme Component Rated UTP Connector With Jack Rapid Tool, Cat 6 Module, Plastic, Light Almond
- MFR:
- Leviton
- MFR #:
- 61110-JT6
- UPC:
- 078477388006
- Item #:
- 449766
61110-JT6 eXtreme Component Rated UTP Connector With Jack Rapid Tool, Cat 6 Module, Plastic, Light Almond
- MFR #:
- 61110-JT6
- UPC:
- 078477388006
- Item #:
- 449766
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
The connector shall meet or exceed the requirements for channel and component-level performance as described in ANSI/TIA-568-C.2 category 6 standards, as well as the class E requirements described in ISO/ IEC 11801. The connector shall be individual snap-in style. The connectors shall also be in compliance with all National Electrical Code, compliant with ANSI/ TIA-1096-A, UL listed and independently verified. In addition to category 6 compliance, the connector shall have the ability to support high megabit and shared sheath applications. All plastics used in construction of the connector bodies shall be fire retardant with a UL flammability rating of 94-V-0. Termination of all connectors shall be 110-type insulation displacement connectors (IDC). The connector shall provide a ledge directly adjacent to the 110-style termination against which the wires can be terminated and cut in one action by the installation craftsperson. Connector wiring is universal and will accommodate installation color codes for T568A and T568B wiring schemes. The termination field shall be in the rear for easy access. The connector shall fit in a variety of telecommunications wallplates, outlets and field configurable patch panels and patch blocks.
Manuals and Documentation
Features
- Terminates 26 to 22 AWG solid conductor
- Capable of multiple re-termination
- Gastight IDC connectors prevent corrosion
- Dual layer T568B/T568A wiring label simplifies punchdown
- Patented retention force technology protects tines from damage and increases system longevity
- Pair separation tower design facilitates separation of conductors and minimizes untwisting
- 180 deg configuration allows for rear termination
| Manufacturer Part Number | 61110-JT6 |
| Brand | LevitonĀ® |
| Manufacturer | Leviton |
| UPC | 078477388006 |
| Country Of Origin | US |
| Color | Light Almond |
| Dimensions | 0.89 in H x 0.64 in W x 1.21 in D |
| Material | Plastic |
| Type | Component Rated |
| Alternative Part Number | 13213293 |
| Manufacturer Item Status | Active |
| Country | USA |
| Warranty | Limited |
| Standards Approvals | ANSI/TIA-568-C.2/1096-A | cULus Listed | CSA Certified | IEC 11801 |
| Application | Voice, Data and Video Applications |
| Module Type | Cat 6 |
