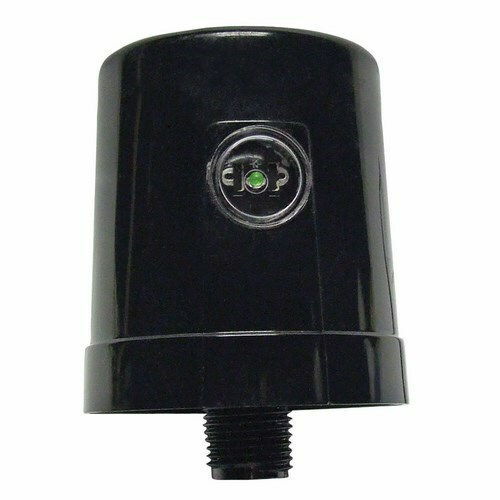

AG2401C3 Surge Protective Device, 120/240 V AC, 50/60 Hz, 1/2 Poles, 50 kA SCCR, 1 Phase
- MFR:
- Intermatic
- MFR #:
- AG2401C3
- UPC:
- 078275124431
- Item #:
- 44966
AG2401C3 Surge Protective Device, 120/240 V AC, 50/60 Hz, 1/2 Poles, 50 kA SCCR, 1 Phase
- MFR #:
- AG2401C3
- UPC:
- 078275124431
- Item #:
- 44966
Availability
| Location | Available Qty |
|---|---|
| Available | 1 |
The AG Series Surge Protective Devices (SPD) are designed for a variety of applications. Trusted, state-of-the-art TPMOV (Thermally Protected Metal Oxide Varistor) surge protection technology eliminates the potentially hazardous failure modes that are commonly associated with standard MOV technology. A green LED indicator provides status of protection. Type 1 applications include outdoor installations before service entrances and utility meter cabinets. Type 2 applications include installations after service entrances. Outdoor applications include irrigation equipment, farm equipment, pumps, lighting fixtures, traffic signaling devices, HVACR controls and motors. AG2401C3/AG48013/AG6503C3/AG6503L3 are UL Listed to ANSI/UL 1449, 3rd edition. AG2083C3/AG4803C3/AG2403C3 are CSA certified to ANSI/UL 1449, 3rd Edition.
Manuals and Documentation
| Catalog Number | AG2401C3 |
| Manufacturer | Intermatic |
| Brand | Intermatic |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | Outdoor - Irrigation Equipment, Farm Equipment, Pumps, Lighting Fixtures, Traffic Signaling Devices, HVACR Controls, Motors |
| Connection | 18 IN Lead |
| Material | Polycarbonate |
| Special Features | Features: LED Indicator provides Status; UV Resistant |
| Standard | CSA - UL 1449 3rd Edtion |
| UPC | 078275124431 |
| GTIN | 00078275124431 |
| Item Type | Type 1/Type 2 Surge Protective Device |
| Size | 1/2 IN, 12.7 MM |
| Operating Temperature | -13 to +140 DEG F, -25 to +60 DEG C |
| Type of Indicators | Green LED |
| Voltage Rating | 120/240 |
